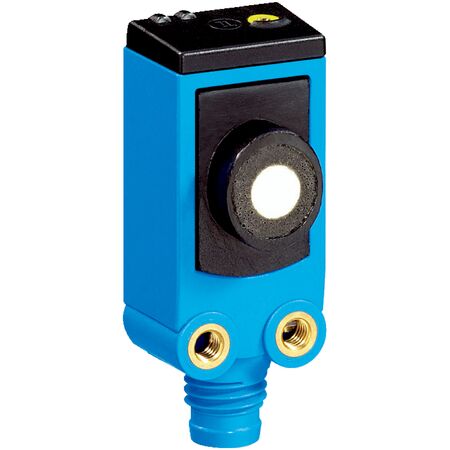

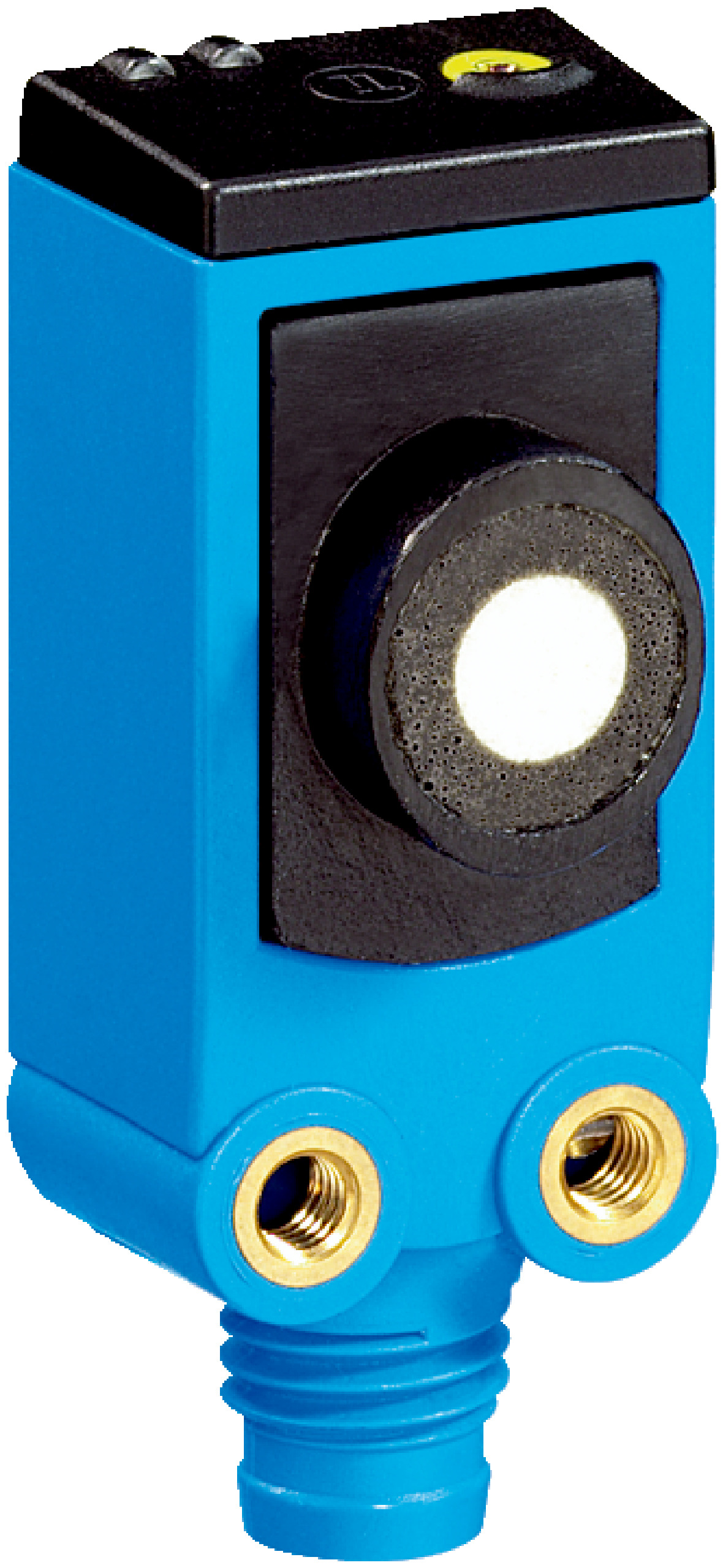

Ultrasonic Proximity Sensor UC4-13345 | 13 mm to 150 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Proximity Sensor UC4-13345 offers an operating range from 13 mm to 150 mm, extendable to 250 mm, with a high resolution of ≥ 0.1 mm and measurement accuracy of ± 1%. Ideal for industrial automation and object detection, this sensor features a fast response time of 24 ms and is housed in a robust IP65/IP67 rated enclosure, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 13 mm to 150 mm, extendable to 250 mm
- Resolution: ≥ 0.1 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 24 ms
- Switching frequency: 30 Hz
- Output time: 8 ms
- Ultrasonic frequency: 380 kHz
- Digital output: 1 NPN output, max current ≤ 200 mA
- Supply voltage: DC 15 V to 30 V
- Power consumption: ≤ 0.75 W
- Initialization time: < 300 ms
- Indication: 2 LEDs
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Plastic (ABS), ultrasonic transducer: polyurethane foam, glass epoxy resin
- Connection type: Male connector, M8, 3-pin
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 40mm x 17mm x 16mm
- Weight: 0.1 kg
Key Features
- Operating range from 13 mm to 150 mm, extendable to 250 mm
- High resolution of ≥ 0.1 mm and measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Temperature compensation for reliable performance
- Fast response time of 24 ms and switching frequency of 30 Hz
- IP65 / IP67 rated enclosure for robust protection
- NPN digital output with maximum current of ≤ 200 mA
- Compact rectangular design with plastic housing and polyurethane foam ultrasonic transducer
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration according to industrial safety standards.
Applications
- Industrial automation for object detection
- Measurement of natural objects within 13 mm to 150 mm range
- Use in environments requiring IP65/IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 0.75 W reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UC4-13345 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
