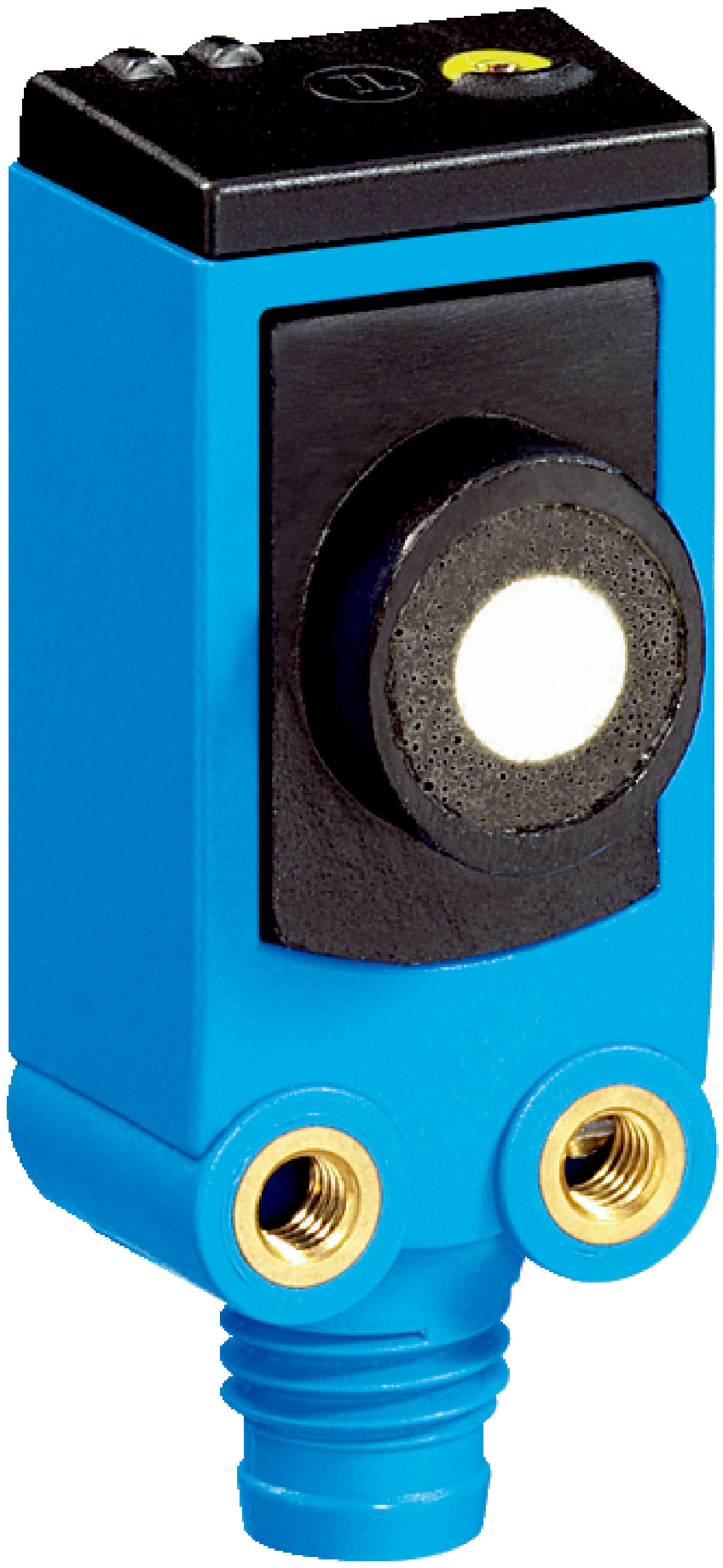

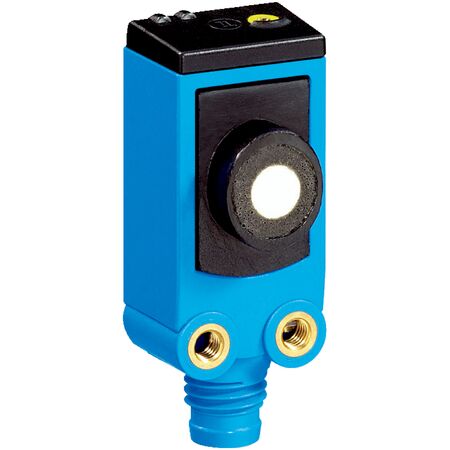

Ultrasonic Proximity Sensor UC4-13345S02 | 13mm to 150mm Range | IP65/IP67 Rated | by SICK
The Ultrasonic Proximity Sensor UC4-13345S02 offers an operating range from 13 mm to 150 mm, extendable to 250 mm, with a high resolution of ≥ 0.1 mm and measurement accuracy of ± 1%. Designed for industrial automation, this sensor is perfect for object detection and safety monitoring, featuring a robust IP65/IP67 enclosure to withstand harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 13 mm to 150 mm, extendable to 250 mm
- Resolution: ≥ 0.1 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 10 ms
- Switching frequency: 100 Hz
- Output time: 5 ms
- Ultrasonic frequency: 380 kHz
- Digital output: 1 NPN output, max current ≤ 200 mA
- Hysteresis: 2 mm
- Supply voltage: DC 15 V to 30 V
- Power consumption: ≤ 0.9 W
- Initialization time: < 300 ms
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Plastic (ABS), ultrasonic transducer: polyurethane foam, glass epoxy resin
- Connection type: Male connector, M8, 3-pin
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Temperature drift: 0.17% / K
- Dimensions (H x L x W): 40mm x 17mm x 16mm
- Weight: 0.1 kg
Key Features
- Operating range from 13 mm to 150 mm, extendable to 250 mm
- High resolution of ≥ 0.1 mm and measurement accuracy of ± 1%
- Fast response time of 10 ms and switching frequency of 100 Hz
- Adjustable operating modes including switching point, switching window, and background suppression
- Robust IP65/IP67 rated enclosure for harsh environments
- Low power consumption ≤ 0.9 W
- Equipped with 2 LEDs for status indication
- Safety parameters with MTTFD of 101 years and DCavg of 0%
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Measurement and positioning of natural objects
- Safety-related monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK UC4-13345S02 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
