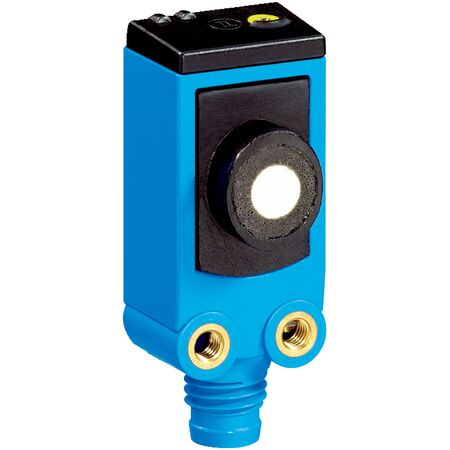

Ultrasonic Proximity Sensor UC4-1334B | 13mm to 150mm Range | High Resolution | IP65/IP67 Rated | by SICK
The Ultrasonic Proximity Sensor UC4-1334B is designed for precise object detection in industrial automation, featuring an operating range of 13 mm to 150 mm, extendable to 250 mm, and a high resolution of ≥ 0.1 mm. With temperature compensation and a robust IP65/IP67 enclosure, this sensor ensures reliable performance in demanding environments, making it ideal for process control and measurement applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 13 mm to 150 mm, extendable to 250 mm
- Resolution: ≥ 0.1 mm
- Repeatability: ± 0.15 %
- Measurement accuracy: ± 1 %
- Temperature compensation: Yes
- Response time: 24 ms
- Switching frequency: 30 Hz
- Output time: 8 ms
- Ultrasonic frequency: 380 kHz
- Digital output: 1 push-pull (PNP/NPN), max 100 mA
- Hysteresis: 2 mm
- Supply voltage: DC 15 V to 30 V
- Power consumption: ≤ 0.75 W
- Initialization time: < 300 ms
- Indication: 2 LEDs
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male connector, M8, 3-pin
- Dimensions (H x L x W): 40mm x 17mm x 16mm
- Weight: 0.1 kg
Key Features
- Operating range from 13 mm to 150 mm, extendable to 250 mm
- High resolution of ≥ 0.1 mm
- Repeatability of ± 0.15 %
- Measurement accuracy of ± 1 %
- Temperature compensation included
- Response time of 24 ms and switching frequency of 30 Hz
- Adjustable operating modes including switching point, switching window, and background suppression
- IO-Link V1.1 interface for process data, parameterization, diagnosis, and data storage
- Push-pull digital output (PNP/NPN) with maximum output current ≤ 100 mA
- Enclosure rating IP65 / IP67 for robust protection
- Compact rectangular design with plastic housing
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of IO-Link and sensor parameters.
Applications
- Industrial automation for object detection
- Measurement of natural objects in manufacturing
- Process control requiring precise distance measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 0.75 W reduces energy usage
- Durable IP65/IP67 rated housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK UC4-1334B Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
