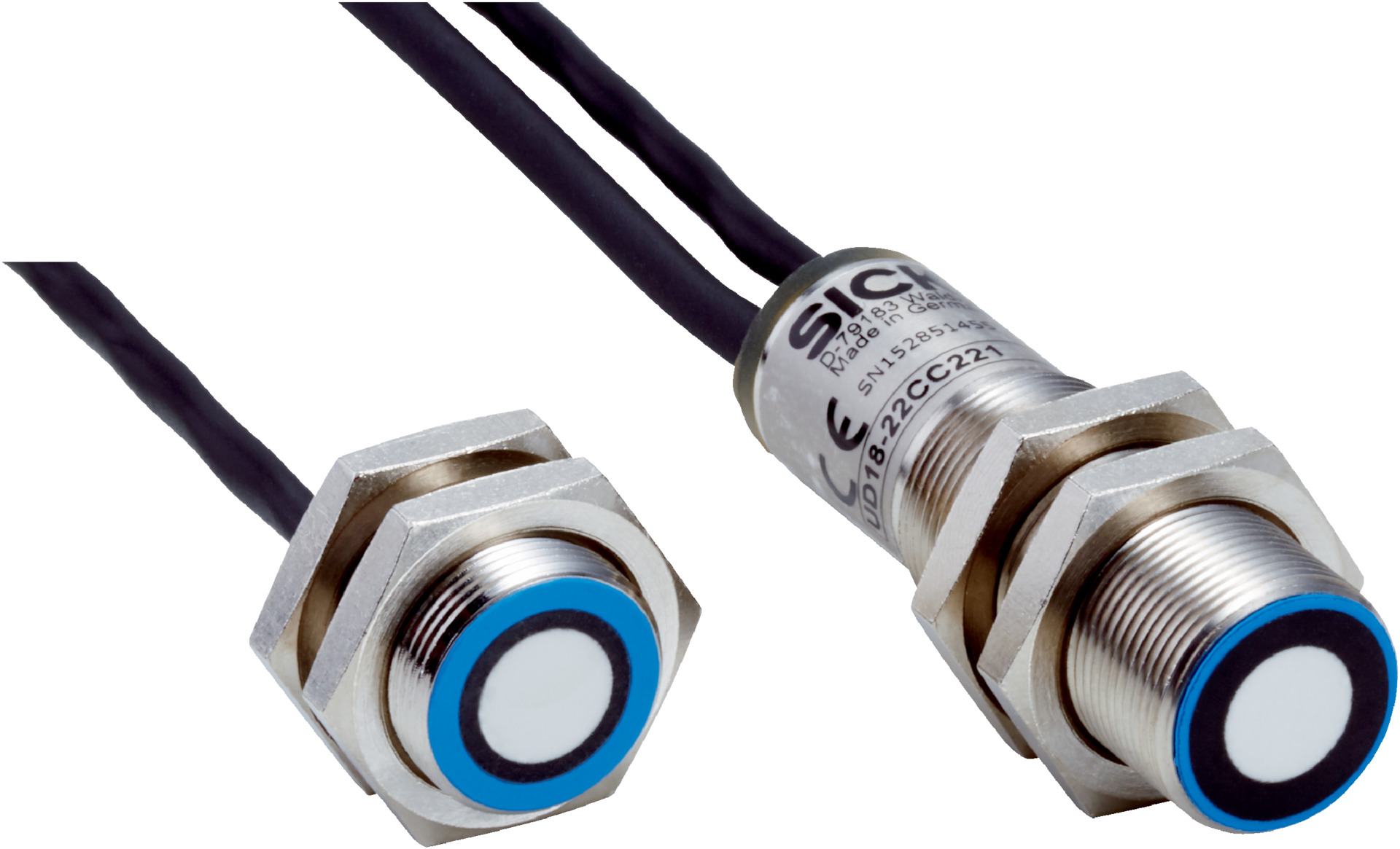

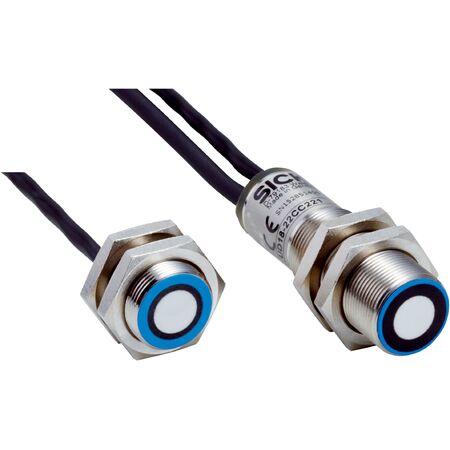

Ultrasonic Proximity Sensor UD18-22CC241 | 20-60mm Installation Distance | IP65 Rated | by SICK
The Ultrasonic Proximity Sensor UD18-22CC241 is designed for precise detection of natural objects, including paper and plastic sheets, with an installation distance ranging from 20 mm to 60 mm. Featuring a fast response time of 2.5 ms and three selectable sensitivity levels, this sensor is perfect for industrial automation and quality control applications, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Installation distance: 20 mm to 60 mm, default 40 mm ± 3 mm
- Target: Natural objects including paper (20 g/m² to 2000 g/m²), plastic sheets ≤ 0.4 mm, self-adhesive films, metal sheets ≤ 0.3 mm, corrugated cardboard (single wall F, N, G flute sizes), Washi, Wafer PCB
- Resolution: 1 material layer
- Response time: 2.5 ms
- Switching frequency: 250 Hz
- Output time: 2 ms, trigger mode < 0.5 ms
- Ultrasonic frequency: 400 kHz
- Additional functions: 3 selectable sensitivity levels, teach-in up to 4 sensitivity levels, sensitivity changeover during operation, parameter setting via Connect+ Software
- Blind zone: 7 mm from sender and receiver
- Permissible angle deviation: ± 45° perpendicular to material layer
- Digital outputs: 2 NPN switching outputs (Q1: double layer, Q2: single/no layer, normally closed), max output current ≤ 200 mA
- Control inputs: 3
- Supply voltage: DC 20 V to 30 V
- Power consumption: ≤ 1.5 W
- Initialization time: < 750 ms
- Display: 2 LEDs
- Enclosure rating: IP65
- Protection class: III
- Housing material: Metal (nickel-plated brass, PBT/PA), ultrasonic transducer polyurethane foam, glass epoxy resin
- Connection type: Connection cable with open end 7 x 0.25 mm², 2 m PUR; sender and receiver cables with M8 connectors
- Dimensions (H x L x W): 18mm x 63.2mm x 18mm
- Weight: 0.13 kg
Key Features
- Installation distance from 20 mm to 60 mm with default setting at 40 mm ± 3 mm
- Detects single material layers with high resolution
- Fast response time of 2.5 ms and switching frequency of 250 Hz
- Three selectable sensitivity levels with teach-in for up to 4 individual sensitivity levels
- Sensitivity level changeover during operation
- Set parameters via Connect+ Software
- Blind zone of 7 mm from sender and receiver
- Permissible angle deviation ± 45° perpendicular to material layer
- Digital outputs with NPN type switching for double and single/no layer detection
- Supply voltage DC 20 V to 30 V with power consumption ≤ 1.5 W
- Enclosure rating IP65 for protection against dust and water
- Robust cylindrical metal housing with nickel-plated brass and polyurethane foam ultrasonic transducer
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensor setup and electrical connections to ensure proper operation and safety.
Applications
- Detection of natural objects including paper, plastic sheets, foils, self-adhesive films, metal sheets, corrugated cardboard, Washi, Wafer PCB
- Industrial automation for material layer detection
- Quality control and packaging processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.5 W reduces energy usage
- Durable metal housing extends product lifespan, reducing waste
- Non-contact detection minimizes wear and tear on materials
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UD18-22CC241 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and material detection applications.
