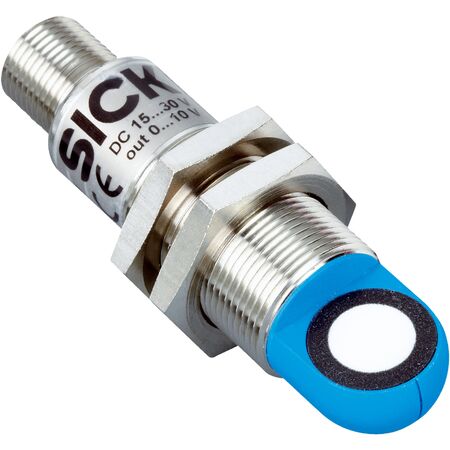

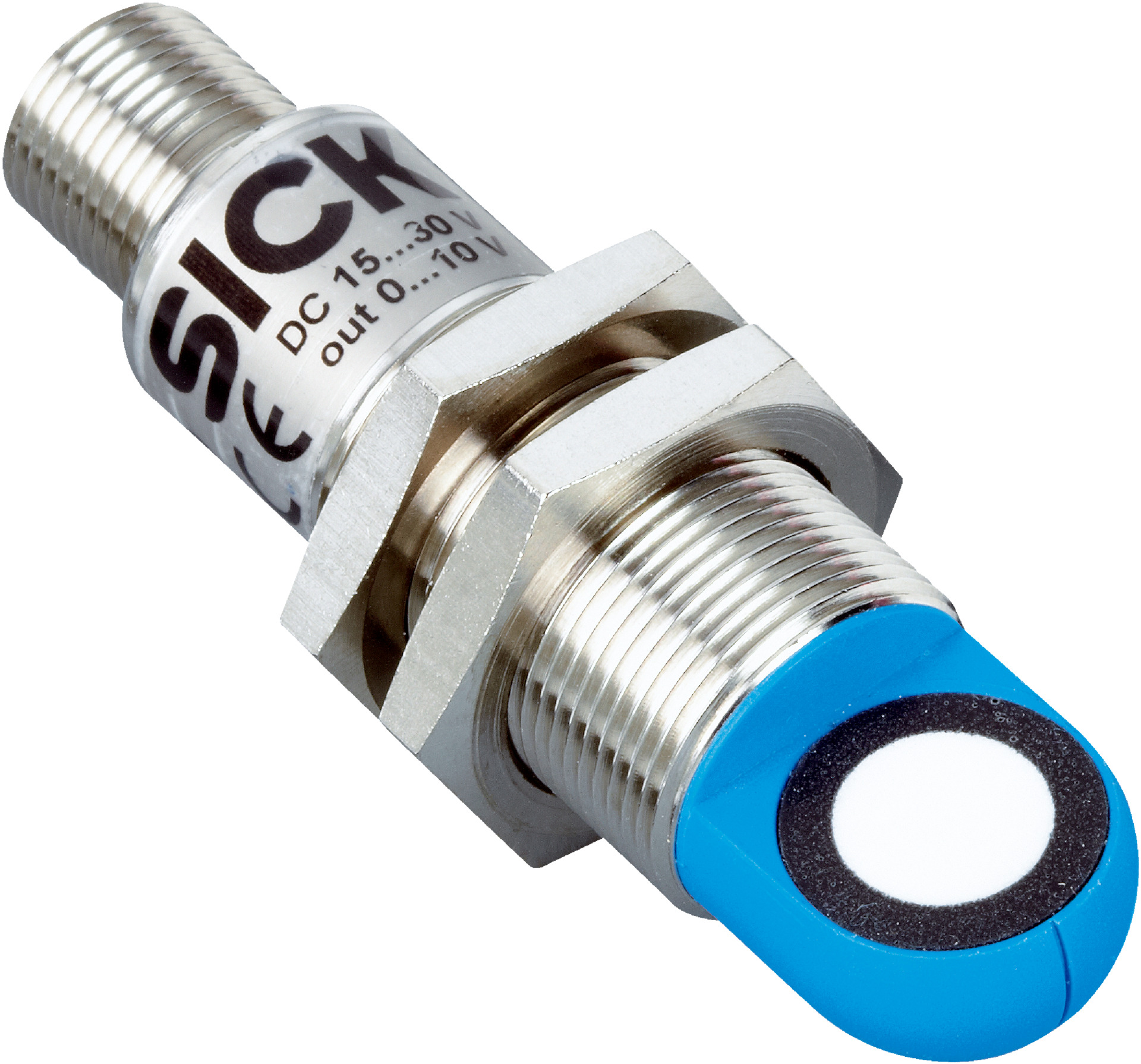

Ultrasonic Proximity Sensor UM18-212127112 | 65 mm to 600 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Proximity Sensor UM18-212127112 is designed for precise object detection and measurement, featuring an operating range from 65 mm to 350 mm, extendable to 600 mm. With a high resolution of ≥ 0.069 mm and a robust IP65/IP67 rated metal housing, this sensor is perfect for industrial automation and safety monitoring in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 65 mm to 350 mm, extendable to 600 mm
- Target: Natural objects
- Resolution: ≥ 0.069 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Temperature compensation: Yes
- Response time: 64 ms
- Output time: 16 ms
- Ultrasonic frequency: 400 kHz
- Analog output: 1 voltage output, 0 V to 10 V, ≥ 100,000 Ω, 12 bit resolution
- Multifunctional input: 1 x MF for external teach, synchronization, multiplexing
- Supply voltage: DC 15 V to 30 V
- Power consumption: ≤ 1.2 W
- Initialization time: < 300 ms
- Display: 2 x LED
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Metal (nickel-plated brass), ultrasonic transducer: polyurethane foam, glass epoxy resin
- Connection type: Male connector, M12, 5-pin
- Thread size: M18 x 1
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 18mm x 69mm x 18mm
- Weight: 0.1 kg
Key Features
- Operating range from 65 mm to 350 mm, extendable to 600 mm
- High resolution of ≥ 0.069 mm
- Repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation included
- Fast response time of 64 ms and output time of 16 ms
- Ultrasonic frequency of 400 kHz
- Multifunctional input for external teach, synchronization, and multiplexing
- Synchronization and multiplexing support for up to 20 sensors without cross talk
- Robust metal housing with IP65/IP67 protection rating
- LED display for status indication
- Supply voltage range DC 15 V to 30 V with low power consumption ≤ 1.2 W
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection and measurement
- Natural object detection in manufacturing processes
- Safety-related monitoring in machinery
- Environmental sensing in harsh conditions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable metal housing extends product lifespan, reducing waste
- Supports synchronization to minimize interference and improve sensor efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UM18-212127112 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
