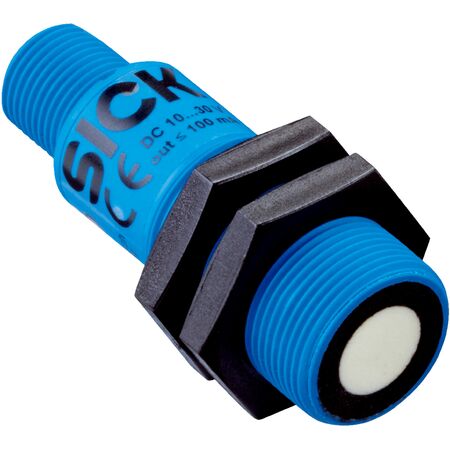

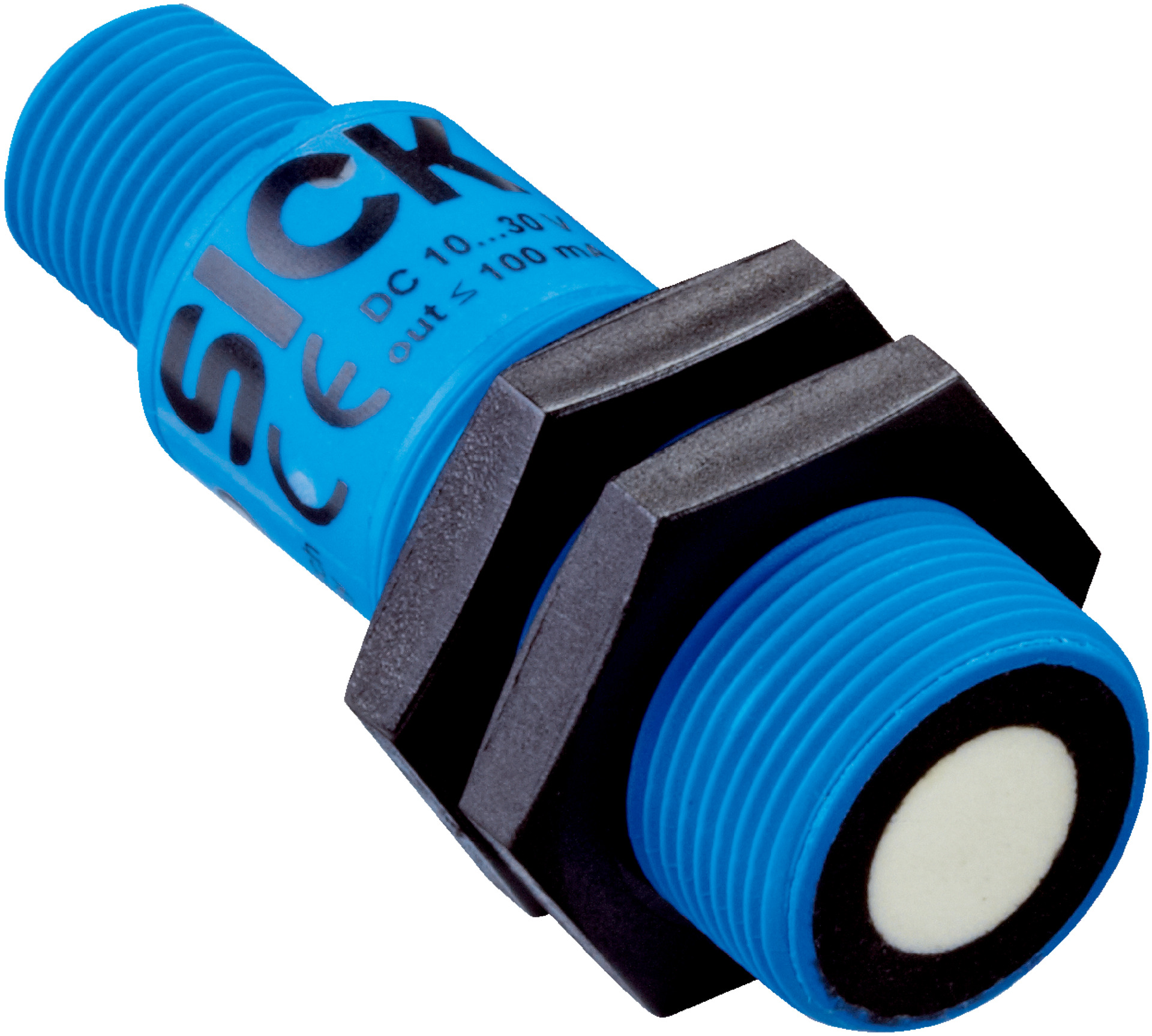

Ultrasonic Proximity Sensor UM18-212166101 | 65 mm to 350 mm Range | 0.2 mm Resolution | IP65/IP67 Rated | by SICK
The Ultrasonic Proximity Sensor UM18-212166101 is designed for precise distance measurement and object detection, featuring an operating range of 65 mm to 350 mm, extendable to 600 mm. With a high resolution of ≥ 0.2 mm and an impressive repeatability of ± 0.15%, this sensor is perfect for industrial automation and safety monitoring applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 65 mm to 350 mm, extendable to 600 mm
- Target: Natural objects
- Resolution: ≥ 0.2 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 64 ms
- Output time: 16 ms
- Ultrasonic frequency: 400 kHz
- Analog output: 4 mA to 20 mA current output, 12-bit resolution
- Supply voltage: DC 10 V to 30 V
- Power consumption: ≤ 1.2 W
- Initialization time: < 300 ms
- Display: 2 x LED
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Plastic (PBT), ultrasonic transducer: polyurethane foam, glass epoxy resin
- Connection type: Male connector, M12, 4-pin
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Temperature drift: 0.17% / K
- Dimensions (H x L x W): 18mm x 53mm x 18mm
- Weight: 0.1 kg
Key Features
- Operating range from 65 mm to 350 mm, extendable to 600 mm
- High resolution of ≥ 0.2 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Fast response time of 64 ms and output time of 16 ms
- Ultrasonic frequency of 400 kHz
- Analog current output (4 mA to 20 mA) with 12-bit resolution
- IP65 / IP67 rated enclosure for robust protection
- Operating temperature range from -25 °C to +70 °C
- Includes teach-in function for analog output and reset to factory default
- Safety-related parameters with MTTFD of 101 years and DCavg 0%
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing processes
- Safety-related monitoring in machinery and equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 1.2 W reduces energy usage
- Durable IP65/IP67 housing extends product life and reduces waste
- Supports safety-related parameters enhancing operational safety and reducing risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UM18-212166101 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
