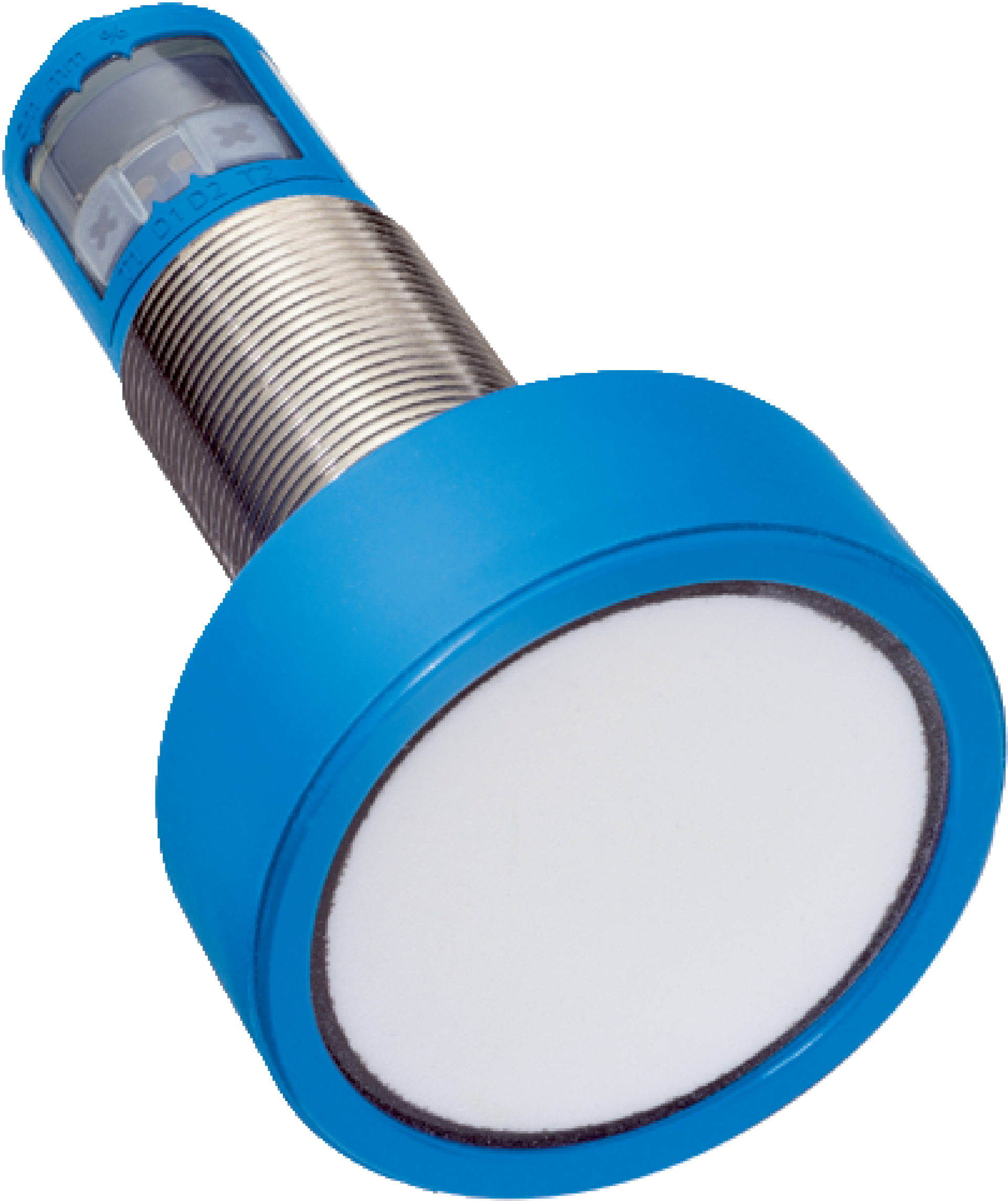

Ultrasonic Sensor | 600 mm to 8,000 mm Range | High Resolution & Accuracy | IP65/IP67 Rated | by SICK
The Ultrasonic Sensor offers an impressive operating range from 600 mm to 8,000 mm, with a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%. Perfect for industrial automation, this sensor is designed for object detection and distance measurement, ensuring reliable performance in various applications, including material handling and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Distance Sensor, Ultrasonic Proximity Sensor, Long Range Ultrasonic Sensor, Industrial Ultrasonic Sensor
Technical Specifications
- Operating range: 600 mm to 6,000 mm, extendable to 8,000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 240 ms
- Switching frequency: 3 Hz
- Ultrasonic frequency: 80 kHz
- Digital output: 1 PNP output, max 200 mA
- Analog output: 4-20 mA or 0-10 V, 12-bit resolution
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection: Male M12, 5-pin connector
- Operating temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 65mm x 105mm x 65mm
- Weight: 0.27 kg
Key Features
- Operating range from 600 mm up to 8,000 mm
- High resolution of ≥ 0.18 mm and measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- Automatic selection of analog current or voltage output
- Robust metal housing with IP65/IP67 protection rating
- Temperature compensation for reliable measurements
- LED display with two LEDs for status indication
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Material handling and packaging systems
- Level measurement in tanks and silos
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor lifespan
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Robust design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

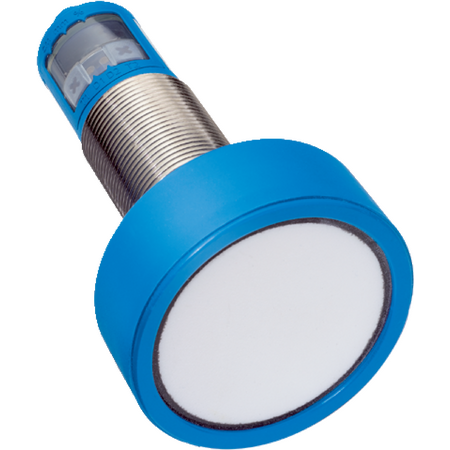

The SICK UM30-215118 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
