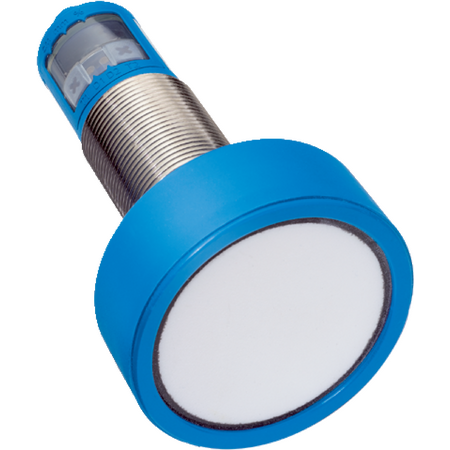

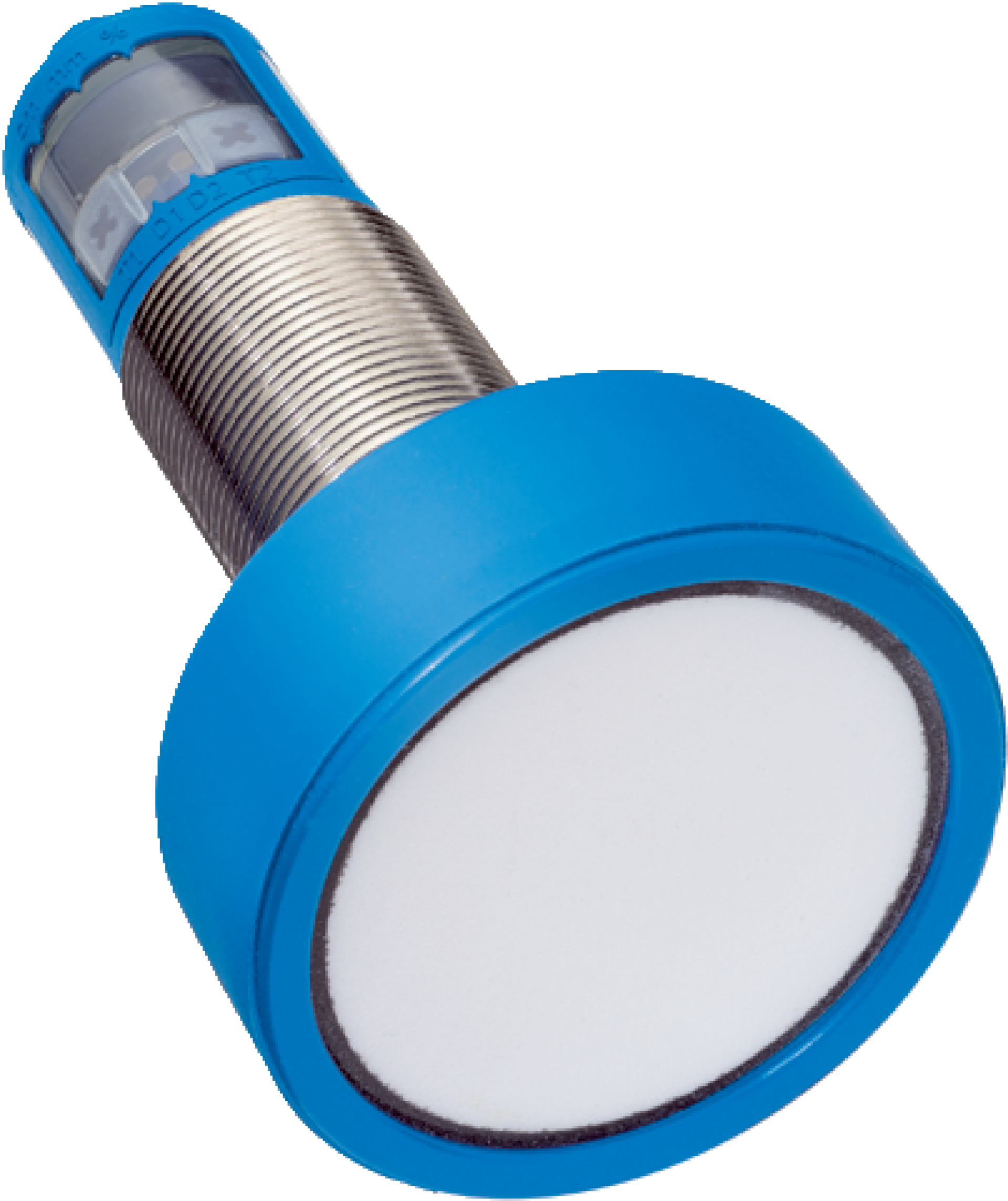

Ultrasonic Sensor | 600 mm to 8,000 mm Range | High Resolution & Accuracy | IP65/IP67 Rated | by SICK
The Ultrasonic Sensor offers an impressive operating range from 600 mm to 8,000 mm, making it ideal for industrial automation and distance measurement applications. With a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%, this sensor ensures reliable performance in various environments. Its robust IP65/IP67 rated enclosure provides protection against dust and water, making it perfect for challenging conditions in manufacturing and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Distance Sensor, Ultrasonic Proximity Sensor, Long Range Ultrasonic Sensor, Industrial Ultrasonic Sensor
Technical Specifications
- Operating range: 600 mm to 6,000 mm or 8,000 mm
- Target: Natural objects
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 240 ms
- Output time: 60 ms
- Ultrasonic frequency: 80 kHz
- Analog output: 4 mA to 20 mA current or 0 V to 10 V voltage, 12-bit resolution
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection: Male M12, 5-pin connector
- Thread size: M30 x 1.5
- Dimensions (H x L x W): 65mm x 105mm x 65mm
- Weight: 0.27 kg
Key Features
- Operating range from 600 mm up to 8,000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation for reliable measurements
- Automatic selection of analog current or voltage output
- Synchronization of up to 50 sensors without cross talk
- IP65 / IP67 rated enclosure for robust protection
- LED display with two LEDs for status indication
- Metal housing with nickel-plated brass and polyurethane foam ultrasonic transducer
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Level measurement in tanks and silos
- Robotics and material handling systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor life
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Robust design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UM30-215113 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation, safety, and measurement applications.
