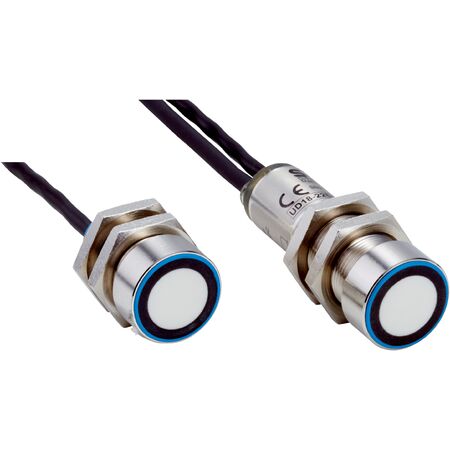

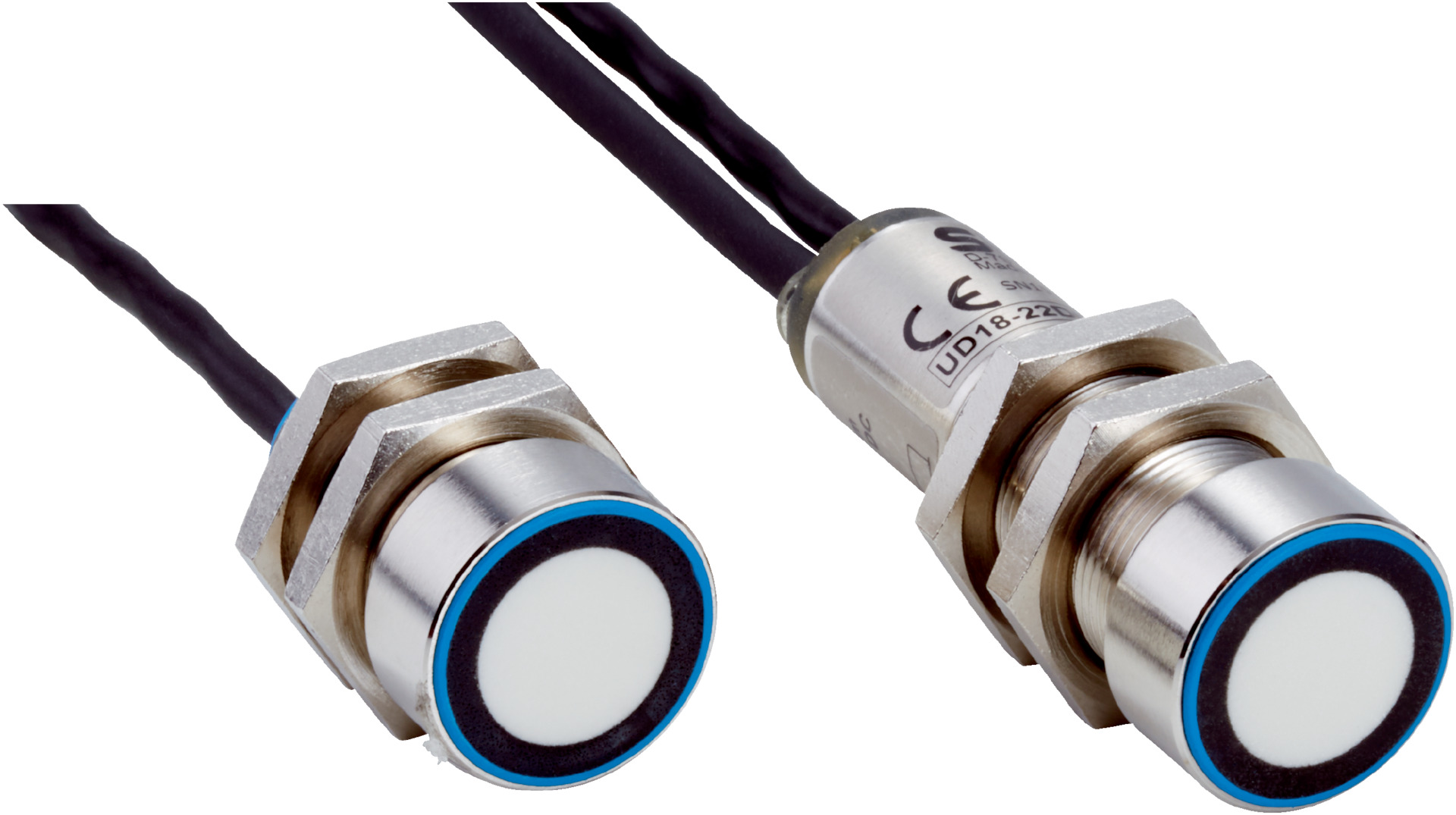

Ultrasonic Sensor M18 | 30mm to 70mm Installation Distance | IP65 Rated | 200 kHz Frequency | by SICK
The Ultrasonic Sensor M18 is designed for precise detection of natural objects, featuring an installation distance of 30mm to 70mm and a fast response time of 5.5 ms. With an IP65 rated enclosure, it's perfect for industrial automation and quality control applications, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Installation distance: 30 mm to 70 mm (default 50 mm ± 3 mm)
- Target: Natural objects
- Resolution: 1 material layer
- Response time: 5.5 ms
- Switching frequency: 100 Hz
- Output time: 5 ms, trigger mode < 0.5 ms
- Ultrasonic frequency: 200 kHz
- Sensitivity: 3 selectable levels, teach-in up to 4 levels
- Blind zone: 7 mm from sender and receiver
- Permissible angle deviation: ± 45°
- Detectable materials: Paper (100-2000 g/m²), metal-laminated sheets ≤ 5 mm, self-adhesive films ≤ 2 mm, corrugated cardboard (single wall F, N, G flute), Washi, Wafer PCB
- Digital outputs: 2 NPN switching outputs (Q1 double layer, Q2 single/no layer, normally closed)
- Max output current: ≤ 200 mA
- Supply voltage: DC 20 V to 30 V
- Power consumption: ≤ 1.5 W
- Initialization time: < 750 ms
- Display: 2 LEDs
- Enclosure rating: IP65
- Protection class: III
- Housing material: Metal (nickel-plated brass, PBT/PA), ultrasonic transducer: polyurethane foam, glass epoxy resin
- Connection: Connection cable with open end 7 x 0.25 mm², 2 m PUR; sender and receiver cables with M8 connectors
- Dimensions (H x L x W): 18mm x 64mm x 18mm
- Weight: 0.16 kg
Key Features
- Installation distance from 30 mm to 70 mm with default setting at 50 mm ± 3 mm
- Detects natural objects with resolution of 1 material layer
- Fast response time of 5.5 ms and switching frequency of 100 Hz
- Ultrasonic frequency typically 200 kHz
- 3 selectable sensitivity levels with teach-in for up to 4 individual sensitivity levels
- Sensitivity level changeover during operation
- Set parameters via Connect+ Software
- Blind zone of 7 mm from sender and receiver
- Permissible angle deviation ± 45° perpendicular to material layer
- Digital NPN outputs with max current ≤ 200 mA
- IP65 rated enclosure for protection
- Operating temperature range +5 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensor wiring and configuration to ensure proper operation and compliance with electrical standards.
Applications
- Detection of natural objects including paper, metal-laminated sheets, self-adhesive films, corrugated cardboard, and PCB materials
- Industrial automation for material layer detection
- Quality control and packaging processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact detection reduces wear and tear, extending sensor life and reducing waste
- Energy-efficient operation with low power consumption (≤ 1.5 W)
- Durable IP65 rated housing reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UD18-22DC241 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and material detection applications.
