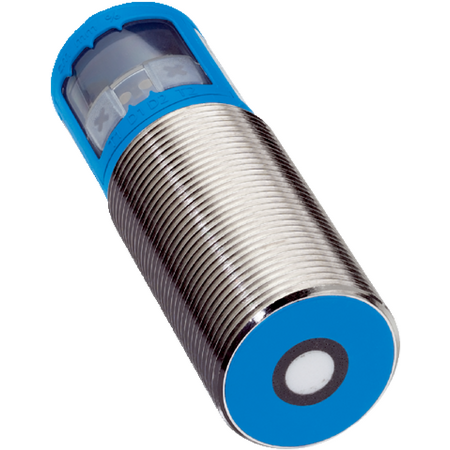

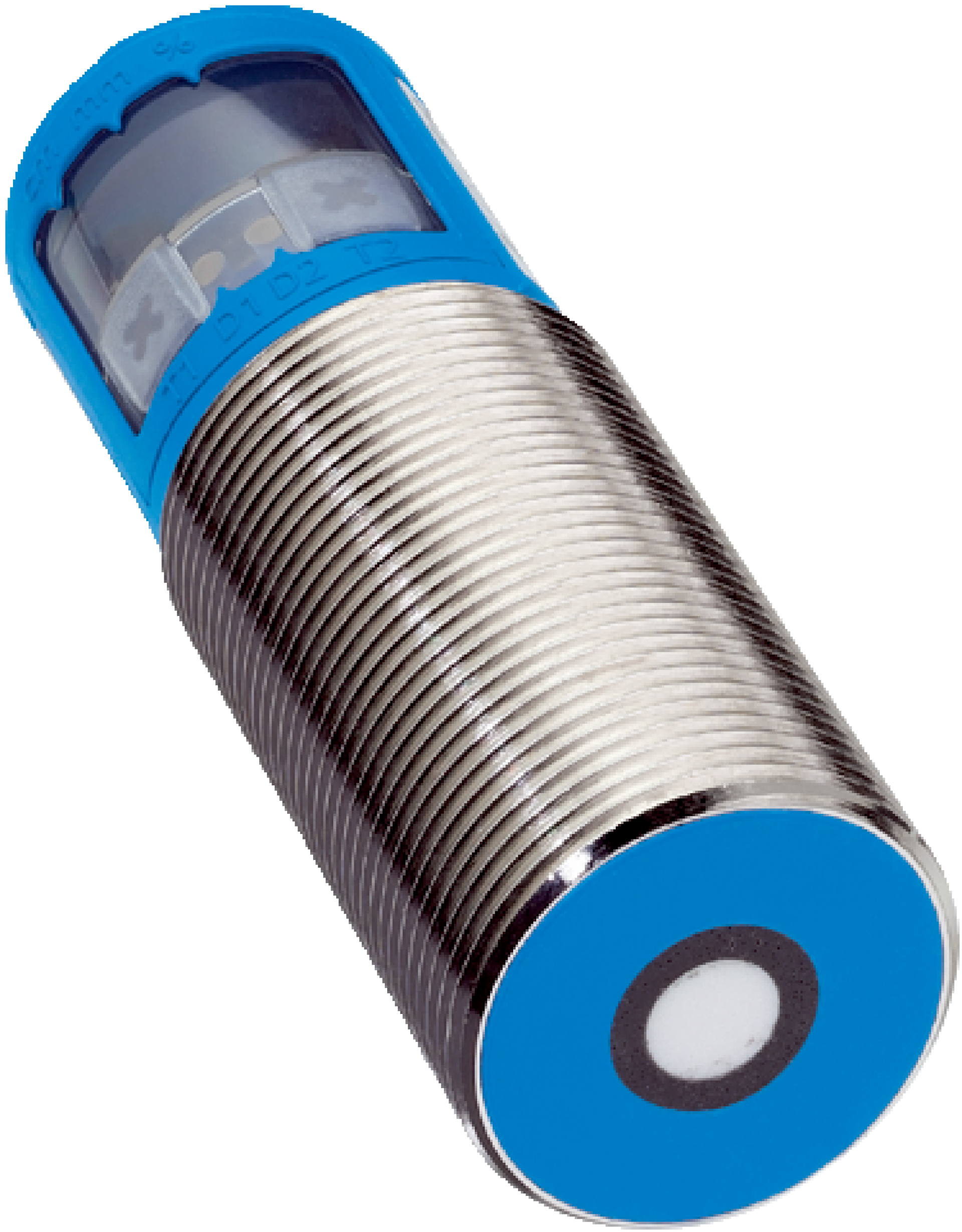

Ultrasonic Sensor SICK UM30-213113 | 200 mm to 2000 mm Range | IP65/IP67 Rated | by SICK
The Ultrasonic Sensor SICK UM30-213113 offers an impressive operating range from 200 mm to 2000 mm, making it ideal for industrial automation and robotics applications. With high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%, this sensor ensures reliable distance measurement and object detection. Its robust IP65/IP67 rated enclosure protects against dust and water, ensuring durability in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Distance Sensor, Ultrasonic Proximity Sensor, Industrial Ultrasonic Sensor, SICK UM30 Sensor
Technical Specifications
- Operating range: 200 mm to 1300 mm, extendable to 2000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Ultrasonic frequency: 200 kHz
- Response time: 92 ms
- Output time: 23 ms
- Analog output: 4 mA to 20 mA current or 0 V to 10 V voltage, 12-bit resolution
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Connection type: Male connector, M12, 5-pin
- Thread size: M30 x 1.5
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 30mm x 84mm x 30mm
- Weight: 0.15 kg
Key Features
- Operating range from 200 mm to 1300 mm, extendable to 2000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation for reliable performance
- Fast response time of 92 ms and output time of 23 ms
- Automatic selection of analog current or voltage output
- Synchronization of up to 50 sensors without cross talk
- IP65 / IP67 rated enclosure for dust and water protection
- LED display with two LEDs for status indication
- Robust metal housing with nickel-plated brass and polyurethane foam
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, calibration, and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Robotics and manufacturing process control
- Level measurement in tanks and silos
- Safety and monitoring systems in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor life
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Robust design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UM30-213113 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation, robotics, and safety monitoring applications.
