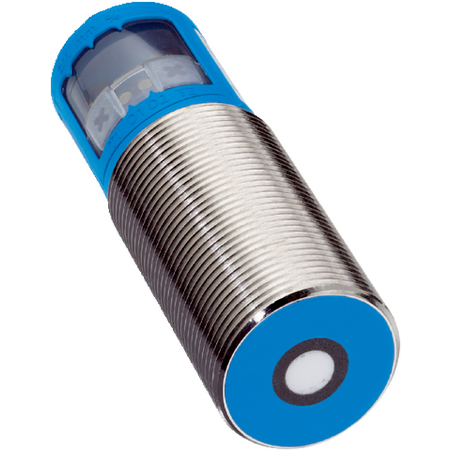

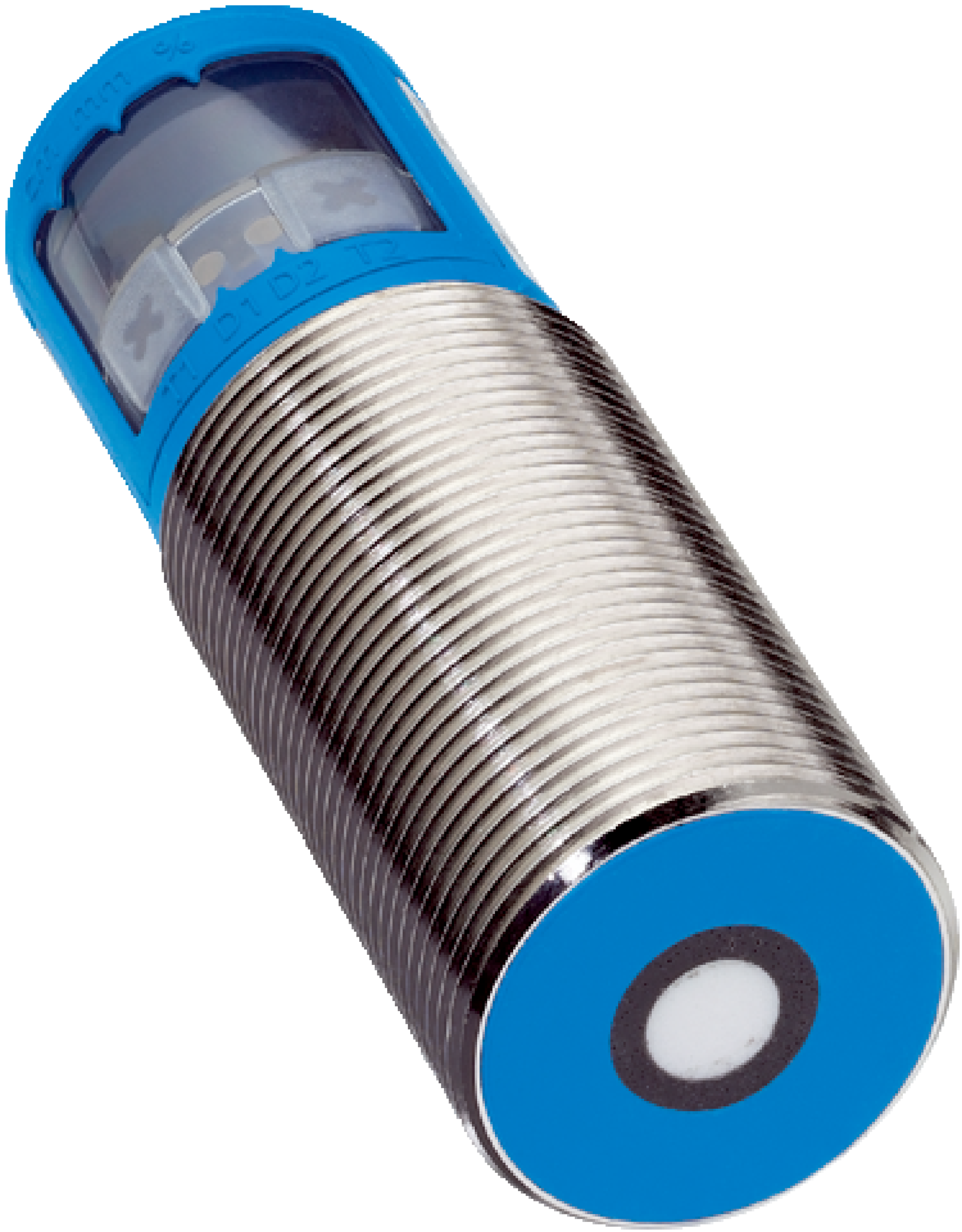

Ultrasonic Sensor SICK UM30-213115 | 200 mm to 2000 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The SICK UM30-213115 Ultrasonic Sensor offers an impressive operating range from 200 mm to 2000 mm, making it ideal for industrial automation and precise object detection. With a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%, this sensor ensures reliable performance in various environments. Its robust metal housing and IP65/IP67 rating provide durability, while temperature compensation enhances functionality in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Distance Sensor, Ultrasonic Proximity Sensor, Industrial Ultrasonic Sensor, SICK UM30 Sensor
Technical Specifications
- Operating range: 200 mm to 1300 mm, extendable to 2000 mm
- Target: Natural objects
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Temperature compensation included
- Response time: 92 ms
- Switching frequency: 8 Hz
- Output time: 23 ms
- Ultrasonic frequency: 200 kHz
- Digital output: 1 x NPN, max current ≤ 200 mA
- Multifunctional input: 1 x MF
- Hysteresis: 20 mm
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Initialization time: < 300 ms
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Connection type: Male connector, M12, 5-pin
- Thread size: M30 x 1.5
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 30mm x 84mm x 30mm
- Weight: 0.15 kg
Key Features
- Operating range from 200 mm to 1300 mm, extendable to 2000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation for reliable performance
- Fast response time of 92 ms and switching frequency of 8 Hz
- Adjustable operating modes and digital output settings
- Synchronization capability for up to 50 sensors without cross talk
- Robust metal housing with IP65/IP67 protection rating
- LED display with 2 LEDs for status indication
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing processes
- Use in environments requiring precise ultrasonic sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending device lifespan
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Robust design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UM30-213115 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
