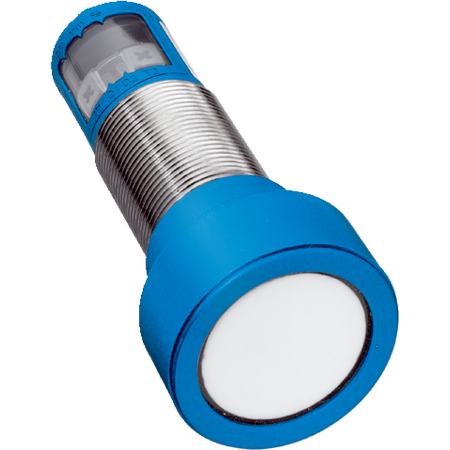

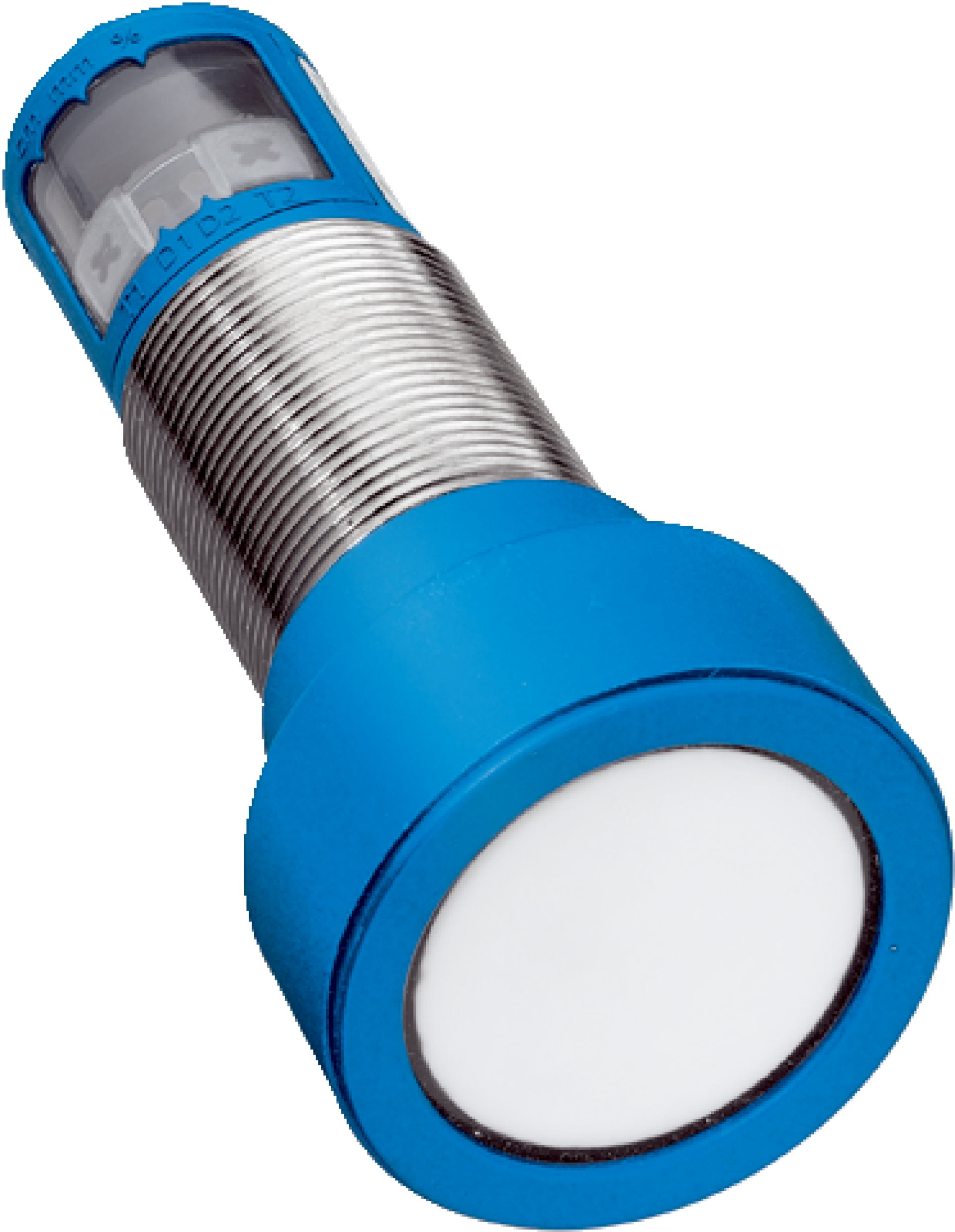

Ultrasonic Sensor SICK UM30-214111 | 350 mm to 5,000 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The SICK UM30-214111 Ultrasonic Sensor offers an impressive operating range from 350 mm to 5,000 mm, making it perfect for industrial automation and distance measurement applications. With a high resolution of ≥ 0.18 mm and an accuracy of ± 1%, this sensor ensures reliable performance in harsh environments. Its robust IP65/IP67 rated housing and fast response time of 180 ms make it ideal for safety and monitoring tasks in various industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Distance Sensor, Ultrasonic Proximity Sensor, Industrial Ultrasonic Sensor, SICK UM30 Sensor
Technical Specifications
- Operating range: 350 mm to 3,400 mm, extendable to 5,000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 180 ms
- Switching frequency: 4 Hz
- Ultrasonic frequency: 120 kHz
- Digital output: 1 PNP output, max 200 mA
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male M12, 5-pin connector
- Housing material: Nickel-plated brass, PBT, polyurethane foam, glass epoxy resin
- Operating temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 47.5mm x 102mm x 47.5mm
- Weight: 0.21 kg
Key Features
- Operating range from 350 mm to 3,400 mm and up to 5,000 mm
- High resolution of ≥ 0.18 mm and measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- Robust metal housing with IP65/IP67 protection rating
- LED display with two LEDs for status indication
- Temperature compensation for reliable measurements
- Fast response time of 180 ms and switching frequency of 4 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Level measurement in tanks and silos
- Positioning and presence detection in manufacturing processes
- Safety and monitoring in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor life
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Robust design minimizes waste and replacement frequency
Warranty Information
Warranty details available from the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK UM30-214111 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation, safety, and measurement applications.
