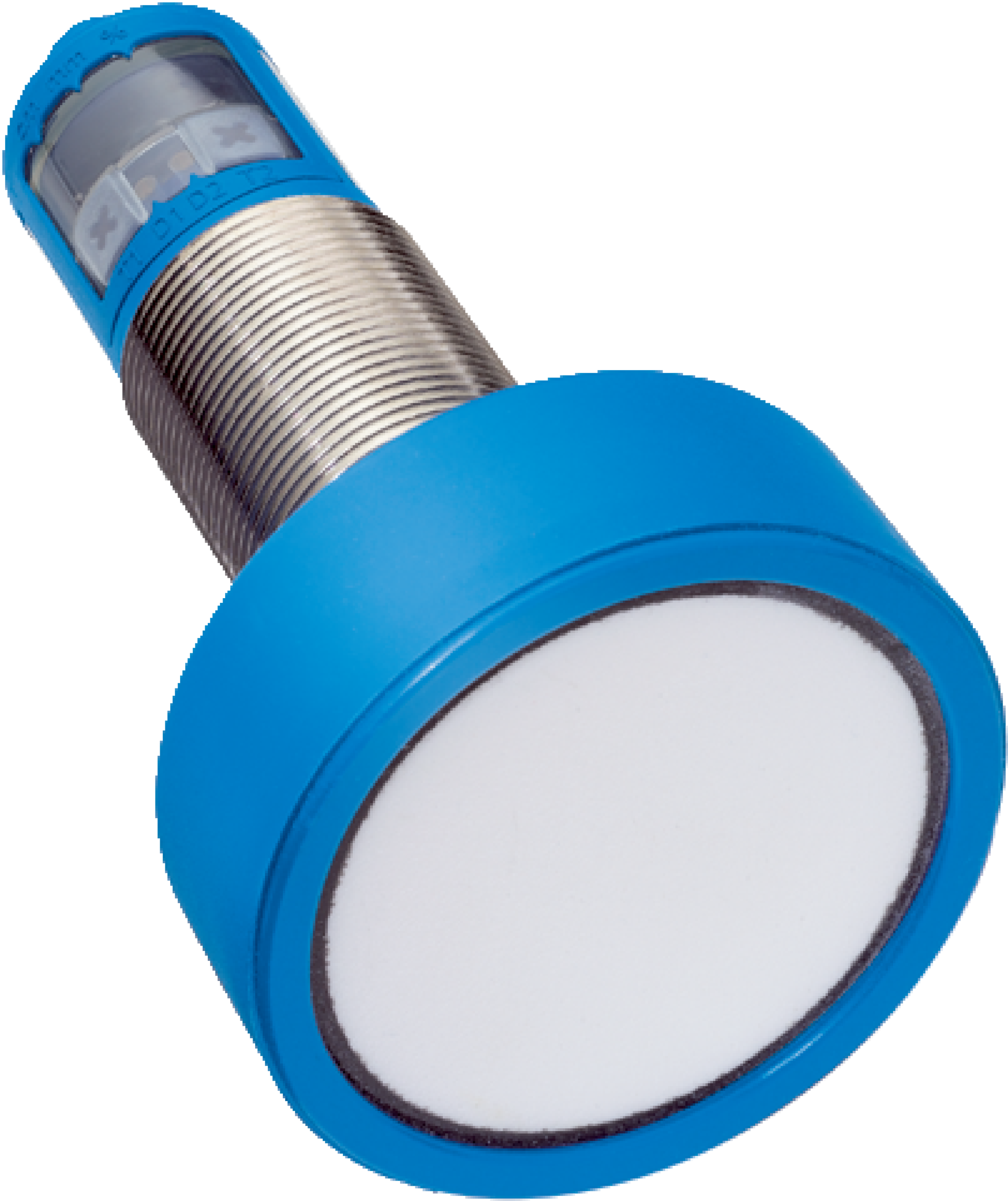

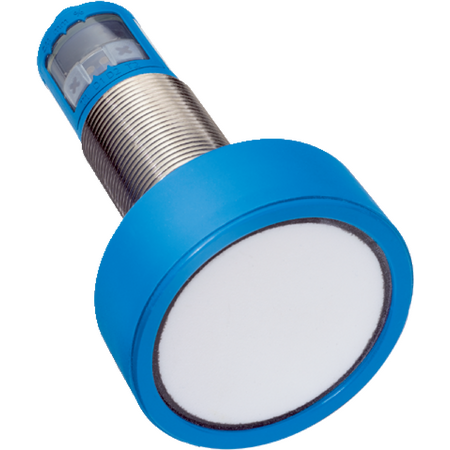

Ultrasonic Sensor SICK UM30-215111 | 600mm to 8000mm Range | IP65/IP67 Rated | by SICK
The SICK UM30-215111 Ultrasonic Sensor offers an impressive operating range from 600 mm to 8,000 mm, making it perfect for industrial automation and robotics applications. With a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%, this sensor ensures precise distance measurement and object detection. Its robust IP65/IP67 rated enclosure guarantees reliable performance in challenging environments, making it an ideal choice for material handling and level measurement tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Distance Sensor, Ultrasonic Proximity Sensor, Industrial Ultrasonic Sensor, SICK UM30 Sensor
Technical Specifications
- Operating range: 600 mm to 6,000 mm, extendable to 8,000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 240 ms
- Switching frequency: 3 Hz
- Ultrasonic frequency: 80 kHz
- Digital output: 1 PNP, max 200 mA
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Connection type: Male M12, 5-pin connector
- Dimensions (H x L x W): 65mm x 105mm x 65mm
- Weight: 0.27 kg
Key Features
- Operating range from 600 mm to 6,000 mm and up to 8,000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation for reliable performance
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors without cross talk
- IP65 / IP67 rated enclosure for robust protection
- LED display with 2 LEDs for status indication
- Supply voltage range DC 9 V to 30 V
- Output: 1 PNP digital output with max current ≤ 200 mA
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards to ensure proper configuration and reliable operation.
Applications
- Industrial automation for object detection and distance measurement
- Robotics for precise positioning and obstacle avoidance
- Material handling systems for presence detection
- Level measurement in tanks and silos
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor life
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Robust design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UM30-215111 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation, robotics, and material handling applications.
