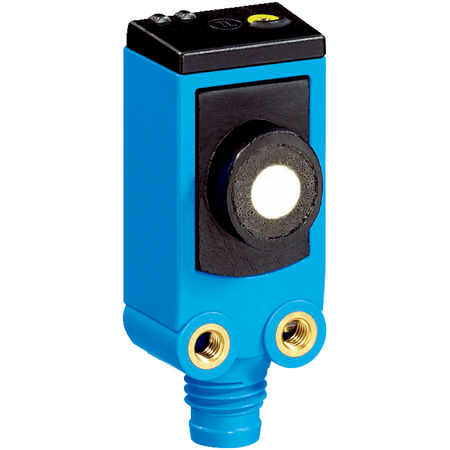

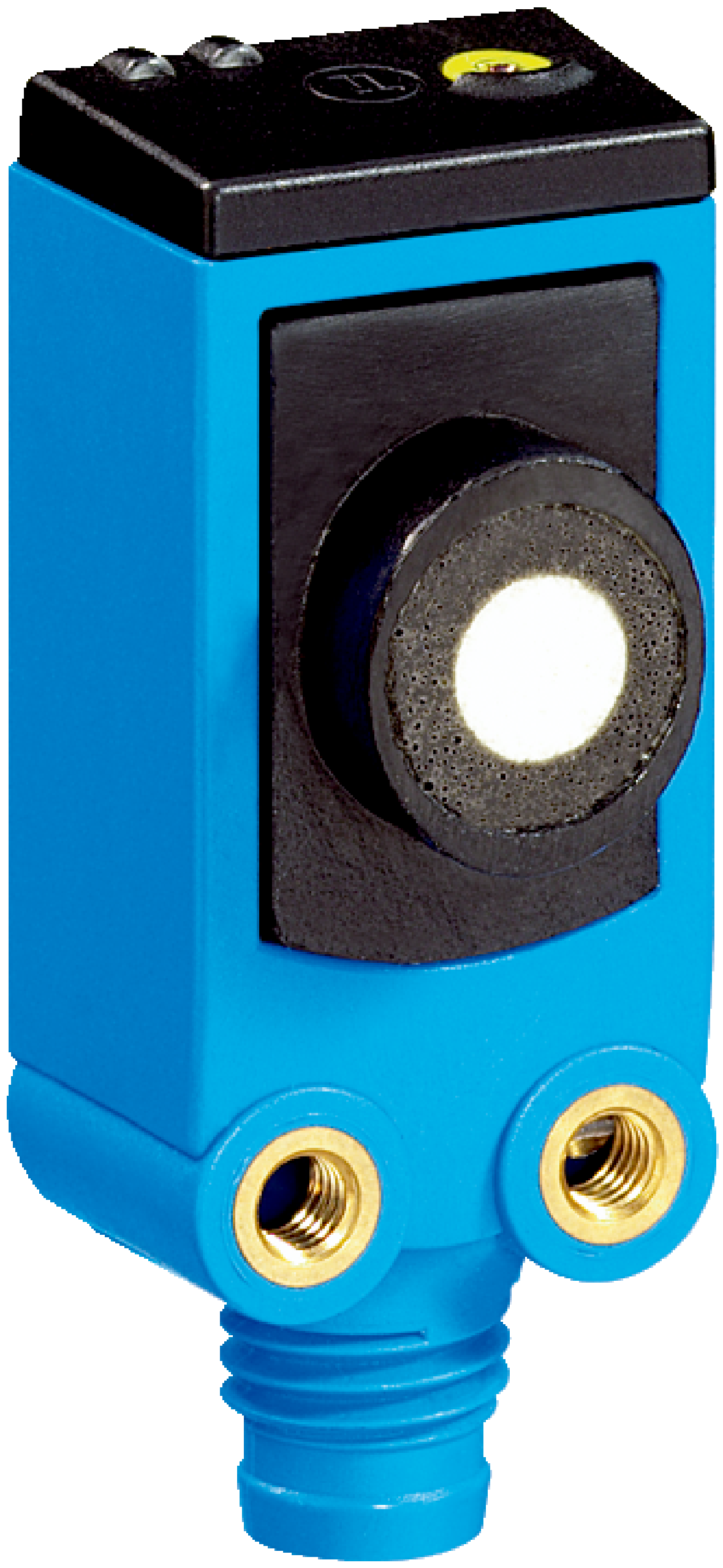

Ultrasonic Sensor UC4-11341 | 13 mm to 150 mm Range | High Resolution & Fast Response | IP65/IP67 Rated | by SICK
The Ultrasonic Sensor UC4-11341 is designed for precise detection and measurement of objects within a 13 mm to 150 mm range. With a high resolution of ≥ 0.1 mm and a fast response time of 24 ms, it's perfect for industrial automation and safety systems. Its robust IP65/IP67 rated enclosure ensures durability in challenging environments, making it an ideal choice for manufacturing processes and object presence detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Proximity Sensor, Ultrasonic Distance Sensor, Industrial Ultrasonic Sensor, SICK UC4 Sensor
Technical Specifications
- Operating range: 13 mm to 100 mm, extendable to 150 mm
- Resolution: ≥ 0.1 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 24 ms
- Switching frequency: 30 Hz
- Ultrasonic frequency: 380 kHz
- Digital output: 1 PNP output, max 200 mA
- Supply voltage: DC 15 V to 30 V
- Power consumption: ≤ 0.75 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male connector, M8, 3-pin
- Operating temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 40mm x 17mm x 16mm
- Weight: 0.1 kg
Key Features
- Operating range from 13 mm to 100 mm, extendable to 150 mm
- High resolution of ≥ 0.1 mm and measurement accuracy of ± 1%
- Fast response time of 24 ms and switching frequency of 30 Hz
- Adjustable operating modes including switching point, switching window, and background suppression
- IP65 / IP67 rated enclosure for robust protection
- Supply voltage range DC 15 V to 30 V with low power consumption ≤ 0.75 W
- Digital PNP output with maximum current ≤ 200 mA
- Compact rectangular design with dimensions 16 mm x 40.1 mm x 16.7 mm
- Operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Detection and measurement of natural objects within 13 mm to 150 mm range
- Industrial automation and safety systems
- Object presence detection in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UC4-11341 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
