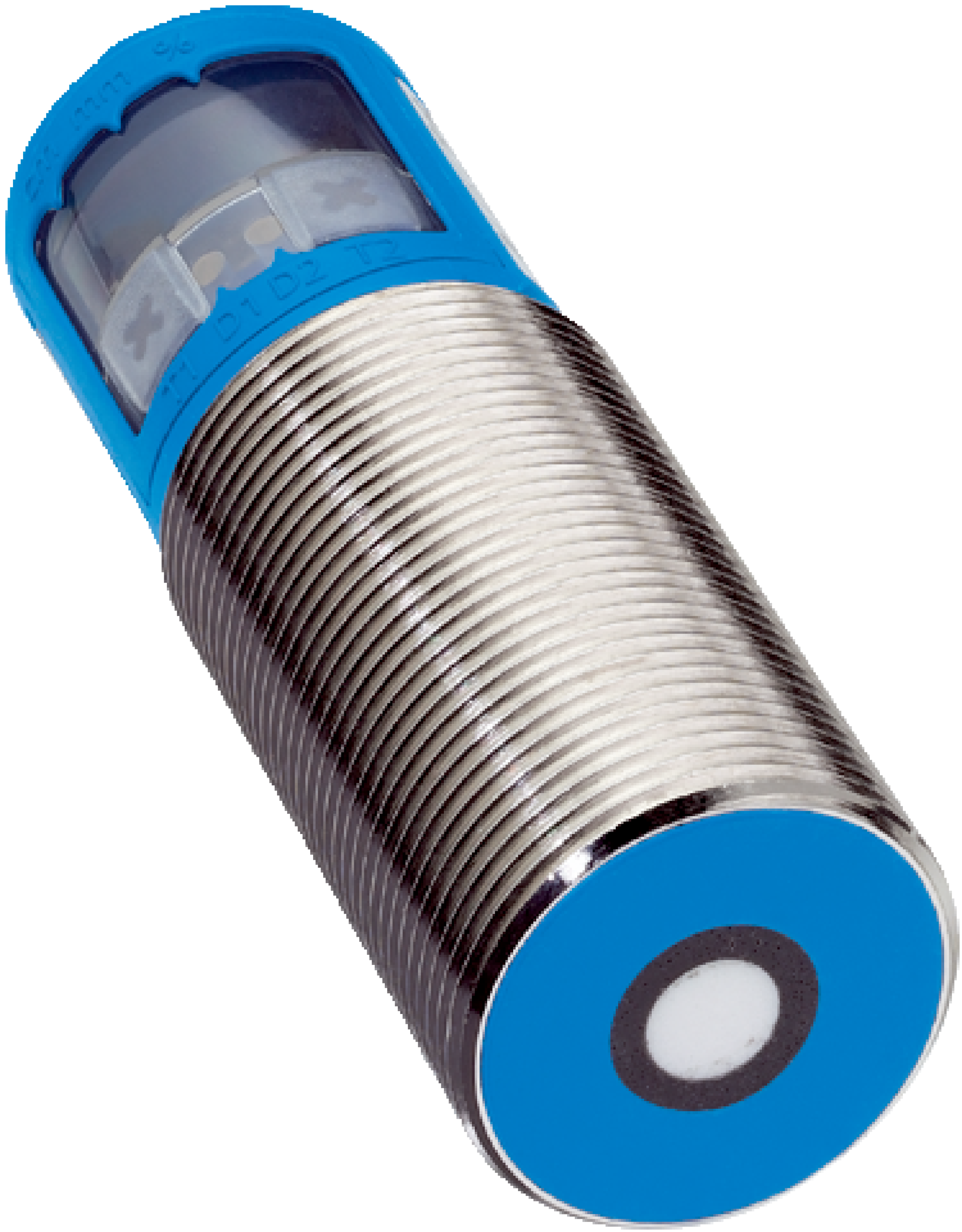

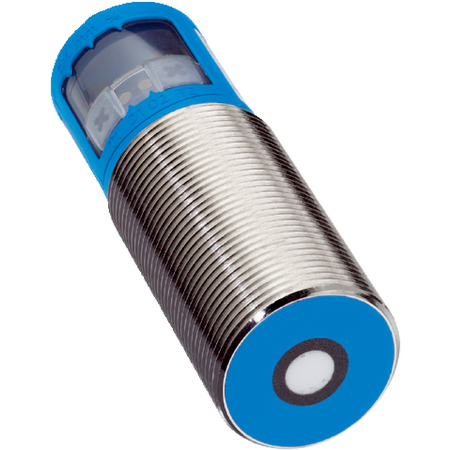

Ultrasonic Sensor UM30-211111 | 30 mm to 250 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Sensor UM30-211111 is designed for precise object detection in industrial automation, featuring an operating range of 30 mm to 250 mm, extendable to 350 mm. With a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%, this sensor is perfect for harsh environments, ensuring reliable performance with its robust IP65/IP67 rated metal housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Proximity Sensor, Ultrasonic Distance Sensor, Industrial Ultrasonic Sensor, SICK UM30 Sensor
Technical Specifications
- Operating range: 30 mm to 250 mm, extendable to 350 mm
- Target: Natural objects
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Temperature compensation: Yes
- Response time: 32 ms
- Switching frequency: 25 Hz
- Output time: 8 ms
- Ultrasonic frequency: 320 kHz
- Digital output: 1 PNP output, max 200 mA
- Multifunctional input: 1 x MF
- Hysteresis: 3 mm
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Initialization time: < 300 ms
- Indication: LED display with 2 LEDs
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Connection type: Male connector, M12, 5-pin
- Ambient temperature operation: -25 °C to +70 °C
- Ambient temperature storage: -40 °C to +85 °C
- Dimensions (H x L x W): 30mm x 84mm x 30mm
- Weight: 0.15 kg
Key Features
- Operating range from 30 mm to 250 mm, extendable to 350 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation included
- Fast response time of 32 ms and switching frequency of 25 Hz
- Adjustable operating modes and digital output settings
- Synchronization capability for up to 50 sensors without cross talk
- LED display with 2 LEDs for indication
- Robust metal housing with IP65/IP67 rating
- Supply voltage DC 9 V to 30 V with low power consumption ≤ 2.4 W
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor configuration.
Applications
- Industrial automation for object detection
- Measurement of natural objects within 30 mm to 350 mm range
- Use in harsh environments requiring IP65/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UM30-211111 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
