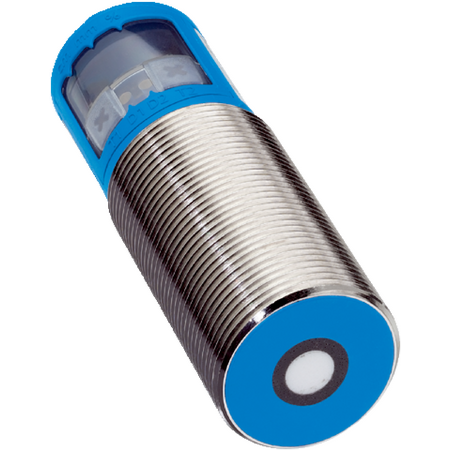

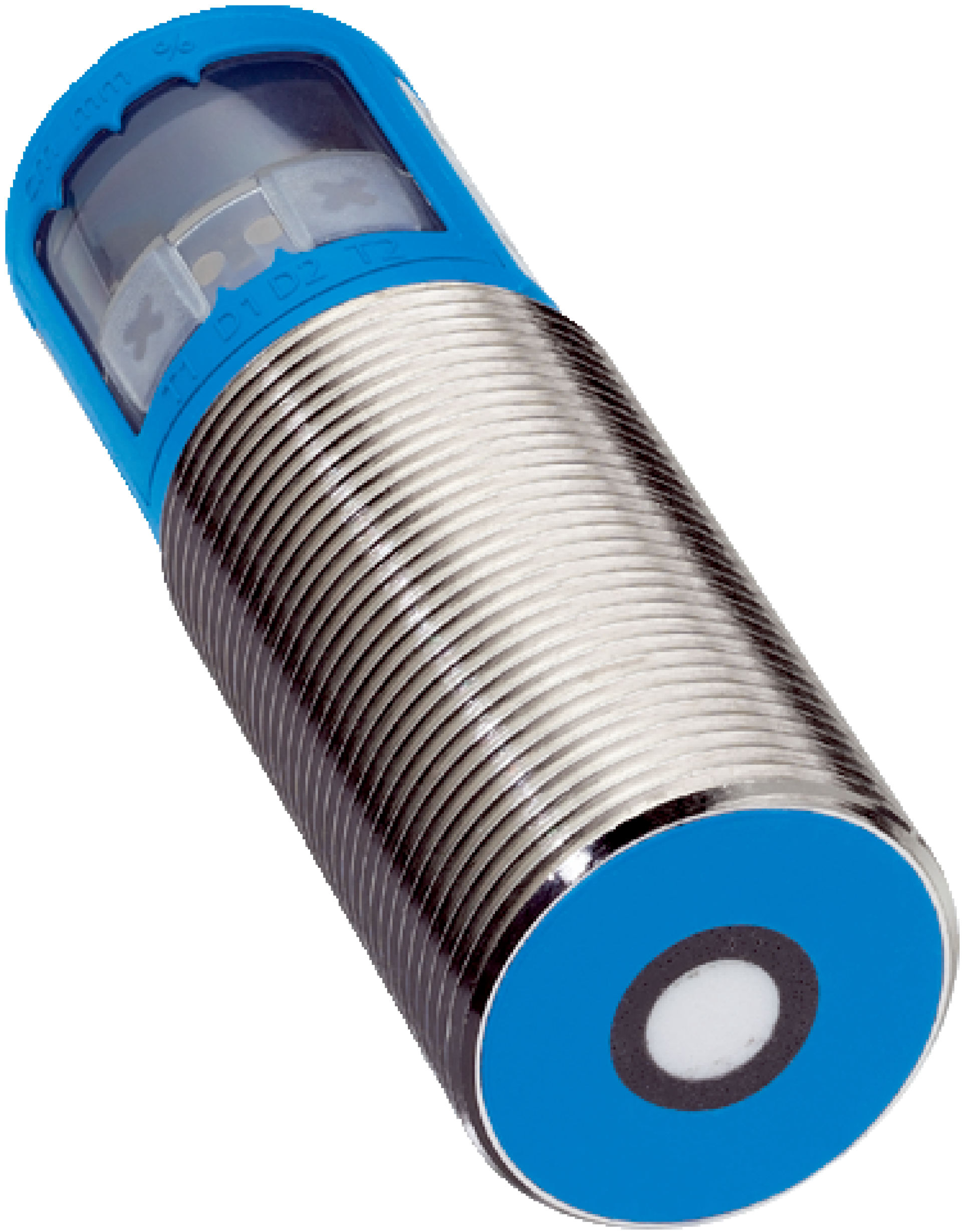

Ultrasonic Sensor UM30-212112 | 65 mm to 350 mm Range | IP65/IP67 Rated | by SICK
The Ultrasonic Sensor UM30-212112 offers an operating range from 65 mm to 350 mm, extendable to 600 mm, making it perfect for industrial automation and object detection. With a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%, this sensor is designed for reliable performance in various applications, including level measurement and robotics. Its robust metal housing ensures durability with an IP65/IP67 protection rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Proximity Sensor, Ultrasonic Distance Sensor, Industrial Ultrasonic Sensor, SICK UM30 Sensor
Technical Specifications
- Operating range: 65 mm to 350 mm, extendable to 600 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 64 ms
- Switching frequency: 12 Hz
- Ultrasonic frequency: 400 kHz
- Digital outputs: 2 PNP outputs, max 200 mA
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Connection type: Male connector, M12, 5-pin
- Thread size: M30 x 1.5
- Operating temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 30mm x 84mm x 30mm
- Weight: 0.15 kg
Key Features
- Operating range from 65 mm to 350 mm, extendable to 600 mm
- High resolution of ≥ 0.18 mm and measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- Robust metal housing with IP65/IP67 protection rating
- LED display with two LEDs for status indication
- Temperature compensation for accurate measurements
- Fast response time of 64 ms and switching frequency of 12 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, mounting, and configuration for optimal sensor performance and safety.
Applications
- Industrial automation for object detection and measurement
- Level measurement in tanks and silos
- Presence detection in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor life
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Robust design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UM30-212112 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
