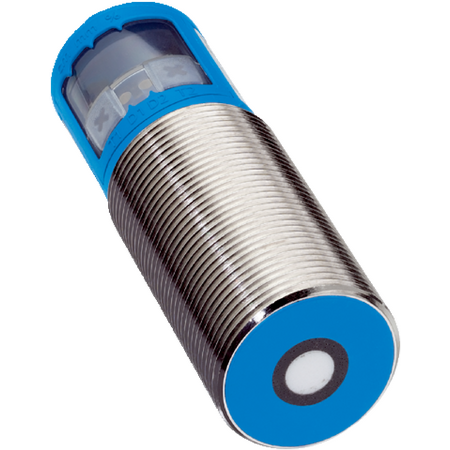

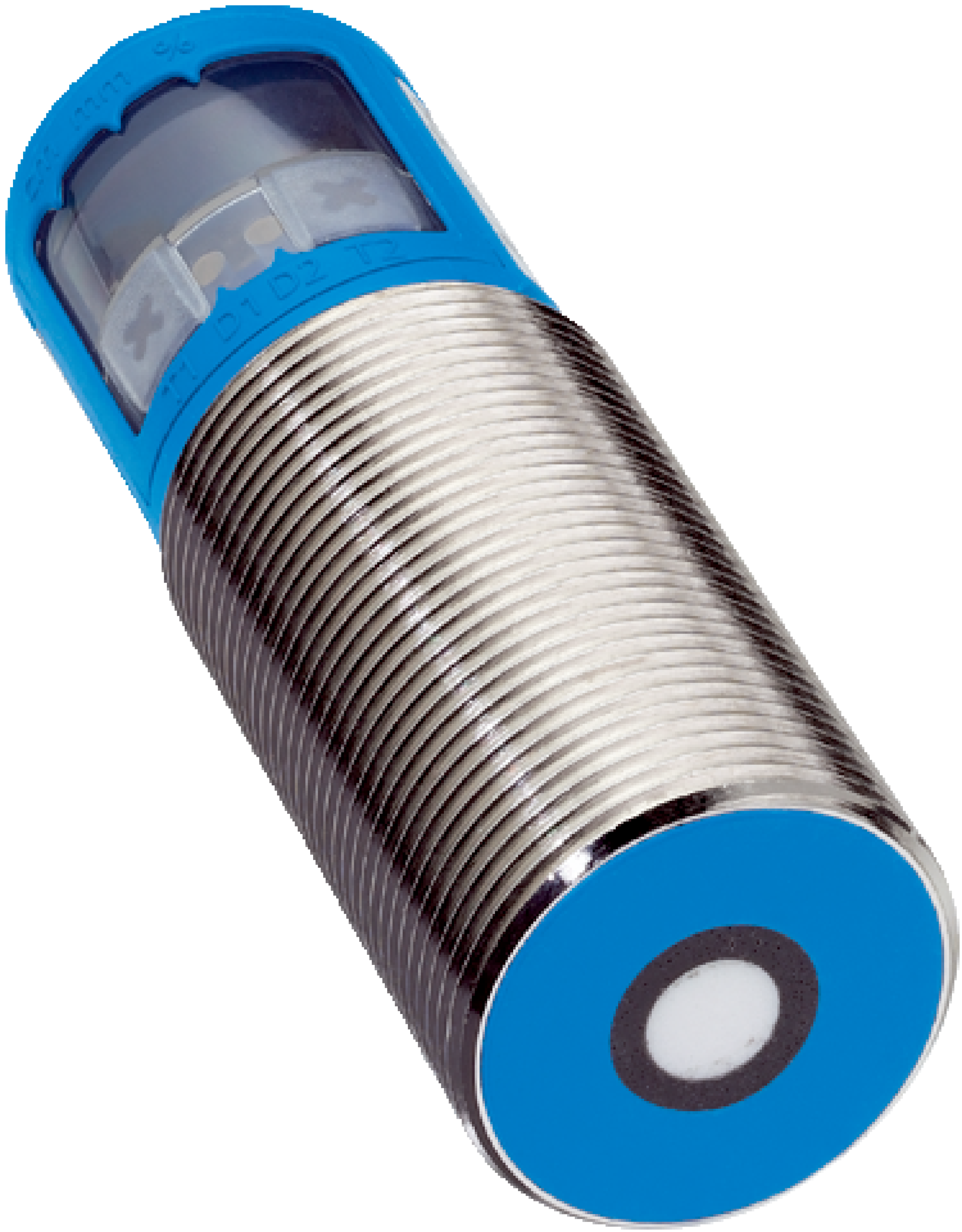

Ultrasonic Sensor UM30-212118 | 65mm to 350mm Range | IP65/IP67 Rated | High Resolution | by SICK
The Ultrasonic Sensor UM30-212118 is designed for precise object detection and distance measurement, featuring an operating range from 65 mm to 350 mm, extendable to 600 mm. With a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%, it's perfect for industrial automation, robotics, and harsh environment applications. Built with an IP65/IP67 rated enclosure, this sensor ensures durability and reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Proximity Sensor, Ultrasonic Distance Sensor, Industrial Ultrasonic Sensor, SICK UM30 Sensor
Technical Specifications
- Operating range: 65 mm to 350 mm, extendable to 600 mm
- Target: Natural objects
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Temperature compensation included
- Response time: 64 ms
- Switching frequency: 12 Hz
- Output time: 16 ms
- Ultrasonic frequency: 400 kHz
- Digital output: 1 PNP output, max 200 mA
- Analog output: 4 mA to 20 mA or 0 V to 10 V, 12-bit resolution
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Connection type: Male connector, M12, 5-pin
- Thread size: M30 x 1.5
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 30mm x 84mm x 30mm
- Weight: 0.15 kg
Key Features
- Operating range from 65 mm to 350 mm, extendable to 600 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- IP65 / IP67 rated enclosure for robust protection
- LED display with two LEDs for status indication
- Automatic selection of analog current or voltage output
- Temperature compensation for accurate measurements
- Fast response time of 64 ms and switching frequency of 12 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Robotics and manufacturing process control
- Level measurement and presence detection in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal housing reduces waste by extending product lifespan
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Supports automation that can optimize resource use and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UM30-212118 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
