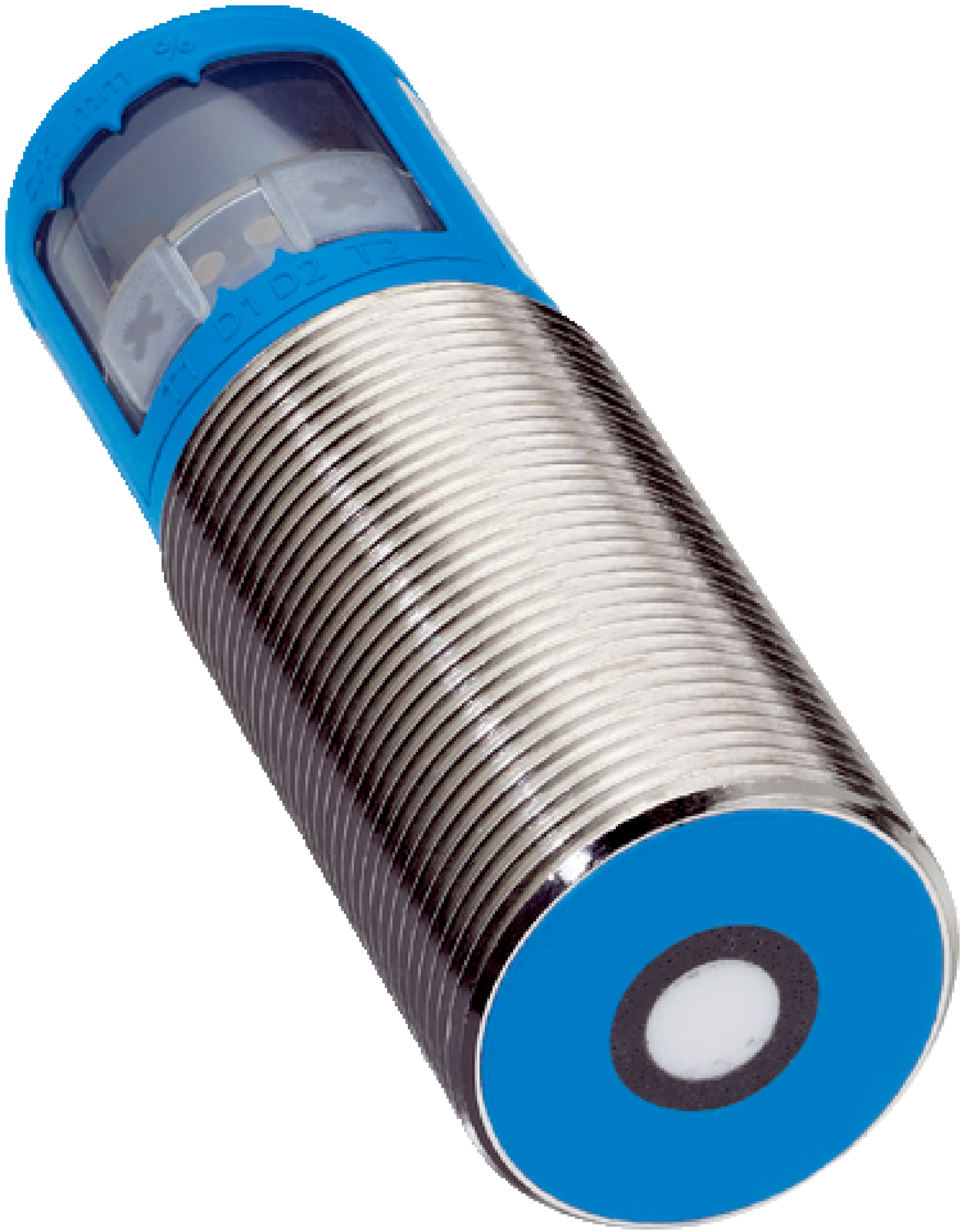

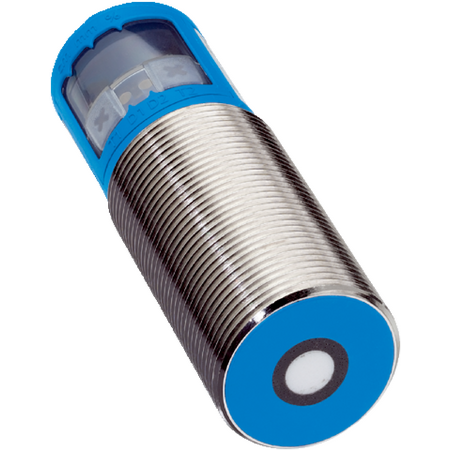

Ultrasonic Sensor UM30-213111 | 200 mm to 2000 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Sensor UM30-213111 offers an impressive operating range from 200 mm to 1300 mm, extendable to 2000 mm, making it perfect for industrial automation and object detection. With a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%, this sensor ensures precise distance measurements in harsh environments. Its robust IP65/IP67 rated enclosure and fast response time of 92 ms make it a reliable choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Distance Sensor, Ultrasonic Proximity Sensor, SICK UM30 Sensor, Industrial Ultrasonic Sensor
Technical Specifications
- Operating range: 200 mm to 1300 mm, extendable to 2000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 92 ms
- Switching frequency: 8 Hz
- Ultrasonic frequency: 200 kHz
- Digital output: 1 PNP output, max 200 mA
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Connection type: Male connector, M12, 5-pin
- Thread size: M30 x 1.5
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 30mm x 84mm x 30mm
- Weight: 0.15 kg
Key Features
- Operating range from 200 mm to 1300 mm, extendable to 2000 mm
- High resolution of ≥ 0.18 mm and measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- IP65 / IP67 rated enclosure for robust protection
- LED display with two LEDs for status indication
- Temperature compensation for accurate measurements
- Fast response time of 92 ms and switching frequency of 8 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor configuration.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing processes
- Level measurement and presence detection in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor life
- Energy-efficient operation with low power consumption of ≤ 2.4 W
- Robust design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UM30-213111 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
