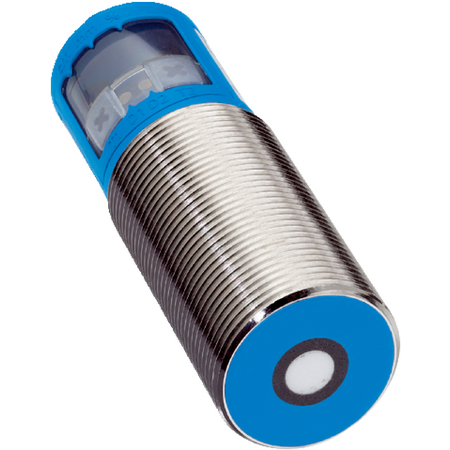

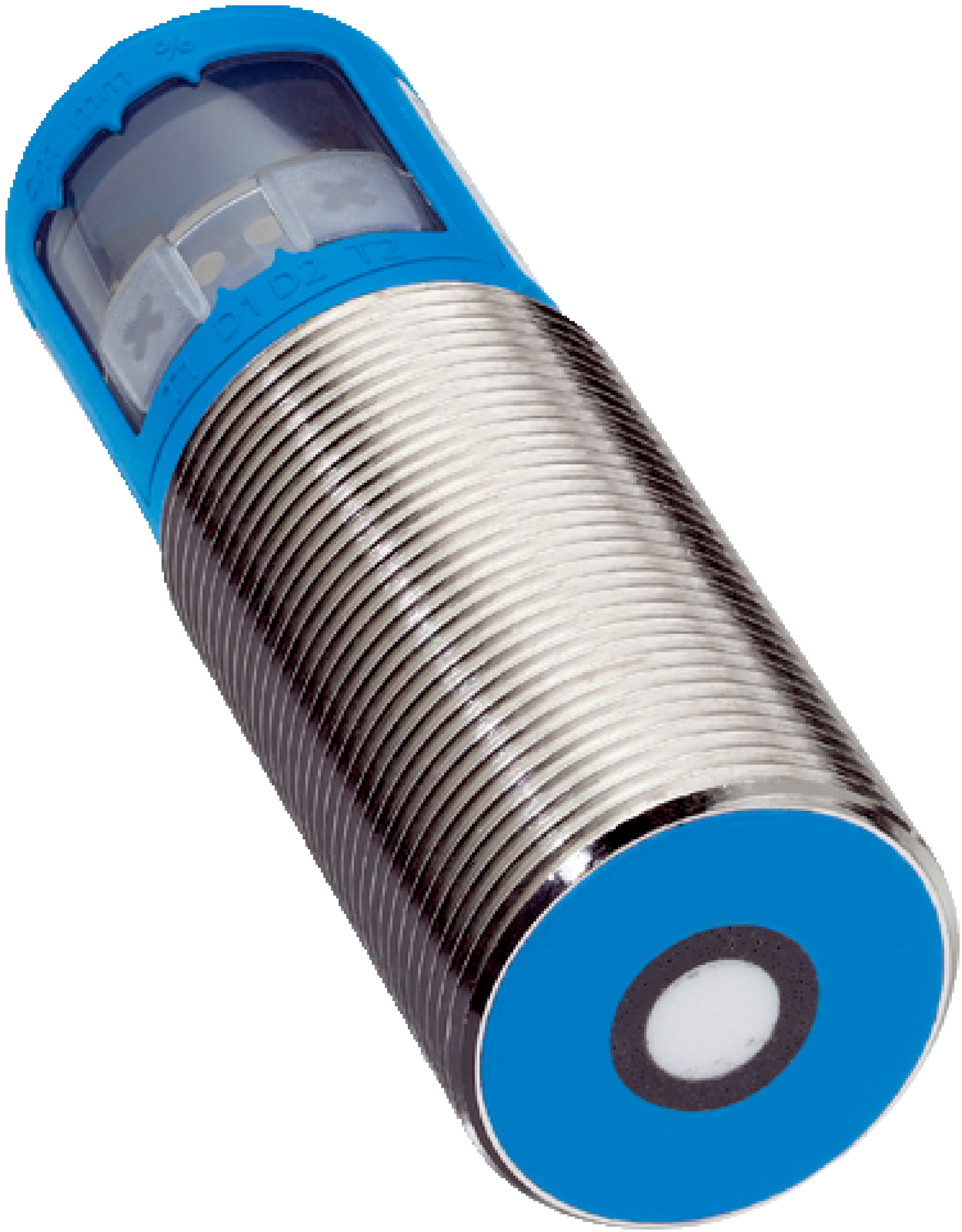

Ultrasonic Sensor UM30-213112 | 200 mm to 2000 mm Range | High Resolution & Fast Response | IP65/IP67 Rated | by SICK
The Ultrasonic Sensor UM30-213112 is designed for precise distance measurement and object detection in industrial automation. With an operating range of 200 mm to 2000 mm and a high resolution of ≥ 0.18 mm, it ensures reliable performance in harsh environments. Ideal for manufacturing and processing lines, this sensor features temperature compensation and a robust IP65/IP67 rated enclosure, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Distance Sensor, Ultrasonic Proximity Sensor, Industrial Ultrasonic Sensor, SICK UM30 Sensor
Technical Specifications
- Operating range: 200 mm to 1300 mm, extendable to 2000 mm
- Target: Natural objects
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Temperature compensation: Yes
- Response time: 92 ms
- Switching frequency: 8 Hz
- Output time: 23 ms
- Ultrasonic frequency: 200 kHz
- Digital outputs: 2 PNP outputs, max 200 mA
- Multifunctional input: 1 x MF
- Hysteresis: 20 mm
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Initialization time: < 300 ms
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Connection type: Male connector, M12, 5-pin
- Dimensions (H x L x W): 30mm x 84mm x 30mm
- Weight: 0.15 kg
Key Features
- Operating range from 200 mm to 1300 mm, extendable to 2000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation for consistent performance
- Fast response time of 92 ms and switching frequency of 8 Hz
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors without cross talk
- LED display with 2 LEDs for status indication
- Robust IP65 / IP67 rated enclosure for harsh environments
- Metal housing with nickel-plated brass and polyurethane foam ultrasonic transducer
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing and processing lines
- Use in environments requiring precise and reliable ultrasonic sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending device life and reducing waste
- Energy-efficient operation with low power consumption of ≤ 2.4 W
- Robust design minimizes replacement frequency, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UM30-213112 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
