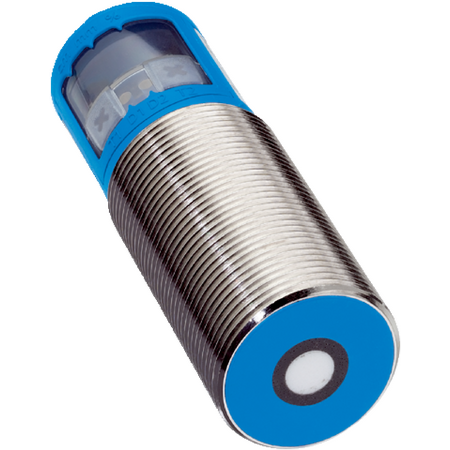

Ultrasonic Sensor UM30-213118 | 200 mm to 2000 mm Range | IP65/IP67 Rated | High Resolution | by SICK
The Ultrasonic Sensor UM30-213118 offers an impressive operating range from 200 mm to 2000 mm, making it perfect for industrial automation and object detection. With a high resolution of ≥ 0.18 mm and an accuracy of ± 1%, this sensor ensures reliable performance in harsh environments. Its robust IP65/IP67 rated enclosure and fast response time of 92 ms make it an ideal choice for level measurement and presence detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Distance Sensor, Ultrasonic Proximity Sensor, Industrial Ultrasonic Sensor, SICK UM30 Sensor
Technical Specifications
- Operating range: 200 mm to 1300 mm, extendable to 2000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 92 ms
- Switching frequency: 8 Hz
- Ultrasonic frequency: 200 kHz
- Digital output: 1 PNP output, max 200 mA
- Analog output: 4 mA to 20 mA or 0 V to 10 V, 12-bit resolution
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Connection type: Male M12, 5-pin connector
- Operating temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 30mm x 84mm x 30mm
- Weight: 0.15 kg
Key Features
- Operating range from 200 mm to 1300 mm, extendable to 2000 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation for stable performance
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors without cross talk
- IP65 / IP67 rated enclosure for robust protection
- LED display with 2 LEDs for status indication
- Automatic selection of analog current or voltage output
- Fast response time of 92 ms and switching frequency of 8 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor configuration.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing processes
- Level measurement and presence detection in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal housing reduces waste by extending product lifespan
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Supports automation that can optimize resource use and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UM30-213118 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
