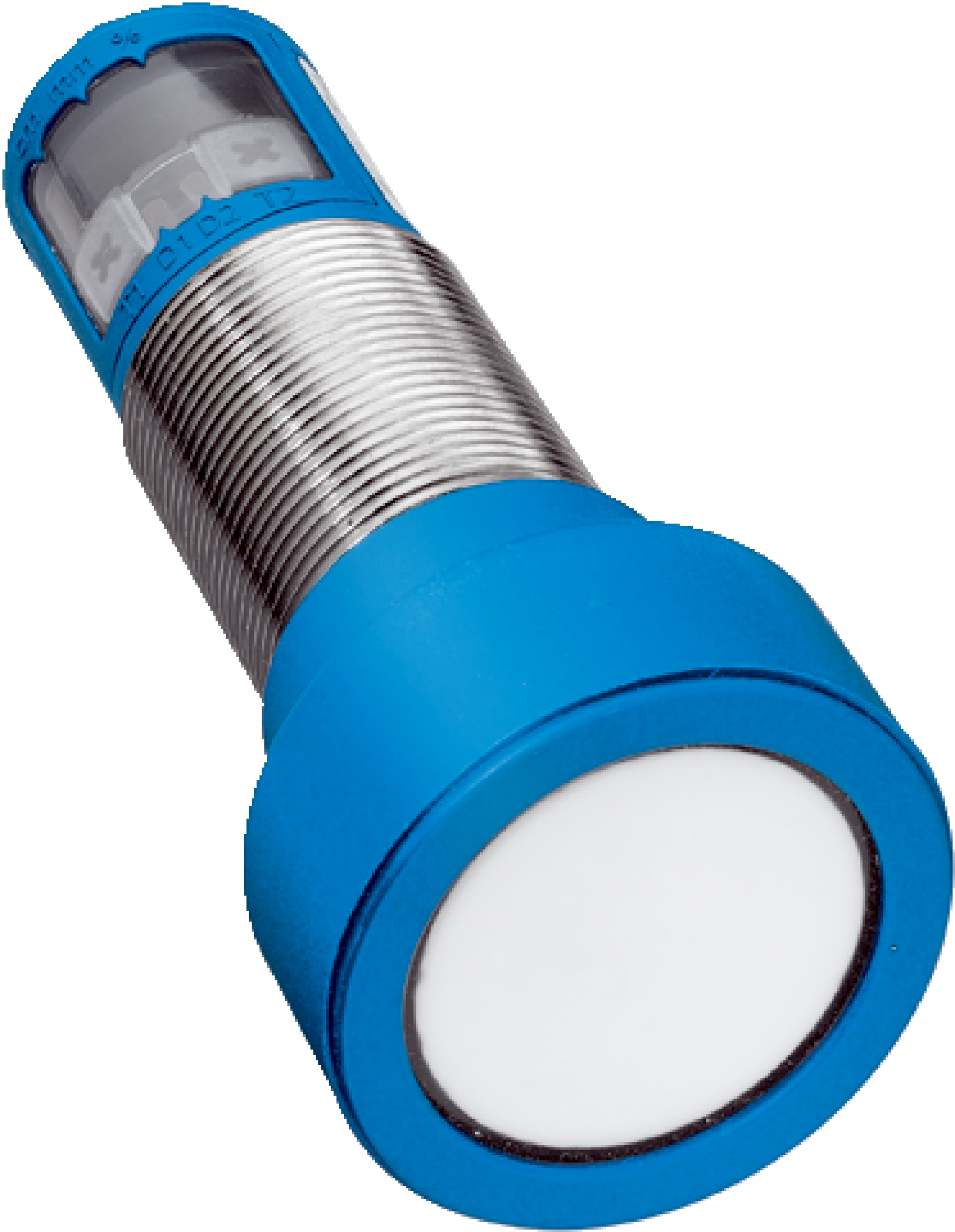

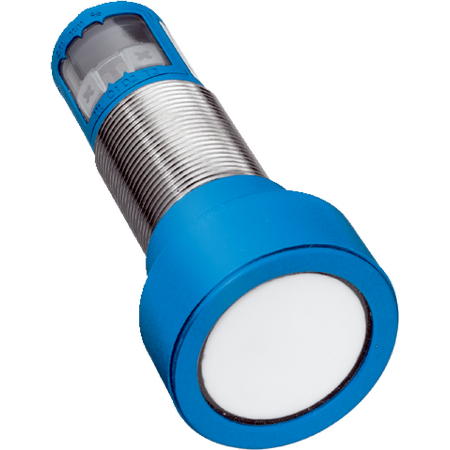

Ultrasonic Sensor UM30-214112 | 350 mm to 5,000 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Sensor UM30-214112 offers an impressive operating range from 350 mm to 5,000 mm, making it ideal for industrial automation and safety monitoring applications. With a high resolution of ≥ 0.18 mm and a robust IP65/IP67 rated metal housing, this sensor ensures reliable performance in challenging environments. Perfect for object detection and level measurement, it features temperature compensation and a fast response time of 180 ms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Distance Sensor, Ultrasonic Proximity Sensor, Industrial Ultrasonic Sensor, SICK UM30 Sensor
Technical Specifications
- Operating range: 350 mm to 3,400 mm and up to 5,000 mm
- Target: Natural objects
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Temperature compensation: Yes
- Response time: 180 ms
- Switching frequency: 4 Hz
- Output time: 43 ms
- Ultrasonic frequency: 120 kHz
- Digital outputs: 2 PNP outputs, max 200 mA
- Multifunctional input: 1 x MF
- Hysteresis: 50 mm
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Initialization time: < 300 ms
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Thread size: M30 x 1.5
- Connection type: Male connector, M12, 5-pin
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 47.5mm x 102mm x 47.5mm
- Weight: 0.21 kg
Key Features
- Operating range from 350 mm to 5,000 mm
- High resolution of ≥ 0.18 mm
- Repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation included
- Response time of 180 ms with switching frequency of 4 Hz
- Adjustable operating modes and measurement filters
- Synchronization capability for up to 50 sensors without cross talk
- LED display with 2 LEDs for indication
- Robust metal housing with IP65/IP67 protection rating
- Male M12 5-pin connector for easy installation
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper sensor alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Level measurement in tanks and silos
- Presence detection in manufacturing processes
- Safety and monitoring in automated systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor life
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Robust design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UM30-214112 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
