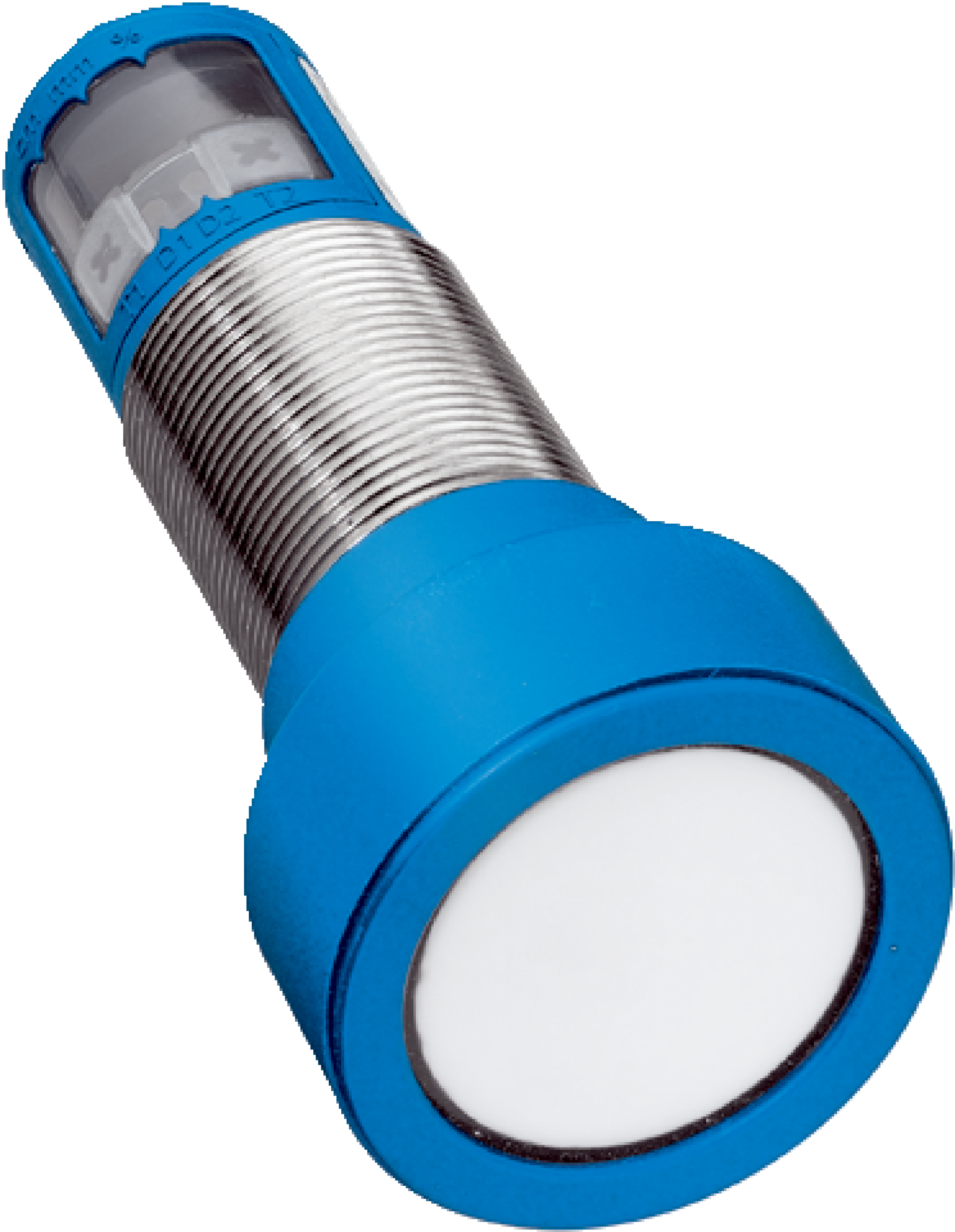

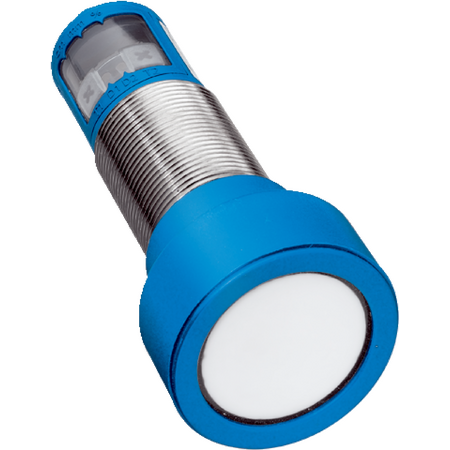

Ultrasonic Sensor UM30-214113 | 350 mm to 5,000 mm Range | High Resolution & Accuracy | IP65/IP67 Rated | by SICK
The Ultrasonic Sensor UM30-214113 offers an impressive operating range from 350 mm to 5,000 mm, with a high resolution of ≥ 0.18 mm and measurement accuracy of ± 1%. Perfect for industrial automation, this sensor is designed for reliable object detection and distance measurement, ensuring optimal performance in various applications, including robotics and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ultrasonic Distance Sensor, Ultrasonic Proximity Sensor, Industrial Ultrasonic Sensor, SICK UM30 Sensor
Technical Specifications
- Operating range: 350 mm to 3,400 mm and up to 5,000 mm
- Resolution: ≥ 0.18 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 180 ms
- Output time: 43 ms
- Ultrasonic frequency: 120 kHz
- Analog output: 4 mA to 20 mA current or 0 V to 10 V voltage, 12-bit resolution
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 2.4 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection: Male M12, 5-pin connector
- Housing material: Nickel-plated brass, PBT, polyurethane foam, glass epoxy resin
- Thread size: M30 x 1.5
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 47.5mm x 102mm x 47.5mm
- Weight: 0.21 kg
Key Features
- Operating range from 350 mm up to 5,000 mm
- High resolution of ≥ 0.18 mm and measurement accuracy of ± 1%
- Temperature compensation for reliable measurements
- Automatic selection of analog current or voltage output
- Synchronization of up to 50 sensors without cross talk
- IP65 / IP67 rated enclosure for robust protection
- LED display with two LEDs for status indication
- Metal housing with nickel-plated brass and polyurethane foam ultrasonic transducer
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Level measurement in tanks and silos
- Safety and monitoring in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact measurement reduces wear and tear, extending sensor life
- Energy-efficient operation with low power consumption (≤ 2.4 W)
- Robust design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UM30-214113 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation, safety monitoring, and precise distance measurement applications.
