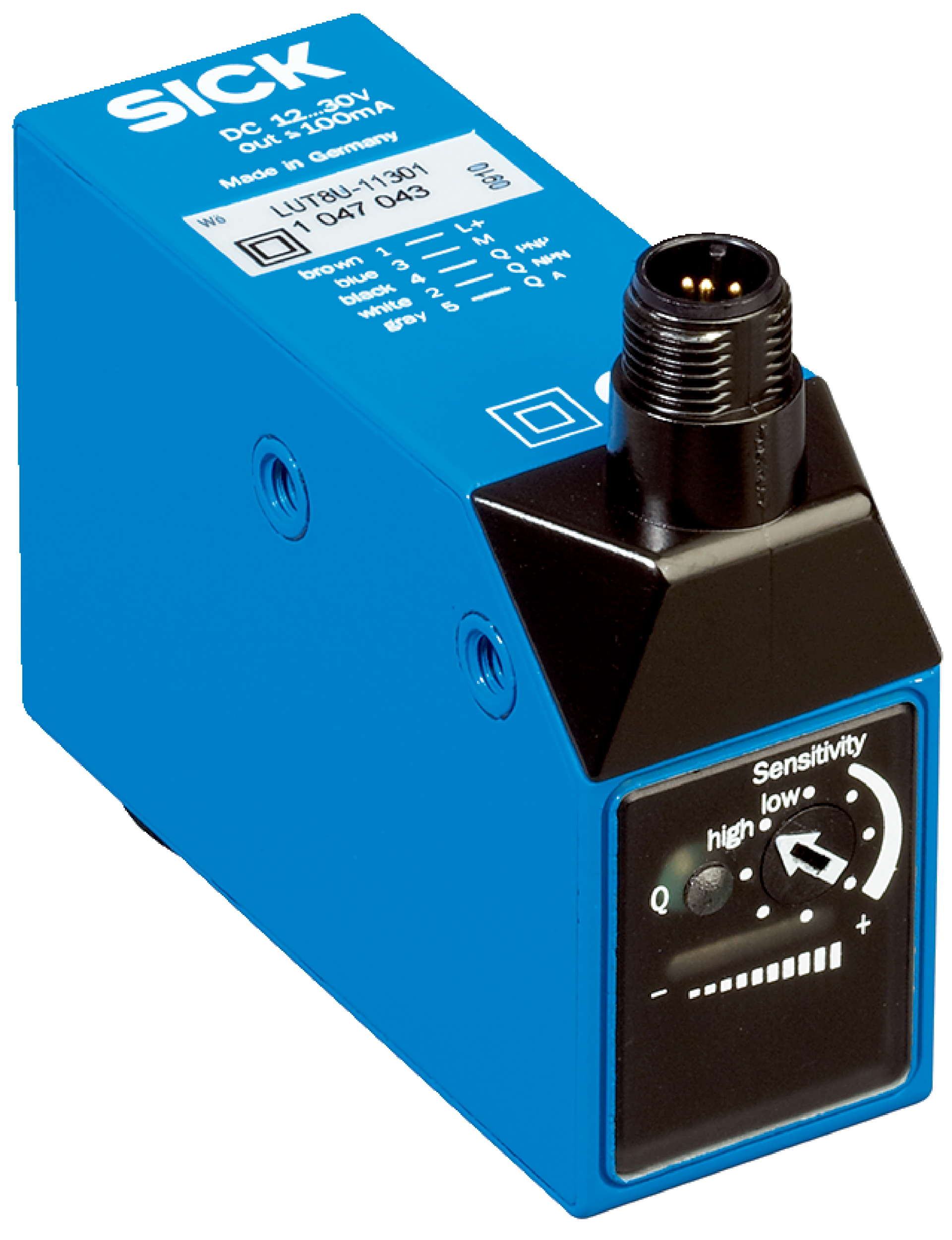

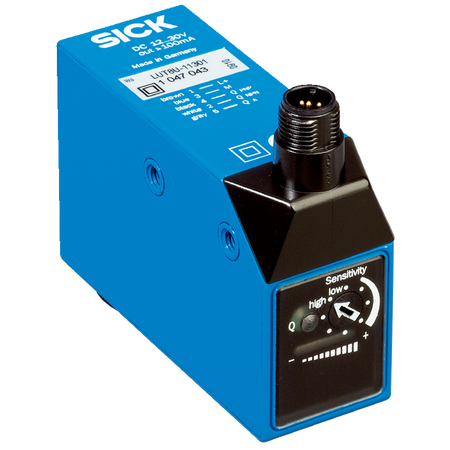

Ultraviolet LED Sensor | 375 nm Wavelength | IP67 Rated | PNP/NPN Switching | by SICK
The Ultraviolet LED Sensor is designed for precise object detection and quality control in industrial automation. Featuring a 375 nm wavelength UV LED light source and an IP67 rated enclosure, it ensures reliable performance in various environments. With a quick response time of 200 µs and a sensing distance of up to 50 mm, this sensor is perfect for applications requiring accurate UV light sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: UV LED Sensor, Ultraviolet Light Sensor, SICK LUT8U Sensor
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Current consumption: < 100 mA
- Switching frequency: 2.5 kHz
- Response time: 200 µs
- Light source: Ultraviolet LED at 375 nm wavelength
- Sensing distance: up to 50 mm
- Light spot size: 5 mm x 15 mm
- Output current max: 100 mA
- Protection class: II
- Enclosure rating: IP67
- Connection type: Plug, M12, 5-pin
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Dimensions (H x L x W): 53mm x 80mm x 30mm
- Weight: 0.4 kg
Key Features
- Large zinc diecast housing for durability
- Ultraviolet LED light source with 375 nm wavelength
- Light emission from the long side with a 5 mm x 15 mm spot size
- Manual rotary switch adjustment
- IP67 rated enclosure for protection against dust and water
- Plug M12, 5-pin connection
- Light switching output function with PNP and NPN switching options
- Short-circuit and reverse polarity protected circuitry
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Quality control in manufacturing
- UV light sensing in various environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable housing reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LUT8U-11301 Ultraviolet LED Sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
