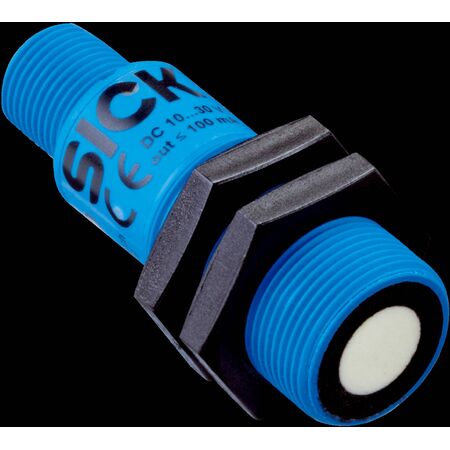

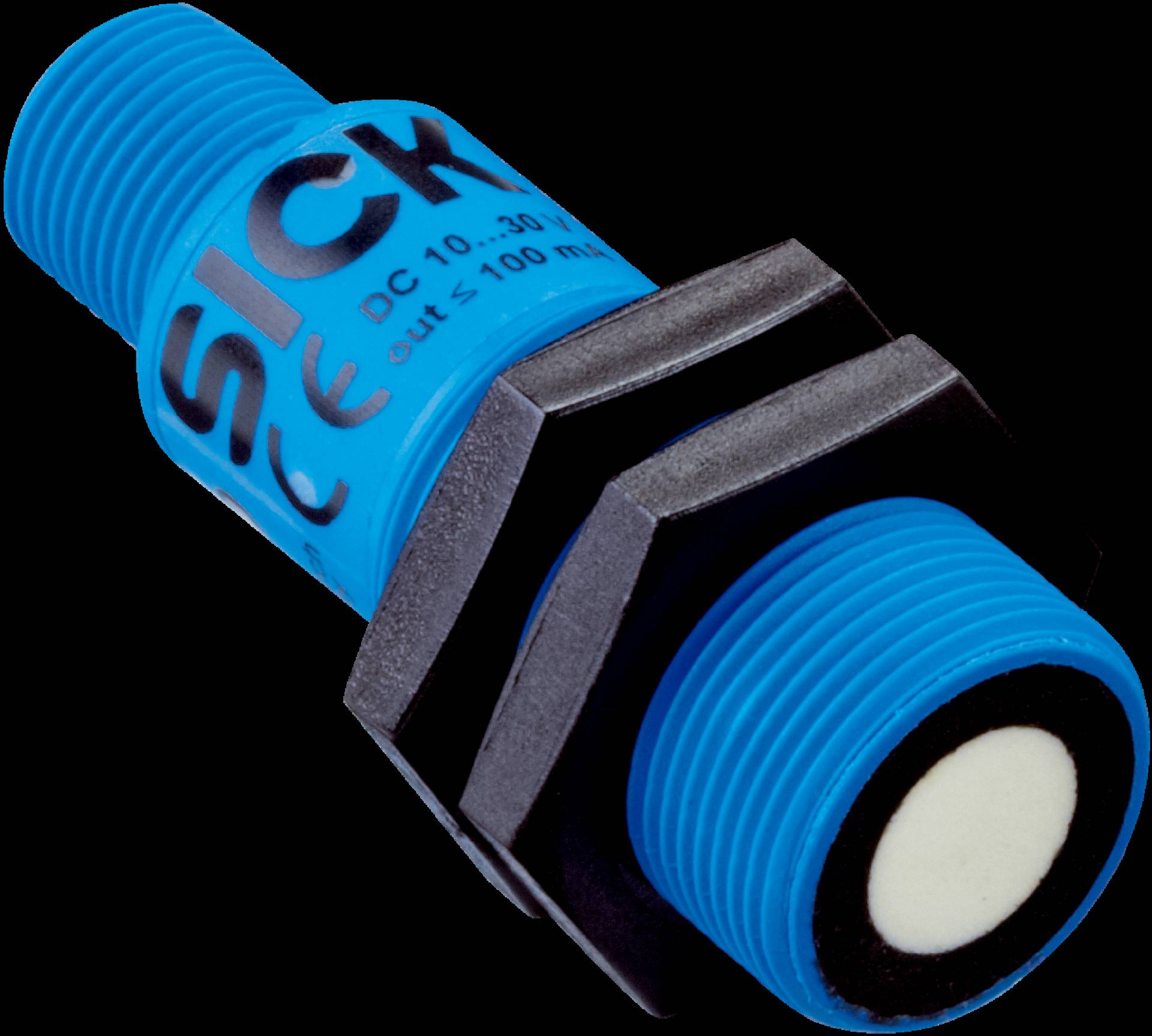

UM18 Ultrasonic Sensor | 65mm to 350mm Range | 400kHz Frequency | NPN Output | by SICK
The UM18 Ultrasonic Sensor offers reliable measurement from 65mm to 350mm, making it ideal for industrial automation and machine integration. With a 400kHz measuring frequency and NPN digital output, it excels in harsh environments, unaffected by material color or ambient light. Its durable design ensures longevity, while versatile interfaces like IO-Link enhance its functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UM18 Ultrasonic Sensor | 65mm to 350mm Range | 400kHz Frequency | NPN Output | by SICK
Brand: SICK
SKU: 6048418
Alternatively Known As: UM18 Ultrasonic Sensor, SICK Ultrasonic Distance Sensor, M18 Ultrasonic Sensor
Technical Specifications
- Minimum measuring range: 65 mm
- Maximum measuring range: 350 mm
- Measuring frequency: 400 kHz
- Switching frequency: 12 Hz
- Response time: 64 ms
- Type of digital output: NPN
- Screwed joint: M12, 4-pin
- Housing: Metal or plastic M18
- Dimensions (H x L x W): 42mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Reliable measurement regardless of material color, transparency, gloss, or ambient light
- Sensing ranges up to 1,300 mm
- Short metal or plastic M18 housing from 42 mm in length
- Available in straight or angled design
- Immune to dirt, dust, humidity, and fog
- Versatile interfaces including IO-Link available
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Machine integration requiring reliable sensing in harsh environments
- Applications needing measurement regardless of material color or transparency
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on purchase terms.
Available Now
The SICK UM18 Ultrasonic Distance Sensor is available now for immediate purchase. Ideal for industrial automation and machine integration applications.
