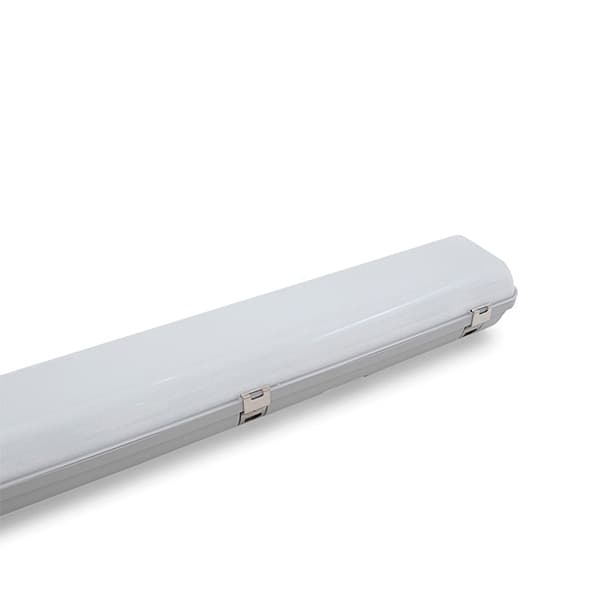

UMBRA Advanced 1200mm LED Wide Body Batten | Tri-CCT | IP65 Rated | IK08 Impact Resistance | by Ektor
The UMBRA Advanced 1200mm LED Wide Body Batten is designed for versatile lighting solutions, featuring a Tri-CCT configuration that allows you to select between 4000K, 5000K, and 6500K color temperatures. With an impressive IP65 rating for dust and water resistance and an IK08 impact resistance, this batten is perfect for both commercial and industrial applications, ensuring durability and efficiency in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light, LED Surface Mount Batten, Tri-CCT LED Batten, IP65 LED Batten, Emergency LED Batten Light
Technical Specifications
- Total System Efficiency: 118 lm/W
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: -20 to 40 °C
- Input Frequency: 50 Hz
- Switch Type: Inline
- Power Factor: 0.9
- Maximum Wattage: 17 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Current: 0.1 A
- Colour Rendering Index (CRI): >80
- CCT Configuration: Tri-CCT (4000K, 5000K, 6500K)
- Macadam Steps: 4-step MacAdam Ellipse
- Lamp/LED Voltage: 42 V
- Lamp/LED Current: 350 mA
- LED Lifetime: >60000 hours (L70B10)
- Driver Type: Fixed output
- Driver Included: Yes
- Integrated Driver: No
- Dimmable: No
- Wiring Type: Re-wireable terminal block (3 pin)
- Driver Mode: Constant Current
- Short Term Light Modulation (PstLM): 0.1
- Stroboscopic Visibility Measure (SVM): 0.4
- Emergency Mode: Maintained
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 400 lm
- Product Design Life: 8 years
- Daily Use: 16 hours
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 1.5 kg
Key Features
- High total system efficiency up to 118 lm/W
- IP65 rated for dust and water ingress protection
- IK08 impact resistance rating
- Tri-CCT configuration with selectable colour temperatures (4000K, 5000K, 6500K)
- Long LED lifetime greater than 60,000 hours (L70B10)
- Fixed output driver with power factor of 0.9
- Non-dimmable with re-wireable terminal block wiring
- Inline switch type
- Emergency maintained mode available with 90 minutes duration
- Microwave sensor option with adjustable settings
- Grey polycarbonate body and diffuser
- Operating temperature range from -20°C to 40°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Commercial and industrial lighting
- Surface mount installations in indoor and outdoor environments
- Emergency lighting applications
- Warehouses, corridors, and general workspaces
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long product design life of 8 years reduces waste and replacement frequency
- Complies with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard warranty is return-to-base. Onsite warranty available for registered users in defined regions. Commercial use warranty: 5 years return-to-base with first 2 years onsite. Warranty valid up to 25,000 operating hours.
Available Now
The UMBRA Advanced 1200mm LED Wide Body Batten is available for immediate purchase, ideal for commercial, industrial, and emergency lighting installations.
