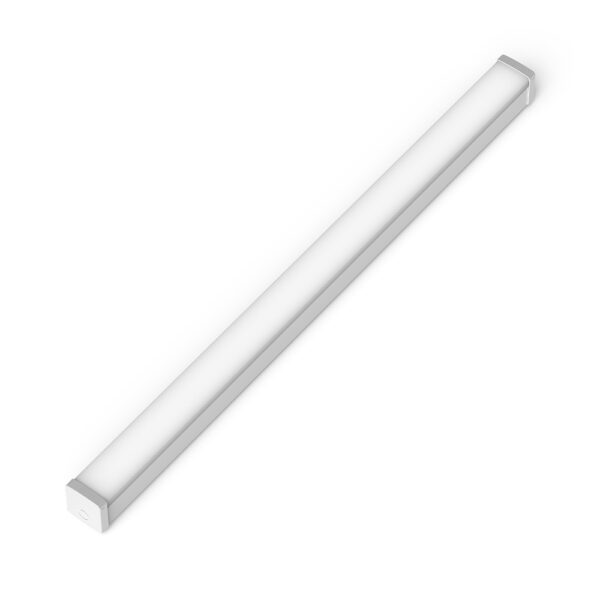

Umbra Core 1200mm Diffused Emergency LED Batten | Tri-CCT | 124 lm/W Efficiency | IP20 & IK08 Rated | by Ektor
The Umbra Core 1200mm Diffused Emergency LED Batten features a versatile Tri-CCT configuration, allowing you to select between 4000K, 5000K, or 6500K color temperatures. With a high system efficiency of up to 124 lm/W and robust IP20 and IK08 ratings, this batten is perfect for commercial and industrial lighting applications. Designed for surface mounting, it ensures reliable emergency lighting with a 90-minute duration and 380 lm output, making it an ideal choice for workplaces and public buildings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Batten Light, Tri-CCT LED Batten, Surface Mount LED Batten, Emergency Lighting Batten
Technical Specifications
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 2.5 kg
Key Features
- Tri-CCT configuration allowing selection of 4000K, 5000K, or 6500K colour temperatures
- High system efficiency up to 124 lm/W
- IP20 and IK08 rated for indoor use with impact resistance
- Powder coated steel body with polycarbonate diffuser
- Non-dimmable fixed output driver with re-wireable terminal block
- Emergency mode with 90 minutes duration and 380 lm emergency output
- High LED lifetime >60000 hours with L90B10 rating at 44000 hours
- Power factor of 0.9 and input voltage range 216-253Vac
- Complies with multiple AS/NZS standards for safety and performance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper emergency lighting setup.
Applications
- Commercial and industrial lighting
- Emergency lighting in workplaces and public buildings
- Surface mounted general illumination
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED and product design life reduces waste and replacement frequency
- Ipart and REES approved contributing to energy savings schemes
Warranty Information
5 years return to base warranty or 15000 operating hours, whichever occurs first.
Available Now
The Umbra Core 1200mm Diffused Emergency LED Batten is available for immediate purchase, ideal for commercial and emergency lighting applications.
