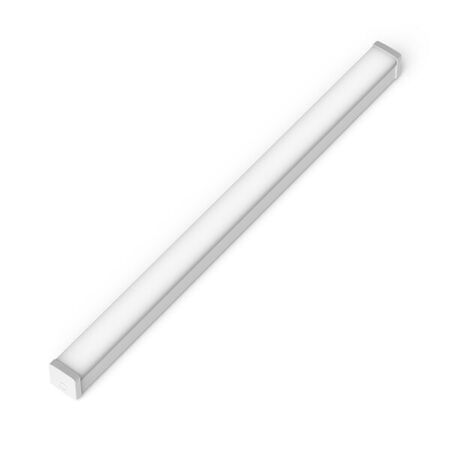

Umbra Core 1200mm Diffused LED Batten | Tri-CCT | 124 lm/W Efficiency | IP20 & IK08 Rated | by Ektor
The Umbra Core 1200mm Diffused LED Batten features a versatile Tri-CCT configuration, allowing you to choose between 4000K, 5000K, or 6500K color temperatures. With a high total system efficiency of up to 124 lm/W and an IP20 rating for indoor use, this batten is perfect for commercial and industrial lighting applications. Built with a durable powder-coated steel body and polycarbonate diffuser, it ensures long-lasting performance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light, Tri-CCT LED Batten, Diffused LED Batten, Surface Mount LED Batten, Emergency LED Batten Light
Technical Specifications
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 2.5 kg
Key Features
- Tri-CCT configuration allowing selection of 4000K, 5000K, or 6500K colour temperatures
- High total system efficiency up to 124 lm/W
- IP20 rated with IK08 impact resistance
- Powder coated steel body with polycarbonate diffuser
- Non-dimmable fixed output driver with re-wireable terminal block
- Long LED lifetime greater than 60,000 hours (TM-21 report)
- High colour rendering index (CRI > 80)
- Low flicker with PstLM of 0.1 and SVM of 0.4
- Emergency mode available with 90 minutes duration and 380 lm output
- Power factor of 0.9 and input voltage range 216-253Vac
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Commercial and industrial lighting
- Office and retail spaces
- Surface mounted indoor lighting
- General ambient lighting in workplaces
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS 60598.2.22
- AS/NZS 2293.3
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long product design life of 6 years reduces waste and replacement frequency
- Complies with energy savings schemes (Ipart and REES approvals)
Warranty Information
5 years return to base warranty or 15,000 operating hours, whichever occurs first.
Available Now
The Umbra Core 1200mm Diffused LED Batten is available for immediate purchase, ideal for commercial and industrial indoor lighting applications.
