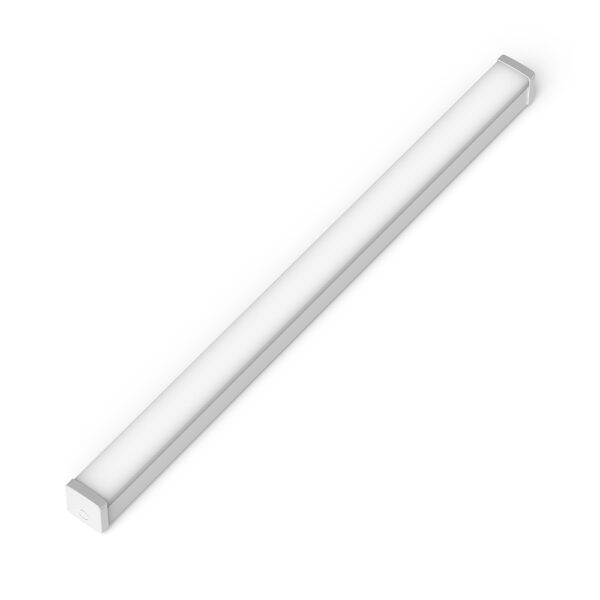

Umbra Core 1500mm Diffused Emergency LED Batten | Tri-CCT | IP20 & IK08 Rated | 124 lm/W Efficiency | by Ektor
The Umbra Core 1500mm Diffused Emergency LED Batten is designed for commercial and emergency lighting applications, featuring a Tri-CCT configuration that allows you to select between 4000K, 5000K, or 6500K color temperatures. With an impressive efficiency of up to 124 lm/W and robust IP20 and IK08 ratings, this batten is built for durability and performance, ensuring reliable illumination in any setting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Batten Light, Tri-CCT LED Batten, Surface Mount LED Batten, Emergency Lighting Batten
Technical Specifications
- Total system efficiency: up to 124 lm/W
- Power factor: 0.9
- Input voltage: 230Vac (216-253Vac range)
- Maximum wattage: 50 W
- Colour Rendering Index (CRI): >80
- LED lifetime: >60000 hours (L90B10 at 44000 hours)
- Operating temperature range: 0 to 40 °C
- IP rating: IP20
- IK rating: IK08
- Driver type: Fixed output, constant current
- Dimmable: No
- Emergency output power: 3000 mW
- Emergency duration: 90 minutes
- Emergency lumen output: 380 lm
- Switch type: Inline
- Wiring: Re-wireable terminal block (3 pin)
- Dimensions (H x L x W): 70mm x 1500mm x 60mm
- Weight: 2.5 kg
Key Features
- Tri-CCT configuration allowing selection of 4000K, 5000K, or 6500K colour temperatures
- High system efficiency up to 124 lm/W
- IP20 and IK08 rated for indoor use with impact resistance
- Powder coated steel body with polycarbonate diffuser
- Inline switch for easy operation
- Fixed output constant current driver included
- Emergency mode with 90 minutes duration and 380 lm output
- Non-dimmable
- Re-wireable terminal block wiring
- Short Term Light Modulation (PstLM) of 0.1 and Stroboscopic Visibility Measure (SVM) of 0.4 to reduce flicker and visual discomfort
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical and emergency lighting standards.
Applications
- Commercial and industrial lighting
- Emergency lighting in buildings
- Surface mounted general illumination
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime (>60000 hours) reduces waste and replacement frequency
- Complies with energy savings schemes (Ipart and REES approvals)
Warranty Information
5 years return to base warranty or 15000 operating hours, whichever occurs first.
Available Now
The Ektor Umbra Core 1500mm Diffused Emergency LED Batten is available for immediate purchase, ideal for commercial and emergency lighting applications.
