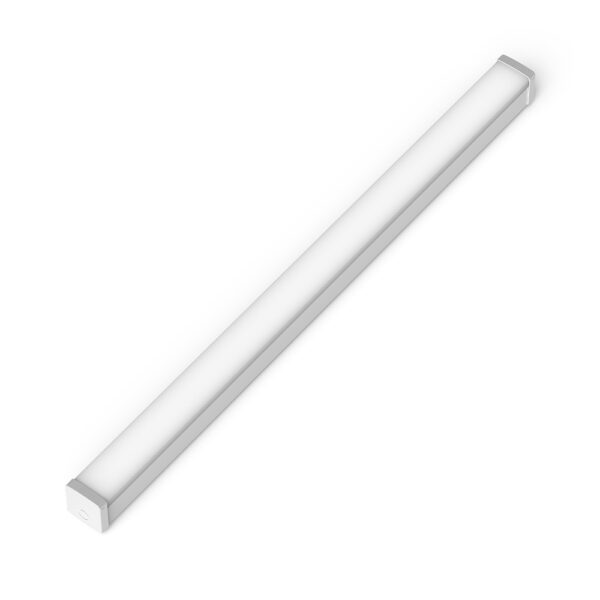

Umbra Core 1500mm Diffused LED Batten | Tri-CCT | 124 lm/W Efficiency | IP20 & IK08 Rated | by Ektor
The Umbra Core 1500mm Diffused LED Batten features a versatile Tri-CCT configuration with 4000K, 5000K, and 6500K color temperatures, making it ideal for commercial and industrial lighting. With a high total system efficiency of up to 124 lm/W and robust IP20 and IK08 ratings, this surface-mounted batten is designed for durability and performance in various indoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light, Tri-CCT LED Batten, Diffused LED Batten, Surface Mount LED Batten, Emergency LED Batten Light
Technical Specifications
- Dimensions (H x L x W): 60mm x 1500mm x 60mm
- Weight: 2.5 kg
Key Features
- Tri-CCT configuration with 4000K, 5000K, and 6500K colour temperatures
- High total system efficiency up to 124 lm/W
- IP20 and IK08 rated for indoor use with impact resistance
- Powder coated steel body with polycarbonate diffuser
- Fixed output driver with re-wireable terminal block
- Non-dimmable with high power factor of 0.9
- Long LED lifetime >60000 hours with L90B10 rating at 44000 hours
- Short Term Light Modulation (PstLM) of 0.1 and Stroboscopic Visibility Measure (SVM) of 0.4
- Emergency mode available with 90 minutes duration and 380 lm output
- Ipart and REES energy savings scheme approvals
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Commercial and industrial lighting
- Office and retail spaces
- Surface mounted indoor lighting
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long product design life of 6 years reduces waste and replacement frequency
- Compliance with energy savings schemes supports environmental sustainability
Warranty Information
5 years return to base warranty or 15000 operating hours, whichever occurs first.
Available Now
The Ektor Umbra Core 1500mm Diffused LED Batten is available for immediate purchase, ideal for commercial and industrial indoor lighting applications.
