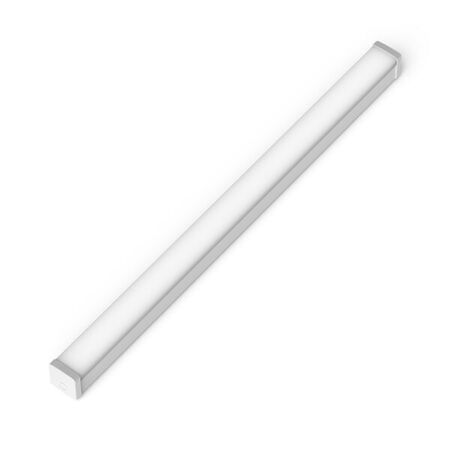

Umbra Core 600mm Diffused LED Batten | Tri-CCT | 111 lm/W Efficiency | IP20 & IK08 Rated | by Ektor
The Umbra Core 600mm Diffused LED Batten is designed for versatile indoor lighting with a Tri-CCT configuration offering 4000K, 5000K, and 6500K color temperatures. With a high efficiency of 111 lm/W and robust IP20 and IK08 ratings, this batten is perfect for commercial and industrial applications, ensuring durability and energy savings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light, Tri-CCT LED Batten, Diffused LED Batten, Surface Mount LED Batten, Emergency LED Batten Light
Technical Specifications
- Dimensions (H x L x W): 50mm x 600mm x 600mm
- Weight: 1.5 kg
Key Features
- Tri-CCT configuration with 4000K, 5000K, and 6500K colour temperatures
- High total system efficiency up to 111 lm/W
- IP20 and IK08 rated for indoor use with impact resistance
- Powder coated steel body with polycarbonate diffuser
- Fixed output driver with re-wireable terminal block
- Non-dimmable with inline switch
- Long LED lifetime >60000 hours with L90B10 rating at 44000 hours
- Short Term Light Modulation (PstLM) of 0.1 and Stroboscopic Visibility Measure (SVM) of 0.4
- Emergency mode available with 90 minutes duration and 380 lm output
- Power factor of 0.9 and input voltage range 216-253Vac
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Commercial and industrial lighting
- Office and retail spaces
- Surface mounted indoor lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Luminaires Particular Requirements
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long product and LED lifetime reduces waste and replacement frequency
- Ipart and REES approved for energy savings compliance
Warranty Information
5 years return to base warranty or 15000 operating hours, whichever occurs first.
Available Now
The Ektor Umbra Core 600mm Diffused LED Batten - Tri-CCT is available for immediate purchase, ideal for commercial and industrial indoor lighting applications.
