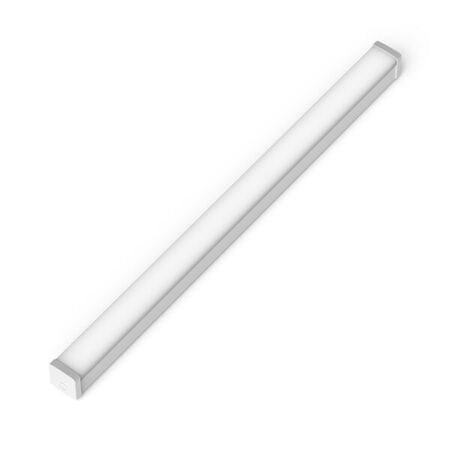

Umbra Core 600mm Diffused LED Emergency Batten | Tri-CCT | 111 lm/W Efficiency | IP20 & IK08 Rated | by Ektor

BRAND: Ektor
SKU: EV-UMBRA-CORE-II-DIFF-600-EM
$165.90 List price: $200.80
+ −
30 Days Return Delivery Options
The Umbra Core 600mm Diffused LED Emergency Batten is designed for commercial and emergency lighting, featuring a Tri-CCT configuration for 4000K, 5000K, or 6500K color temperatures. With a high efficiency of 111 lm/W and robust IP20 and IK08 ratings, this surface-mounted light ensures reliable performance in various indoor settings, making it perfect for corridors, stairwells, and general areas.

Alternatively Known As: LED Emergency Batten Light, Tri-CCT LED Batten, Surface Mounted LED Emergency Light, Diffused LED Batten

Technical Specifications
  • Dimensions (H x L x W): 60mm x 600mm x 600mm
  • Weight: 1.5 kg
Key Features
  • Tri-CCT configuration allowing selection of 4000K, 5000K, or 6500K colour temperatures
  • High total system efficiency of 111 lm/W
  • IP20 and IK08 rated for indoor use with impact resistance
  • Powder coated steel body with polycarbonate diffuser
  • Fixed output driver with re-wireable terminal block (3 pin)
  • Non-dimmable
  • Emergency mode with 90 minutes duration and 380 lm emergency output
  • 5-step MacAdam ellipse colour consistency
  • LED lifetime >60000 hours with L90B10 rating at 25°C and 40°C
  • Short Term Light Modulation (PstLM) of 0.1 and Stroboscopic Visibility Measure (SVM) of 0.4 to reduce flicker and stroboscopic effects
  • Ipart and REES energy savings scheme approvals
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Commercial and industrial lighting
  • Emergency lighting in buildings
  • Surface mounted lighting for corridors, stairwells, and general areas
Standards & Compliance
  • AS/NZS 60598.1
  • AS/NZS 60598.2.1
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption
  • Long LED lifetime reduces waste and replacement frequency
  • Compliance with energy savings schemes (Ipart and REES) supports environmental sustainability
Warranty Information

5 years return to base warranty or 15000 operating hours, whichever occurs first.

Available Now

The Umbra Core 600mm Diffused LED Emergency Batten is available for immediate purchase, ideal for commercial and emergency lighting applications.
