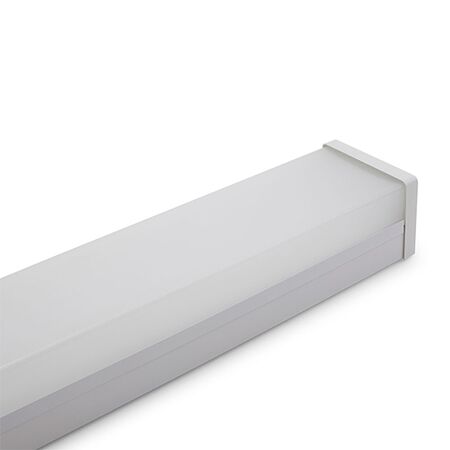

UMBRA PRO 1200mm Diffused LED Batten | 155 lm/W Efficiency | DALI DT6 Driver | IP20 Rated | by Ektor
The UMBRA PRO 1200mm Diffused LED Batten delivers exceptional lighting performance with a high efficiency of 155 lm/W, making it perfect for commercial and industrial applications. Designed for surface mounting, this batten features a durable powder-coated steel body and PMMA diffuser, ensuring longevity and reliability. With DALI DT6 driver support, it offers advanced control options, including dimming and emergency lighting capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light, Diffused LED Batten, Emergency LED Batten, DALI LED Batten, Surface Mount LED Batten
Technical Specifications
- Total system efficiency up to 155 lm/W
- Input voltage: 230Vac (216-253Vac range)
- Power factor: 0.95
- Maximum wattage: 33 W for 1200mm models
- Colour temperature: 4000 K
- Colour rendering index (CRI): >84
- LED lifetime: >102,000 hours (TM-21 report)
- IP rating: IP20
- Driver type: DALI DT6 LED driver, dimmable
- Standby power: 0.3 W
- Sensor type (optional): Microwave with DALI-2 support
- Emergency duration: 90 minutes with 350 lm output
- Body material: Powder coated steel
- Diffuser material: PMMA
- Operating temperature range: 0 to 40 °C
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 2.5 kg
Key Features
- High system efficiency up to 155 lm/W
- DALI DT6 LED driver with flicker-free dimming
- Inbuilt mains rated DALI switch input for advanced control
- Microwave sensor option with adjustable settings
- Maintained emergency mode with 90 minutes duration
- IP20 rated surface mount fitting
- Powder coated steel body with PMMA diffuser
- Long LED lifetime over 102,000 hours
- Colour rendering index greater than 84
- 3-step MacAdam ellipse colour consistency
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
- Commercial and industrial lighting
- Office and retail spaces
- Warehouses and corridors
- Emergency lighting applications
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 4268 – EMC Requirements for Lighting Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI power monitoring enables energy management and savings
Warranty Information
Standard manufacturer warranty applies; please contact Ektor for specific warranty details.
Available Now
The Ektor UMBRA PRO 1200mm Diffused LED Batten is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
