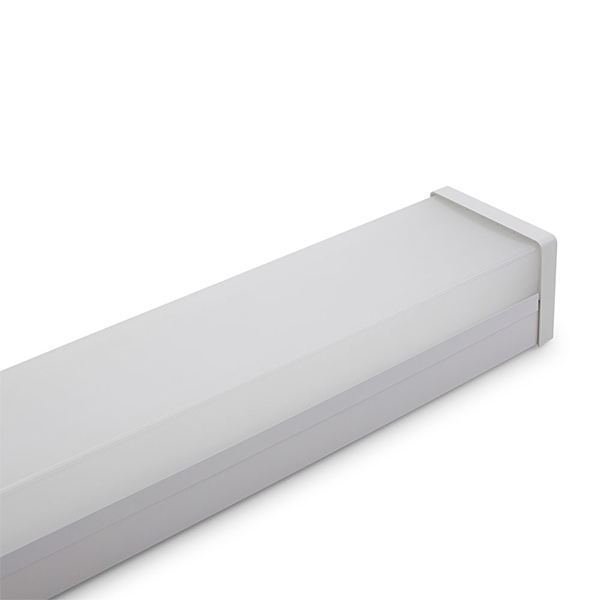

UMBRA PRO 1200mm Diffused LED Batten with Sensor | 155 lm/W Efficiency | DALI Compatible | by Ektor
The UMBRA PRO 1200mm Diffused LED Batten with Sensor offers high system efficiency of up to 155 lm/W, making it perfect for commercial and industrial lighting. Designed for surface mount installation, this robust light features a microwave sensor with a 10m detection range and is DALI compatible for seamless integration into smart lighting systems. With a long LED lifetime of over 102,000 hours, it ensures reliable performance and reduced maintenance costs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light with Sensor, Diffused LED Batten, Emergency LED Batten, DALI LED Batten Light
Technical Specifications
- Total System Efficiency: up to 155 lm/W
- IP Rating: IP20
- Body Material: Powder Coated Steel
- Diffuser Material: PMMA
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Switch Type: Inbuilt Mains Rated DALI Switch
- Power Factor: 0.95
- Maximum Wattage: 33 W
- Input Voltage: 230Vac (216-253Vac range)
- Standby Power: 0.3 W
- Colour Rendering Index (CRI): >84
- Colour Temperature: 4000 K
- LED Lifetime: >102000 hours (TM-21 report)
- Driver Type: DALI DT6 LED Driver, Dimmable
- Wiring Type: Re-wireable terminal block (6 pin)
- Sensor Type: Microwave with 10 m detection range
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 350 lm
- Emergency Control: DALI Monitored (DT1)
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 3.5 kg
Key Features
- High system efficiency up to 155 lm/W
- Inbuilt mains rated DALI switch supporting DALI-2 compliant control systems
- Microwave sensor with 10m detection range and adjustable settings
- Maintained emergency mode with 90 minutes duration and DALI monitored control
- Dimmable with flicker-free DALI DT6 LED driver
- Robust powder coated steel body with PMMA diffuser
- IP20 rated for indoor surface mount installation
- Long LED lifetime over 102,000 hours (TM-21 report)
- Power factor of 0.95 and standby power as low as 0.3 W
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
- Commercial and industrial lighting
- Office and retail spaces
- Warehouses and corridors
- Emergency lighting applications
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 4268 – EMC for Lighting Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Low standby power reduces unnecessary energy use
- DALI power monitoring enables optimized energy management
Warranty Information
Standard manufacturer warranty applies. Please contact Ektor for specific warranty details.
Available Now
The Ektor UMBRA PRO 1200mm Diffused LED Batten with Sensor is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
