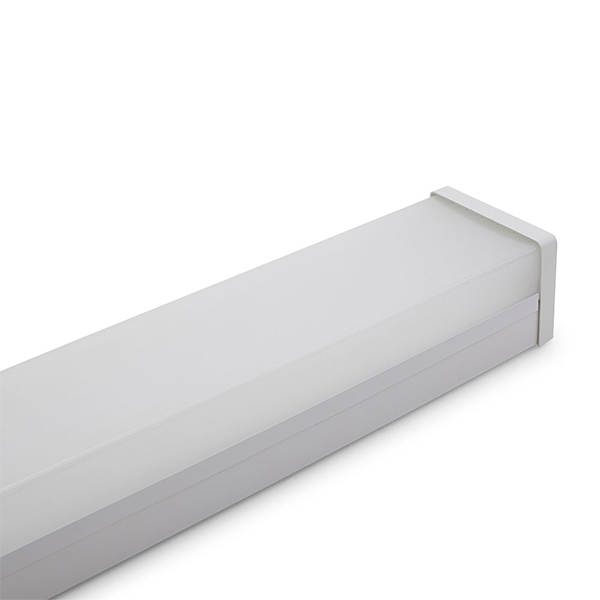

UMBRA PRO 1200mm Diffused LED Emergency Batten | 155 lm/W Efficiency | DALI DT6 Driver | IP20 Rated | by Ektor
The UMBRA PRO 1200mm Diffused LED Emergency Batten delivers exceptional performance with a high efficiency of up to 155 lm/W, making it ideal for commercial and industrial emergency lighting. Designed for surface mounting, this batten features a durable powder-coated steel body and PMMA diffuser, ensuring long-lasting use and a sleek appearance. With a maintained emergency mode lasting 90 minutes, it provides reliable illumination during power outages.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Batten Light, Emergency LED Batten, Diffused LED Emergency Light, Surface Mounted Emergency Batten
Technical Specifications
- Total System Efficiency: up to 155 lm/W
- IP Rating: IP20
- Body Material: Powder Coated Steel
- Diffuser Material: PMMA
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Switch Type: Inbuilt Mains Rated DALI Switch
- Power Factor: 0.95
- Maximum Wattage: 33 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Standby Power: 0.3 W
- Colour Rendering Index (CRI): >84
- Colour Temperature: 4000 K
- LED Lifetime: >102000 hours
- Driver Type: DALI DT6 LED Driver with DALI-2 support
- Dimmable: Yes
- Wiring Type: Re-wireable terminal block (6 pin)
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 350 lm
- Emergency Output Power: 1900 mW
- Sensor Type (optional): Microwave with DALI 2 communication
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 3.5 kg
Key Features
- High system efficiency up to 155 lm/W
- Maintained emergency mode with 90 minutes duration
- DALI DT6 LED driver with full DALI-2 support and flicker-free dimming
- Inbuilt mains rated DALI switch input for flexible control
- Microwave sensor option with adjustable settings via DALI
- Powder coated steel body with PMMA diffuser
- IP20 rated for indoor use
- Long LED lifetime over 102,000 hours
- Colour rendering index greater than 84 with 4000K colour temperature
- Power factor of 0.95 and standby power of 0.3W
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and safety standards and proper integration with DALI control systems.
Applications
- Commercial and industrial lighting
- Emergency lighting in public and private buildings
- Surface mounted lighting for corridors, stairwells, and general areas
Standards & Compliance
- AS/NZS 60598 – Luminaires
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
- AS/NZS 61347 – Lamp Control Gear
- AS/NZS 4268 – EMC for Lighting Equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI power monitoring enables energy management and optimization
Warranty Information
Standard manufacturer warranty applies. Please contact Ektor for specific warranty details.
Available Now
The Ektor UMBRA PRO 1200mm Diffused LED Emergency Batten is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
