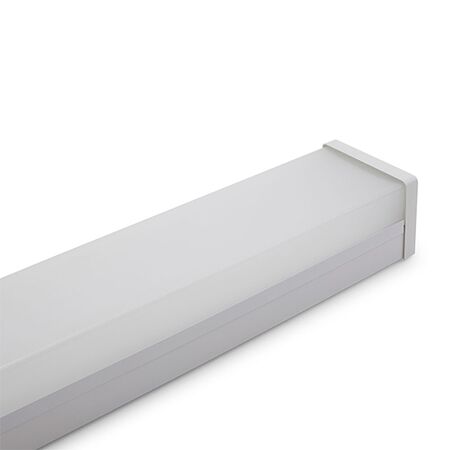

UMBRA PRO 600mm Diffused LED Batten | 148 lm/W Efficiency | DALI DT6 Driver | IP20 Rated | by Ektor

BRAND: Ektor
SKU: EV-UMBRA-PRO-DIFF-600
$263.20 List price: $318.50
+ −
30 Days Return Delivery Options
The UMBRA PRO 600mm Diffused LED Batten delivers exceptional lighting performance with an efficiency of up to 148 lm/W, making it perfect for commercial and industrial applications. Designed for surface mounting, this LED batten features a durable powder-coated steel body and PMMA diffuser, ensuring long-lasting use. With DALI DT6 driver support, it offers flicker-free dimming and is ideal for emergency lighting setups.

Alternatively Known As: LED Batten Light, Diffused LED Batten, Surface Mounted LED Batten, Emergency LED Batten, DALI LED Batten

Technical Specifications
  • Total System Efficiency: up to 148 lm/W
  • IP Rating: IP20
  • Body Material: Powder Coated Steel
  • Diffuser Material: PMMA
  • Installation Type: Surface mount
  • Working Temperature Range: 0 to 40 °C
  • Input Frequency: 50 Hz
  • Switch Type: Inbuilt Mains Rated DALI Switch
  • Power Factor: 0.95
  • Maximum Wattage: 20 W
  • Input Voltage: 230Vac (216Vac - 253Vac range)
  • Standby Power: 0.3 W
  • Colour Rendering Index (CRI): >84
  • Colour Temperature: 4000 K
  • LED Lifetime: >102,000 hours
  • Driver Type: DALI DT6 LED Driver
  • Dimmable: Yes
  • Wiring Type: Re-wireable terminal block (6 pin)
  • Emergency Duration: 90 minutes
  • Emergency Lumen Output: 350 lm
  • Sensor Type (optional): Microwave with DALI-2 support
  • Dimensions (H x L x W): 60mm x 600mm x 600mm
  • Weight: 1.5 kg
Key Features
  • High system efficiency up to 148 lm/W
  • DALI DT6 LED driver with flicker-free dimming
  • Inbuilt mains rated DALI switch input
  • IP20 rated powder coated steel body with PMMA diffuser
  • Microwave sensor option with DALI-2 support
  • Maintained emergency mode with 90 minutes duration
  • Long LED lifetime >102,000 hours
  • Power factor of 0.95
  • Standby power consumption as low as 0.3 W
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
  • Commercial and industrial lighting
  • Office and retail spaces
  • Surface mounted indoor lighting
  • Emergency lighting with maintained mode
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 60598.1
  • AS/NZS 60598.2.1
  • AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
Environmental Benefits
  • Energy-efficient LED technology reduces power consumption
  • Long LED lifetime minimizes waste and replacement frequency
  • Low standby power reduces unnecessary energy use
  • DALI control enables precise dimming and power management
Warranty Information

Standard manufacturer warranty applies; please contact Ektor for specific warranty details.

Available Now

The Ektor UMBRA PRO 600mm Diffused LED Batten is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
