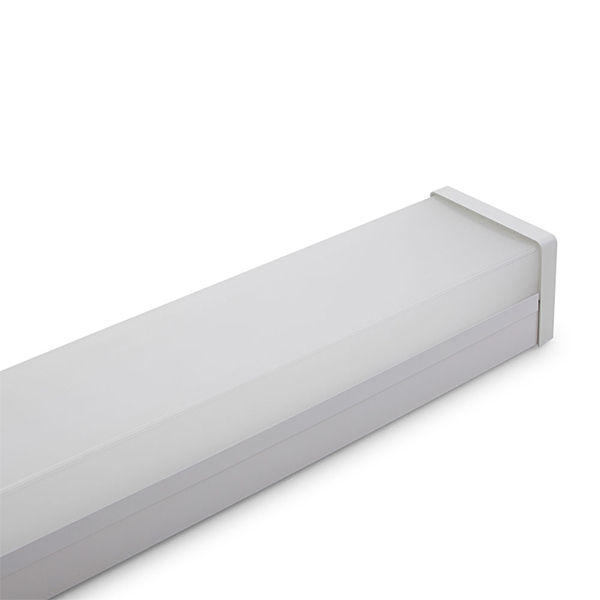

UMBRA PRO 600mm Diffused LED Batten with Sensor | 148 lm/W Efficiency | DALI Compatible | by Ektor
The UMBRA PRO 600mm Diffused LED Batten with Sensor offers high system efficiency of up to 148 lm/W, making it perfect for commercial and industrial lighting applications. Designed for easy surface mounting, this LED batten features a microwave sensor with a 10m detection range and is DALI compatible for advanced control. With a long LED lifetime of over 102,000 hours, it ensures reliable performance and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light with Sensor, Diffused LED Batten, Emergency LED Batten, Sensor LED Light
Technical Specifications
- Total System Efficiency: up to 148 lm/W
- Input Voltage: 230Vac (216-253Vac range)
- Power Factor: 0.95
- Maximum Wattage: 20 W
- Colour Rendering Index (CRI): >84
- Colour Temperature: 4000 K
- LED Lifetime: >102,000 hours (TM-21 report)
- IP Rating: IP20
- Driver Type: DALI DT6 LED Driver, dimmable
- Sensor Type: Microwave with 10 m detection range
- Emergency Duration: 90 minutes with 350 lm output
- Body Material: Powder Coated Steel
- Diffuser Material: PMMA
- Installation Type: Surface mount
- Operating Temperature Range: 0 to 40 °C
- Standby Power: 0.3 W
- Dimensions (H x L x W): 70mm x 600mm x 600mm
- Weight: 1.5 kg
Key Features
- High system efficiency up to 148 lm/W
- Inbuilt mains rated DALI switch for advanced control
- Microwave sensor with 10m detection range and DALI 2 communication
- Maintained emergency mode with 90 minutes duration and 350 lm emergency output
- Dimmable with flicker-free DALI DT6 LED driver
- IP20 rated surface mount fitting with powder coated steel body and PMMA diffuser
- Long LED lifetime over 102,000 hours (TM-21 report)
- Power factor of 0.95 and standby power of 0.3 W
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper sensor integration.
Applications
- Commercial and industrial lighting
- Office and retail spaces
- Corridors and emergency lighting
- Areas requiring sensor-controlled lighting
Standards & Compliance
- AS/NZS 60598 – Luminaires
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI power monitoring enables energy management and optimization
Warranty Information
Standard manufacturer warranty applies. Please contact Ektor for specific warranty details.
Available Now
The Ektor UMBRA PRO 600mm Diffused LED Batten with Sensor is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
