Under Tile Heating Mat System | 375W Power Output | 2.5m² Coverage | Easy Installation | by Omega

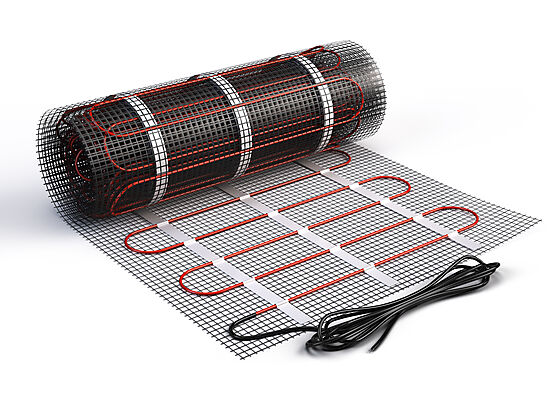

The Under Tile Heating Mat System is designed for efficient and even heating beneath tiles, featuring a powerful 375W output and a coverage area of 2.5 square meters. Ideal for both residential and commercial applications, this mat rolls out easily onto the substrate before tile installation, ensuring a quick and hassle-free setup. Enjoy energy-efficient heating that enhances indoor comfort while reducing reliance on central heating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Underfloor Heating Mat, Electric Floor Heating Mat, Tile Heating Mat, Floor Warming Mat
Technical Specifications
- Power Output: 375W
- Coverage Area: 2.5 square meters
- Heating Element: Pre-fixed to fibreglass mesh
- Installation: Roll out onto substrate prior to tile installation
- Voltage: 220-240V AC
- Dimensions (H x L x W): 2mm x 2500mm x 500mm
- Weight: 2.5 kg
Key Features
- Heating element pre-fixed to fibreglass mesh for quick and easy installation
- Provides efficient and even under tile heating
- Rolls out easily onto substrate before tile installation
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical standards and safety.
Applications
- Residential: Under tile floor heating in bathrooms, kitchens, living areas
- Commercial: Under tile heating in offices, retail spaces, hospitality venues
- General: Suitable for installation beneath ceramic, stone, or porcelain tiles
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient heating reduces overall energy consumption compared to traditional heating methods
- Provides zoned heating, minimizing wasted energy
- Improves indoor comfort, potentially reducing reliance on central heating
Warranty Information
5 years warranty covering manufacturing defects and performance.
Available Now
The Omega HWHHM375 Under Tile Heating Mat System is available for immediate purchase, ideal for residential and commercial under tile heating applications.
