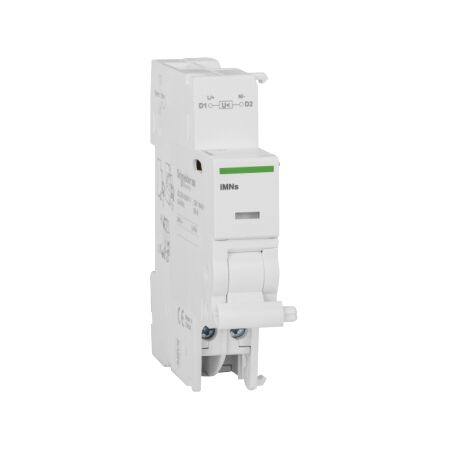

Undervoltage Release 220-240V AC | Delayed Control | DIN Rail Mount by Clipsal

BRAND: Clipsal
SKU: A9A26963
$133.60 List price: $200.50
+
Undervoltage release with 220-240V AC control and delayed control type—ideal for residential and small commercial applications. Built for enhanced safety, compatible with Acti9 circuit breakers, and easy DIN rail mounting.

Product Name/Title: Acti9, Undervoltage release, iMNs, voltage release, 220...240 V AC

Brand: Clipsal

SKU: A9A26963

Alternatively Known As: Acti9 iMNs, Undervoltage Release, Circuit Protection Device

Technical Specifications
  • Control circuit voltage: 220...240 V AC 50/60 Hz
  • Mounting mode: Clip-on
  • Mounting support: DIN rail
  • Tropicalisation: 2 conforming to EN/IEC 60947-5-1
  • Relative humidity: 95% at 55 °C
  • Ambient air temperature for operation: -35...70 °C
  • Ambient air temperature for storage: -40...85 °C
  • Dimensions (H x L x W): 90mm x 100mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Delayed control type for enhanced safety.
  • Compatible with various Acti9 circuit breakers.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments
  • Commercial: Small commercial applications
Standards & Compliance
  • Complies with EN/IEC 60947-1 standards.
Environmental Benefits
  • Complies with EN/IEC 60947-1 standards for safety and performance.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Acti9 Undervoltage Release iMNs is available now for immediate purchase. Ideal for residential and small commercial applications.

A9A26963 (A9A26963, 213 Kb) [Download]
