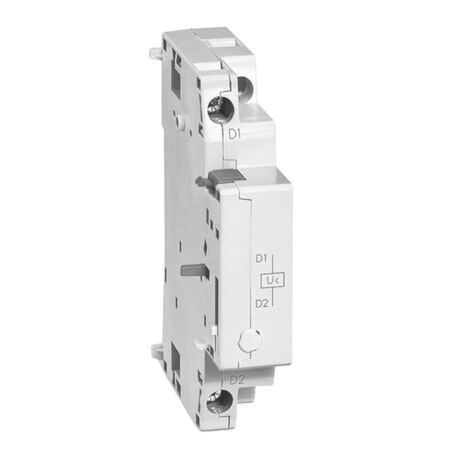

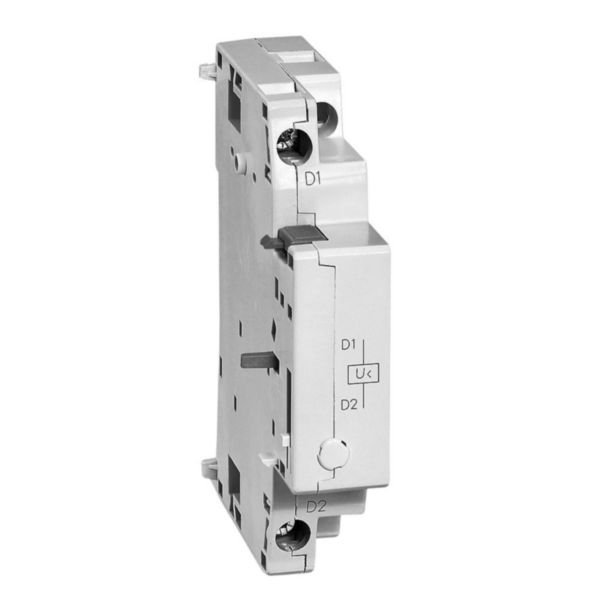

Undervoltage Release 230V AC for MPX3 | Motor Safety Switch | Screw Connection | No Delay | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 417422
$103.00 List price: $128.40
1 EA ($103.00 per EA)
+ −
30 Days Return Delivery Options
The Undervoltage Release 230V AC for MPX3 is designed for motor safety switch applications, ensuring reliable undervoltage protection. With a rated control supply voltage of 195.5-253 V AC and a screw connection type, it provides immediate operation without delay. Ideal for industrial and tertiary electrical installations, this device helps prevent equipment damage and extends lifespan.
Technical Specifications
  • Rated voltage: 230V AC (50/60 Hz)
  • Rated control supply voltage AC 50 Hz: 195.5-253 V
  • Rated control supply voltage AC 60 Hz: 195.5-253 V
  • Voltage type for actuating: AC
  • Type of electric connection: Screw connection
  • Delayed operation: No
  • Suitable for motor safety switch: Yes
  • Not suitable for power circuit breaker, off-load switch, or overload relay
  • Dimensions (H x L x W): 80mm x 60mm x 40mm
  • Weight: 0.3 kg
Key Features
  • Rated control supply voltage: 195.5-253 V AC (50/60 Hz)
  • Side mounting on the right side of the breaker
  • Screw connection type for electrical connection
  • Designed specifically for motor safety switch applications
  • No delay in operation
Professional Installation Requirements
  • Installation should be performed by a qualified electrician familiar with industrial control equipment and safety standards.
Applications
  • Tertiary and industrial electrical installations
  • Motor safety switch applications requiring undervoltage protection
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Helps prevent electrical equipment damage by ensuring proper voltage levels, reducing waste and extending equipment life
Warranty Information

Standard Legrand warranty applies, typically 1 year against manufacturing defects.

Available Now

Legrand Undervoltage Release 230V AC for MPX3 is available for immediate purchase, ideal for industrial and tertiary electrical control applications.

Technical Guide: Protection and control of 3-phase asynchronous motors (EXB19046_TG_3phase-asynchronous-motors_EN.pdf, 5,963 Kb) [Download]

ex223001_0271 (ex223001_0271.pdf, 100 Kb) [Download]
