Undervoltage Release 2NO | 230V AC | Side Mounting | Screw Connection | @EA of 1 | by Legrand
The Undervoltage Release 2NO is designed for 230V AC applications, featuring two normally open contacts and a side mounting option for easy installation. Ideal for tertiary and industrial electrical installations, this device ensures motor safety and reliable control in switchboards and power cabinets, helping to prevent equipment damage and extend lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

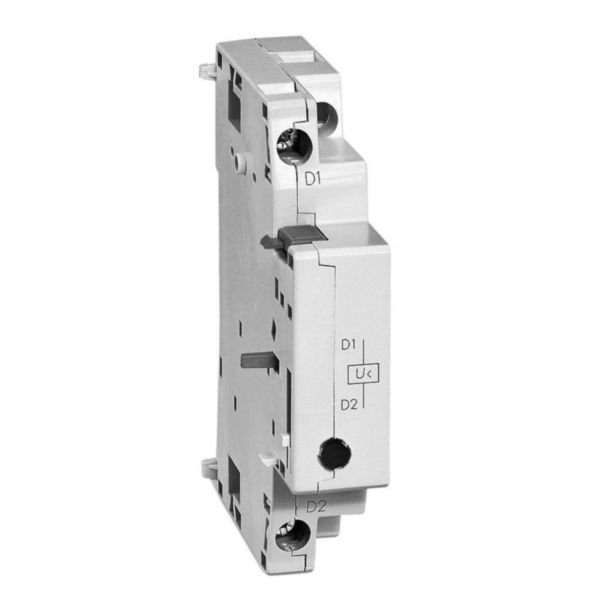

Product Name/Title: Undervoltage Release 2NO | 230V AC | Side Mounting | Screw Connection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417432
Alternatively Known As: Undervoltage Release 230V AC for MPX3, Legrand MPX3 Undervoltage Trip, Auxiliary Contact Undervoltage Release
Technical Specifications
- Rated control supply voltage AC 50/60 Hz: 195.5-253 V
- Voltage type for actuating: AC
- Number of normally open contacts: 2
- Number of normally closed contacts: 0
- Number of change-over contacts: 0
- Type of electric connection: Screw connection
- Delayed operation: No
- Suitable for motor safety switch: Yes
- Not suitable for power circuit breaker, off-load switch, or overload relay
- Mounting: Side mounting on right side of breaker
- Dimensions (H x L x W): 60mm x 70mm x 40mm
- Weight: 0.2 kg
Key Features
- Rated control supply voltage: 195.5-253 V AC (50/60 Hz)
- 2 normally open (NO) auxiliary contacts
- Side mounting on the right side of the breaker
- Not compatible with MPX3 32S
- Screw connection type for electric connection
- Designed specifically for tertiary and industrial installations
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure correct mounting and electrical connections.
Applications
- Tertiary and industrial electrical installations
- Motor safety switch applications
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps prevent electrical equipment damage by ensuring proper voltage levels, reducing waste and extending equipment life
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Undervoltage Release 2NO built-in 230V AC for MPX3 is available for immediate purchase, ideal for tertiary and industrial electrical control applications.
