Undervoltage Release 2NO Built-in 400V AC for MPX3 | 340-440V Control Voltage | Motor Safety | @EA of 1 | by Legrand

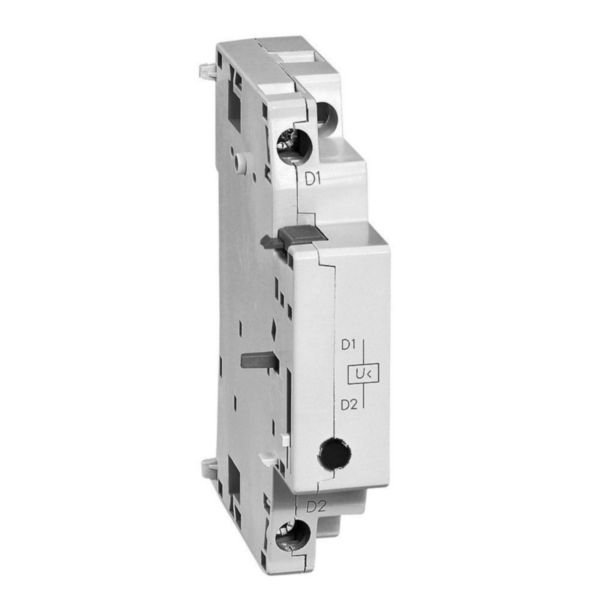

The Undervoltage Release 2NO built-in 400V AC for MPX3 is designed for motor safety applications, featuring a rated control supply voltage of 340-440V AC. Ideal for tertiary and industrial electrical installations, this module ensures reliable operation with its two normally open contacts and screw connection type. Enhance your electrical safety and compliance with this essential component for switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Undervoltage Release 2NO Built-in 400V AC for MPX3 | 340-440V Control Voltage | Motor Safety | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417433
Alternatively Known As: Undervoltage Release Module, UVR 2NO 400V AC, Motor Safety Undervoltage Release
Technical Specifications
- Rated control supply voltage AC 50/60 Hz: 340-440 V
- Voltage type for actuating: AC
- Number of normally open contacts: 2
- Number of normally closed contacts: 0
- Number of change-over contacts: 0
- Type of electric connection: Screw connection
- Delayed operation: No
- Suitable for motor safety switch: Yes
- Not suitable for power circuit breaker, off-load switch, or overload relay
- Dimensions (H x L x W): 80mm x 40mm x 50mm
- Weight: 0.3 kg
Key Features
- Rated control supply voltage: 340-440 V AC (50/60 Hz)
- 2 Normally Open (NO) auxiliary contacts
- Side mounting on the right side of the breaker
- Compatible with MPX3 except MPX3 32S
- Screw connection type for electrical connection
- Designed specifically for tertiary and industrial installations
Professional Installation Requirements
- Installation must be performed by a qualified electrician following Legrand installation instructions to ensure safety and compliance.
Applications
- Tertiary and industrial electrical installations
- Motor safety switch applications
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances electrical safety reducing risk of equipment damage and energy waste
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Undervoltage Release 2NO Built-in 400V AC for MPX3 is available for immediate purchase, ideal for industrial and tertiary electrical control applications.
