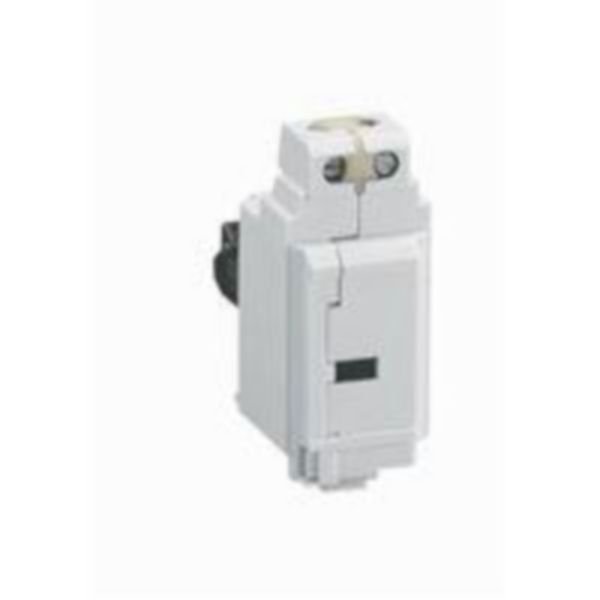

Undervoltage Release for DPX³ | 24 V AC/DC | Remote Tripping | Screw Connection | @EA of 1 | by Legrand
The Undervoltage Release for DPX³ operates at 24 V AC/DC, allowing for remote tripping of DPX³ 160 and 250 circuit breakers. Designed for power circuit breakers, off-load switches, and motor safety switches, it ensures immediate operation without delay, enhancing safety and control in industrial and commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Undervoltage Release for DPX³ | 24 V AC/DC | Remote Tripping | Screw Connection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 421019
Alternatively Known As: DPX3 Undervoltage Release, UVR 24V AC/DC, Circuit Breaker Remote Trip Module
Technical Specifications
- Rated control supply voltage AC 50 Hz: 24 V
- Rated control supply voltage AC 60 Hz: 24 V
- Rated control supply voltage DC: 24 V
- Voltage type for actuating: AC/DC
- Type of electric connection: Screw connection
- Number of normally open contacts: 0
- Number of normally closed contacts: 0
- Number of change-over contacts: 0
- Delayed operation: No
- Suitable for power circuit breaker, off-load switch, motor safety switch, overload relay
- Dimensions (H x L x W): 80mm x 60mm x 50mm
- Weight: 0.3 kg
Key Features
- Allows remote tripping of DPX³ 160 and 250 circuit breakers
- Operates at 24 V AC/DC control supply voltage
- Screw connection type for secure electrical connection
- Compatible with power circuit breakers, off-load switches, motor safety switches, and overload relays
- No delay in operation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DPX³ circuit breakers.
Applications
- Used with DPX³ 160 and 250 circuit breakers
- Suitable for power circuit breakers, off-load switches, motor safety switches, and overload relays
- Remote tripping of DPX³ circuit breakers in industrial and commercial electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of equipment damage and energy waste
- Supports efficient electrical system management and fault prevention
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Undervoltage Release for DPX³ 24 V AC/DC is available for immediate purchase, ideal for enhancing safety and control in switchboards and power cabinets.
