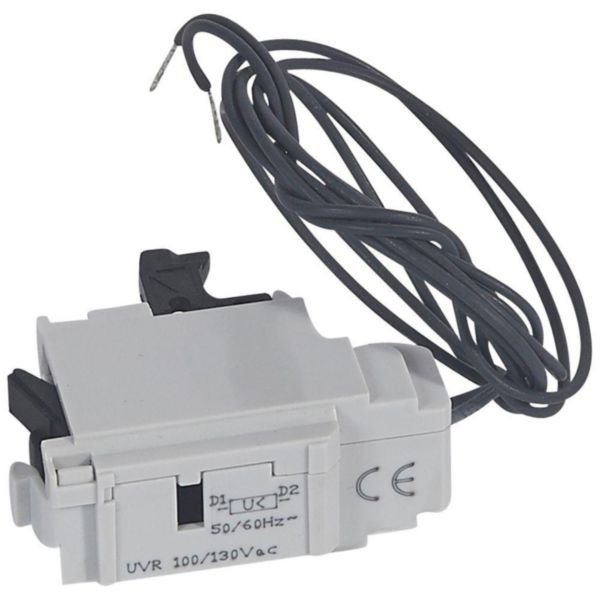

Undervoltage Release for DRX | 110-130 V AC/DC | Fixed Thermal & Magnetic Protection | by Legrand
The Undervoltage Release for DRX is designed for reliable protection in low-voltage electrical lines, operating at 110-130 V AC/DC. Ideal for thermal magnetic MCCBs from 125 to 250 A, it ensures safety and compliance with IEC 60947-2 standards. This module is perfect for applications requiring switching, control, and isolation, making it a must-have for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Undervoltage Release for DRX | 110-130 V AC/DC | Fixed Thermal & Magnetic Protection | by Legrand
Brand: Legrand
SKU: 027163
Alternatively Known As: Undervoltage trip, UV release, Undervoltage release module for circuit breaker, DRX undervoltage release
Technical Specifications
- Rated control supply voltage AC 50 Hz: 110-130 V
- Rated control supply voltage AC 60 Hz: 110-130 V
- Rated control supply voltage DC: 110-130 V
- Voltage type for actuating: AC/DC
- Number of normally open contacts: 0
- Number of normally closed contacts: 0
- Number of change-over contacts: 0
- Delayed operation: No
- Suitable for power circuit breaker, off-load switch, motor safety switch, overload relay
- Dimensions (H x L x W): 80mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Designed for DRX 250 thermal magnetic MCCBs from 125 to 250 A
- Can be fitted with auxiliaries
- Supplied with M8 terminals, fixing screws, and insulating shields
- Fixed thermal and magnetic protection
- Conforms to IEC 60947-2
- Rated control supply voltage: 110-130 V AC/DC at 50/60 Hz
- Suitable for power circuit breakers, off-load switches, motor safety switches, and overload relays
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper integration with existing electrical systems.
Applications
- Switching, control, isolation, and protection of low-voltage electrical lines
- Suitable for use with thermal magnetic MCCBs from 125 to 250 A
- Compatible with power circuit breakers, off-load switches, motor safety switches, and overload relays
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety and reliability, reducing risk of electrical faults and associated environmental hazards
- Supports efficient electrical system operation, potentially reducing energy waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.
Available Now
Legrand Undervoltage Release for DRX 100/130 V~ is available for immediate purchase, ideal for electrical switchboards and power cabinet applications requiring reliable undervoltage protection.
