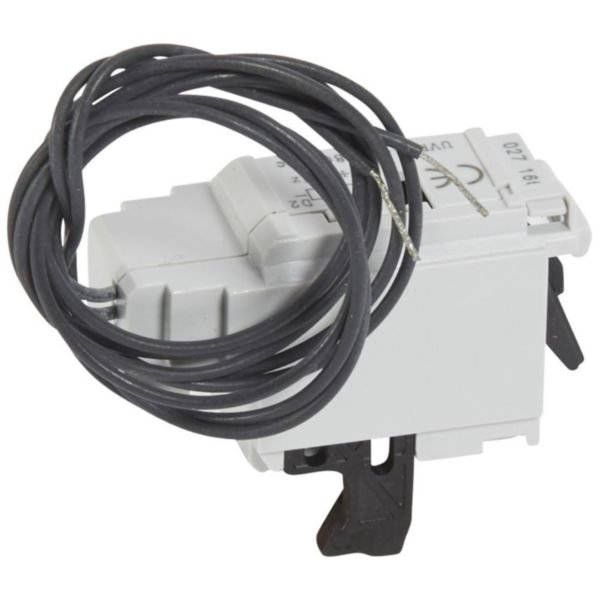

Undervoltage Release for DRX | 110 V DC | No Delay Operation | M8 Terminals Included | @EA of 1 | by Legrand
The Undervoltage Release for DRX is designed for reliable circuit protection, providing an undervoltage release function at 110 V DC. Ideal for thermal magnetic MCCBs from 125 to 250 A, it ensures no delay in operation and includes M8 terminals, fixing screws, and insulating shields. Perfect for industrial and commercial applications, this module enhances electrical safety and supports energy-efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Undervoltage Release for DRX | 110 V DC | No Delay Operation | M8 Terminals Included | @EA of 1 | by Legrand
Brand: Legrand
SKU: 027168
Alternatively Known As: Undervoltage trip, UV release, Undervoltage release module for circuit breaker
Technical Specifications
- Rated control supply voltage: 110 V DC
- Voltage type for actuating: DC
- Number of normally open contacts: 0
- Number of normally closed contacts: 0
- Number of change-over contacts: 0
- Suitable for power circuit breaker, off-load switch, motor safety switch, and overload relay
- No delay in operation
- Includes M8 terminals, fixing screws, and insulating shields
- Dimensions (H x L x W): 80mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Designed for DRX 250 thermal magnetic MCCBs (125 to 250 A)
- Provides undervoltage release function at 110 V DC
- Includes M8 terminals, fixing screws, and insulating shields
- Conforms to IEC 60947-2 standards
- No delay in operation
- Suitable for switching, control, isolation, and protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper integration with MCCBs.
Applications
- Control and protection of low-voltage electrical lines
- Suitable for use with thermal magnetic MCCBs from 125 to 250 A
- Compatible with power circuit breakers, off-load switches, motor safety switches, and overload relays
Standards & Compliance
- Complies with AS/NZS 60947-2 – Low-voltage switchgear and controlgear
Environmental Benefits
- Enhances electrical safety and reduces risk of equipment damage
- Supports energy-efficient operation by ensuring proper circuit protection
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Undervoltage Release for DRX 110 V DC is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
