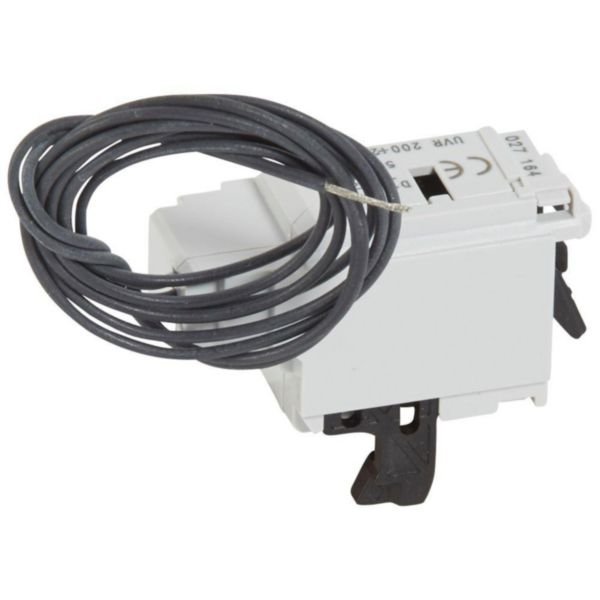

Undervoltage Release for DRX 200 277 V~ Fixed Thermal & Magnetic Protection Legrand

BRAND: Legrand
SKU: 27164
$419.10 List price: $522.20
1 EA ($419.10 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
The Undervoltage Release for DRX is designed for reliable protection and control of low-voltage electrical lines, operating at 200 277 V~.
Technical Specifications
  • Rated control supply voltage AC 50 Hz: 200-240 V
  • Rated control supply voltage AC 60 Hz: 200-240 V
  • Rated control supply voltage DC: 200-240 V
  • Voltage type for actuating: AC/DC
  • Number of normally open contacts: 0
  • Number of normally closed contacts: 0
  • Number of change-over contacts: 0
  • Delayed operation: No
  • Suitable for power circuit breaker, off-load switch, motor safety switch, overload relay
  • Dimensions (H x L x W): 80mm x 70mm x 50mm
  • Weight: 0.3 kg
Key Features
  • Designed for DRX 250 thermal magnetic MCCBs from 125 to 250 A
  • Suitable for switching, control, isolation, and protection of low-voltage electrical lines
  • Can be fitted with auxiliaries
  • Supplied with M8 terminals, fixing screws, and insulating shields
  • Fixed thermal and magnetic protection
  • Conforms to IEC 60947-2
  • Suitable for power circuit breaker, off-load switch, motor safety switch, and overload relay
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DRX MCCBs.
Applications
  • Switchboards and power cabinets
  • Circuit breaker and moulded case switch control
  • Low-voltage electrical line protection and control
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Enhances electrical safety reducing risk of faults and electrical fires
  • Supports efficient electrical system operation minimizing energy waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand warranty policy for details.

Available Now

Legrand Undervoltage Release for DRX 200/277 V~ is available for immediate purchase, ideal for use in switchboards and power cabinets for electrical protection and control.
