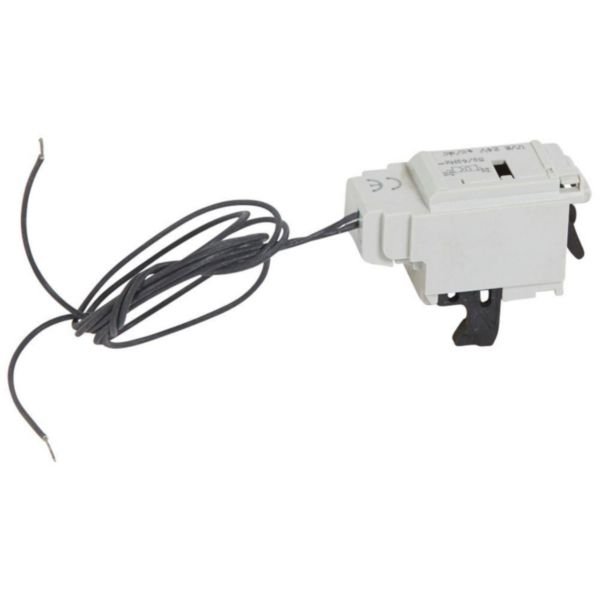

Undervoltage Release for DRX | 24V AC/DC | Designed for MCCBs | Includes M8 Terminals | @EA of 1 | by Legrand
The Undervoltage Release for DRX operates at 24V AC/DC, making it ideal for switching, control, and protection of low-voltage electrical lines. Designed specifically for DRX 250 thermal magnetic MCCBs, it enhances electrical safety and supports efficient system operation. This module is perfect for qualified electricians looking to integrate with power circuit breakers and motor safety switches.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Undervoltage Release for DRX | 24V AC/DC | Designed for MCCBs | Includes M8 Terminals | @EA of 1 | by Legrand
Brand: Legrand
SKU: 027161
Alternatively Known As: Undervoltage Trip Release, UVR for DRX, 24V Undervoltage Release Module
Technical Specifications
- Rated control supply voltage AC 50 Hz: 24 V
- Rated control supply voltage AC 60 Hz: 24 V
- Rated control supply voltage DC: 24 V
- Voltage type for actuating: AC/DC
- Number of normally open contacts: 0
- Number of normally closed contacts: 0
- Number of change-over contacts: 0
- Delayed operation: No
- Suitable for power circuit breaker, off-load switch, motor safety switch, overload relay
- Dimensions (H x L x W): 80mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Designed for DRX 250 thermal magnetic MCCBs
- Operates at 24 V AC/DC control supply voltage
- Can be fitted with auxiliaries
- Includes M8 terminals, fixing screws, and insulating shields
- Conforms to IEC 60947-2 standards
- Suitable for power circuit breakers, off-load switches, motor safety switches, and overload relays
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper integration with MCCBs.
Applications
- Switching, control, isolation, and protection of low-voltage electrical lines
- Suitable for use with thermal magnetic MCCBs from 125 to 250 A
- Compatible with power circuit breakers, off-load switches, motor safety switches, and overload relays
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances electrical safety reducing risk of faults and electrical fires
- Supports efficient electrical system operation minimizing energy waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.
Available Now
Legrand Undervoltage Release for DRX 24 V AC/DC is available for immediate purchase, ideal for electrical switchboards and power cabinet applications.
