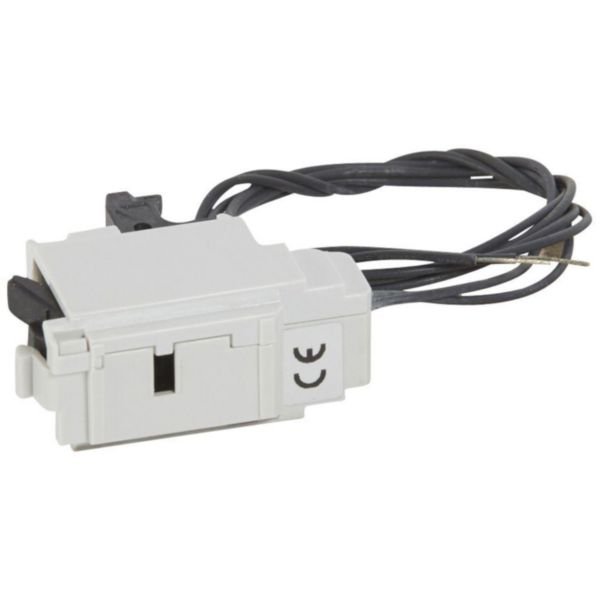

Undervoltage Release for DRX | 380/480 VAC | IEC 60947-2 Compliant | M8 Terminals Included | @EA of 1 | by Legrand
The Undervoltage Release for DRX is designed for reliable protection of low-voltage electrical lines, providing undervoltage release functionality at 380/480 VAC. Ideal for use with DRX thermal magnetic MCCBs from 125 to 250 A, this module ensures compliance with IEC 60947-2 standards and comes with M8 terminals and fixing screws for easy installation by qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Undervoltage Release for DRX | 380/480 VAC | IEC 60947-2 Compliant | M8 Terminals Included | @EA of 1 | by Legrand
Brand: Legrand
SKU: 027165
Alternatively Known As: Undervoltage trip, UV release, Undervoltage release module for circuit breaker, DRX undervoltage release
Technical Specifications
- Rated control supply voltage AC 50 Hz: 380-415 V
- Rated control supply voltage AC 60 Hz: 380-415 V
- Rated control supply voltage DC: 380-415 V
- Voltage type for actuating: AC
- Number of normally open contacts: 0
- Number of normally closed contacts: 0
- Number of change-over contacts: 0
- Delayed operation: No
- Suitable for power circuit breaker, off-load switch, motor safety switch, overload relay
- Dimensions (H x L x W): 80mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Designed for DRX 250 thermal magnetic MCCBs (125 to 250 A)
- Provides undervoltage release functionality at 380/480 VAC
- Conforms to IEC 60947-2 standards
- Supplied with M8 terminals, fixing screws, and insulating shields
- Suitable for switching, control, isolation, and protection of electrical lines
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DRX MCCBs.
Applications
- Control and protection of low-voltage electrical lines
- Use with DRX thermal magnetic MCCBs from 125 to 250 A
- Suitable for power circuit breakers, off-load switches, motor safety switches, and overload relays
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances electrical safety reducing risk of electrical faults and damage
- Supports energy-efficient operation by ensuring proper circuit protection
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Undervoltage Release for DRX 380/480 V~ is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
