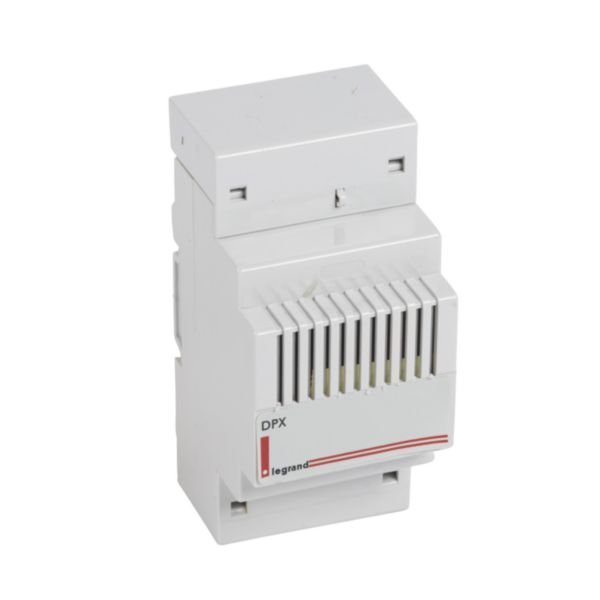

Undervoltage Release for DRX/DPX³ | 400 V AC/DC | Remote Tripping | Screw Connection | @Each of 1 | by Legrand
The undervoltage release for DRX/DPX³ is designed for reliable remote tripping of circuit breakers at 400 V AC/DC. Ideal for switchboards and power cabinets, this device ensures safety and control, with a power consumption of just 5 VA and a screw connection type. Perfect for qualified electricians looking to enhance system longevity and prevent electrical faults.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Undervoltage Release for DRX/DPX³ | 400 V AC/DC | Remote Tripping | Screw Connection | @Each of 1 | by Legrand
Brand: Legrand
SKU: 422249
Alternatively Known As: Undervoltage trip release, UVR 400V, DPX3 undervoltage release, remote trip unit
Technical Specifications
- Rated control supply voltage AC 50 Hz: 400 V
- Rated control supply voltage AC 60 Hz: 400 V
- Rated control supply voltage DC: 400 V
- Voltage type for actuating: AC
- Power consumption: 5 VA
- Type of electric connection: Screw connection
- Number of normally open contacts: 0
- Number of normally closed contacts: 0
- Number of change-over contacts: 0
- Delayed operation: No
- Suitable for power circuit breaker, off-load switch, motor safety switch, overload relay
- Dimensions (H x L x W): 100mm x 80mm x 50mm
- Weight: 0.5 kg
Key Features
- Allows remote tripping of DPX³ 630 and 1600 circuit breakers
- Rated control supply voltage: 400 V AC 50/60 Hz and 400 V DC
- Power consumption: 5 VA
- Screw connection type
- No delayed operation
- Compatible with power circuit breakers, off-load switches, motor safety switches, and overload relays
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DPX³ circuit breakers.
Applications
- Used in switchboards and power cabinets
- Compatible with DPX³ 630 and 1600 circuit breakers
- Suitable for motor safety switches, overload relays, and off-load switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical faults and damage, reducing waste and improving system longevity
Warranty Information
Standard Legrand warranty applies, typically 1-2 years against manufacturing defects.
Available Now
Legrand undervoltage releases for DRX/DPX³ 400 V AC/DC are available for immediate purchase, ideal for enhancing safety and control in switchboards and power cabinets.
