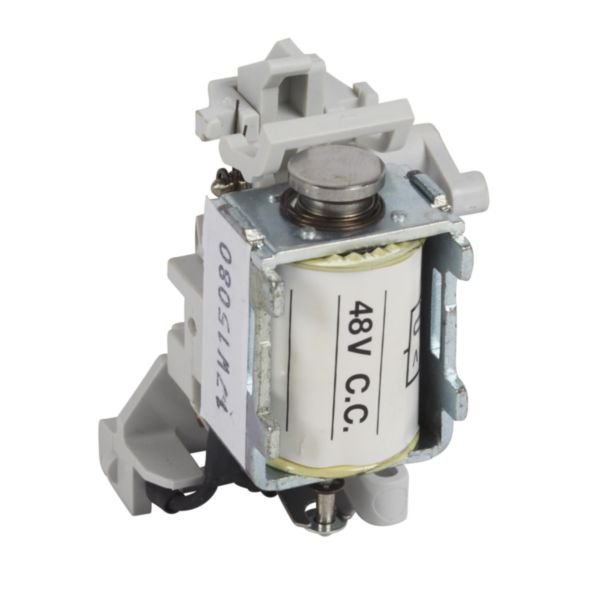

Undervoltage Release for DRX/DPX³ | 48 V DC | Low Power Consumption | Remote Tripping Capability | @EA of 1 | by Legrand
The Undervoltage Release for DRX/DPX³ operates at 48 V DC, allowing for remote tripping of circuit breakers like the DPX³ 630 and 1600. With a low power consumption of just 5 VA and a secure screw connection, it's perfect for power circuit breakers, off-load switches, and motor safety switches. Ideal for professional installations, this module enhances electrical safety and system management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Undervoltage Release for DRX/DPX³ | 48 V DC | Low Power Consumption | Remote Tripping Capability | @EA of 1 | by Legrand
Brand: Legrand
SKU: 422246
Alternatively Known As: Undervoltage Release Module, UVR 48V DC, Remote Trip Release for Circuit Breaker
Technical Specifications
- Rated control supply voltage AC 50 Hz: 48 V
- Rated control supply voltage AC 60 Hz: 48 V
- Rated control supply voltage DC: 48 V
- Voltage type for actuating: DC
- Power consumption: 5 VA
- Type of electric connection: Screw connection
- Number of normally open contacts: 0
- Number of normally closed contacts: 0
- Number of change-over contacts: 0
- Delayed operation: No
- Suitable for power circuit breaker, off-load switch, motor safety switch, overload relay
- Dimensions (H x L x W): 90mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Allows remote tripping of DPX³ 630 and 1600 circuit breakers
- Low power consumption of 5 VA
- Operates at 48 V DC
- Screw connection type for secure electrical connection
- Compatible with power circuit breakers, off-load switches, motor safety switches, and overload relays
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with circuit breakers.
Applications
- Remote tripping of DPX³ 630 and 1600 circuit breakers
- Use with power circuit breakers, off-load switches, motor safety switches, and overload relays
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps improve electrical safety and reduce risk of equipment damage
- Supports efficient electrical system management to prevent energy waste
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Undervoltage Releases for DRX/DPX³ - 48 V DC are available for immediate purchase, ideal for electrical switchboards and power cabinet applications requiring remote tripping functionality.
