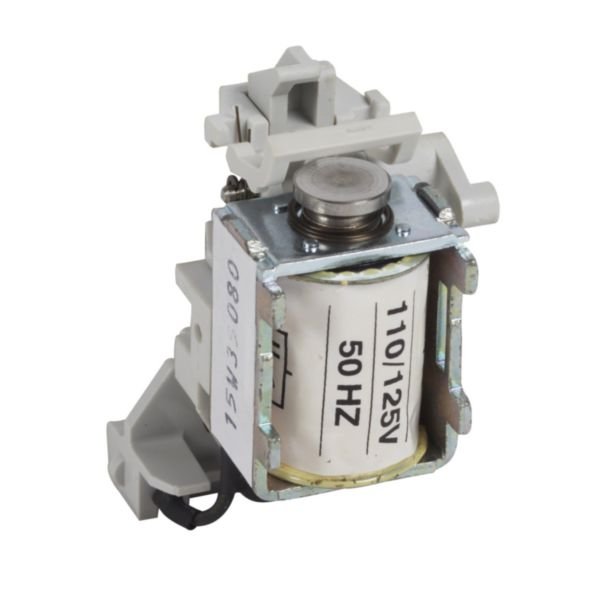

Undervoltage Releases for DRX/DPX³ | 110-125 V AC/DC | Low Power Consumption | Remote Tripping Capability | @EA of 1 | by Legrand
Undervoltage releases for DRX/DPX³ are designed for remote tripping of circuit breakers, operating at a rated control supply voltage of 110-125 V AC and DC. With a low power consumption of just 5 VA, these devices are perfect for enhancing electrical safety in power circuit breakers, off-load switches, and motor safety switches. Ideal for professional installation, they ensure compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Undervoltage Releases for DRX/DPX³ | 110-125 V AC/DC | Low Power Consumption | Remote Tripping Capability | @EA of 1 | by Legrand
Brand: Legrand
SKU: 422247
Alternatively Known As: Undervoltage trip release, UVR 110V, DPX3 undervoltage release, circuit breaker remote trip device
Technical Specifications
- Rated control supply voltage AC 50 Hz: 110-125 V
- Rated control supply voltage AC 60 Hz: 110-125 V
- Rated control supply voltage DC: 110-125 V
- Voltage type for actuating: DC
- Type of electric connection: Screw connection
- Number of normally open contacts: 0
- Number of normally closed contacts: 0
- Number of change-over contacts: 0
- Delayed operation: No
- Power consumption: 5 VA
- Suitable for power circuit breaker, off-load switch, motor safety switch, overload relay
- Dimensions (H x L x W): 100mm x 80mm x 50mm
- Weight: 0.5 kg
Key Features
- Allows remote tripping of DPX³ 630 and 1600 circuit breakers
- Low power consumption of 5 VA
- Rated control supply voltage: 110-125 V AC and DC
- Screw connection type for electrical connection
- Compatible with power circuit breakers, off-load switches, motor safety switches, and overload relays
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with circuit breakers.
Applications
- Remote tripping of DPX³ 630 and 1600 circuit breakers
- Use with power circuit breakers, off-load switches, motor safety switches, and overload relays
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps improve electrical safety and reduce risk of equipment damage
- Supports efficient electrical system management and protection
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Undervoltage Releases for DRX/DPX³ 110 V~ and = are available for immediate purchase, ideal for electrical switchboards and power cabinet applications.
